FULL DESCRIPTION of Item 42961

in Linear Stages
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 42961

Offered 2 Offered at $ 475.00 (each)

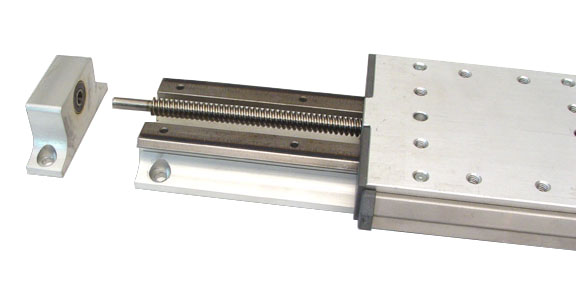

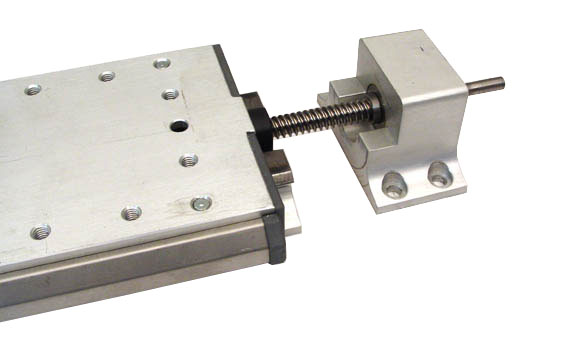

BISHOP-WISECARVER LINEAR ACTUATOR, 10" TRAVEL

Linear Motion Actuator

Bishop-Wisecarver LP-2W-BS-CEN



BISHOP-WISECARVER LINEAR ACTUATOR, 10" TRAVEL
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price $ 475.00 (each)
Number of Units 2
Manufacturer Bishop-Wisecarver
Model LP-2W-BS-CEN
Configuration Single Axis
Total Travel, XYZ X: 10.00  in  (254 mm)
Mechanical Drive System Ballscrew
Stage Bearing Type Linear Bearing
Screw Pitch 5 turns per inch
Stage Length 5.00  in  (127 mm)
Stage Width 3.50  in  (89 mm)
Table Length 5.00  in  (127.00 mm)
Table Width 3.50  in  (88.90 mm)
Tabletop Height 1.25  in  (31.75 mm)
Maximum Payload 12.00  lb  (5.44 kg)
Exterior Dimensions
  Width 4.500  in  (11.4 cm)
  Depth 19.000  in  (48.3 cm)
  Height 1.250  in  (3.2 cm)
Weight 13  lb  (6 kg)

OFFERED BY:
(click name below to visit its website directly)
Capovani Brothers Inc.
Scotia , New York
1.518.346.8347

Shipping & Handling:

Unless otherwise stated, all items will be fully tested and sold with our standard ninety day warranty, which is described in our terms and conditions.
Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.
Domestic and International shipments: Ex Works, Scotia, NY. All freight cost estimates are for dock to dock service only.
Any additional services, i.e. lift-gate, inside or residential delivery, must be requested at the time of sale and will be billed accordingly.
CBI is not responsible for any damage incurred during shipment. It is the buyer's responsibility to inspect packages for damage and to note any damage on bill of lading.
Please feel free to call us with any questions. (Phone: 518.346.8347, 844-833-8347, Fax: 518.381.9578).
