FULL DESCRIPTION of Item 2341

in Linear Stages
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 2341

Offered 1 Offered at Best Price

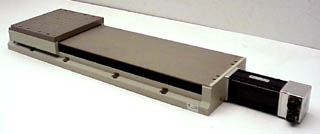

AEROTECH LINEAR BALL SCREW STAGE, 24" TRAVEL

Linear Super-Precision Ball Screw Stage

Aerotech ATS50060-M-02P

AEROTECH LINEAR BALL SCREW STAGE, 24" TRAVEL

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Aerotech
Model ATS50060-M-02P
Configuration Single Axis
Total Travel, XYZ X: 24.00  in  (610 mm)
Mechanical Drive System Superprecision Ball screw
Stage Bearing Type Ball Bearing
Screw Pitch 5 turns per inch
Linear Accuracy  +/- 2 microns
Stage Length 39.00  in  (991 mm)
Stage Width 10.00  in  (254 mm)
Table Length 10.00  in  (254.00 mm)
Table Width 10.00  in  (254.00 mm)
Tabletop Height 4.75  in  (120.65 mm)
Maximum Payload 300.00  lb  (136.08 kg)
Maximum Travel Speed 12.000  in/s  (305 mm/s)
Motor  Drive: Servo Motor     Size: NEMA 34
Accessories

BM500 brushless servo motor included (peak speed = 4000 rpm)

Other Information

Metric dimension mounting pattern and holes

Exterior Dimensions
  Width 49.000  in  (124.5 cm)
  Depth 10.000  in  (25.4 cm)
  Height 4.750  in  (12.1 cm)
Weight 120  lb  (54 kg)

OFFERED BY:
(click name below to visit its website directly)
Capovani Brothers Inc.
Scotia , New York
1.518.346.8347

Shipping & Handling:

Unless otherwise stated, all items will be fully tested and sold with our standard ninety day warranty, which is described in our terms and conditions.
Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.
Domestic and International shipments: Ex Works, Scotia, NY. All freight cost estimates are for dock to dock service only.
Any additional services, i.e. lift-gate, inside or residential delivery, must be requested at the time of sale and will be billed accordingly.
CBI is not responsible for any damage incurred during shipment. It is the buyer's responsibility to inspect packages for damage and to note any damage on bill of lading.
Please feel free to call us with any questions. (Phone: 518.346.8347, 844-833-8347, Fax: 518.381.9578).


Payment:

Minimum order of $50 required.
We offer terms of net 30 days to all companies that have established credit with Capovani Brothers Inc. and have paid within terms.
All federal, state, local governments and their agencies, as well as institutions of higher learning automatically receive terms.
All other sales, including foreign sales, are prepayment only.
MasterCard, VISA, Discover and AMEX are accepted at sellers discretion.
