|Other Information |

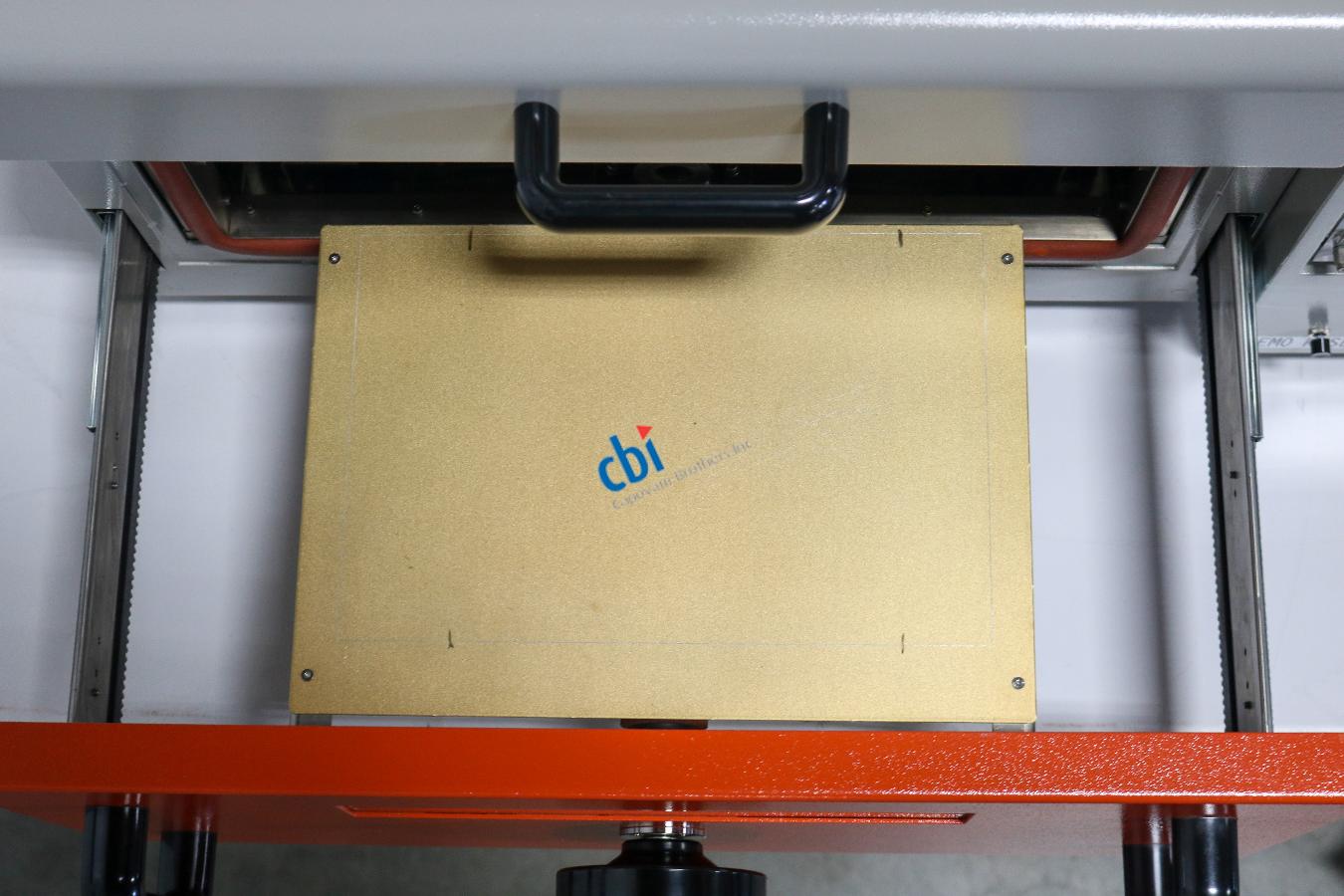

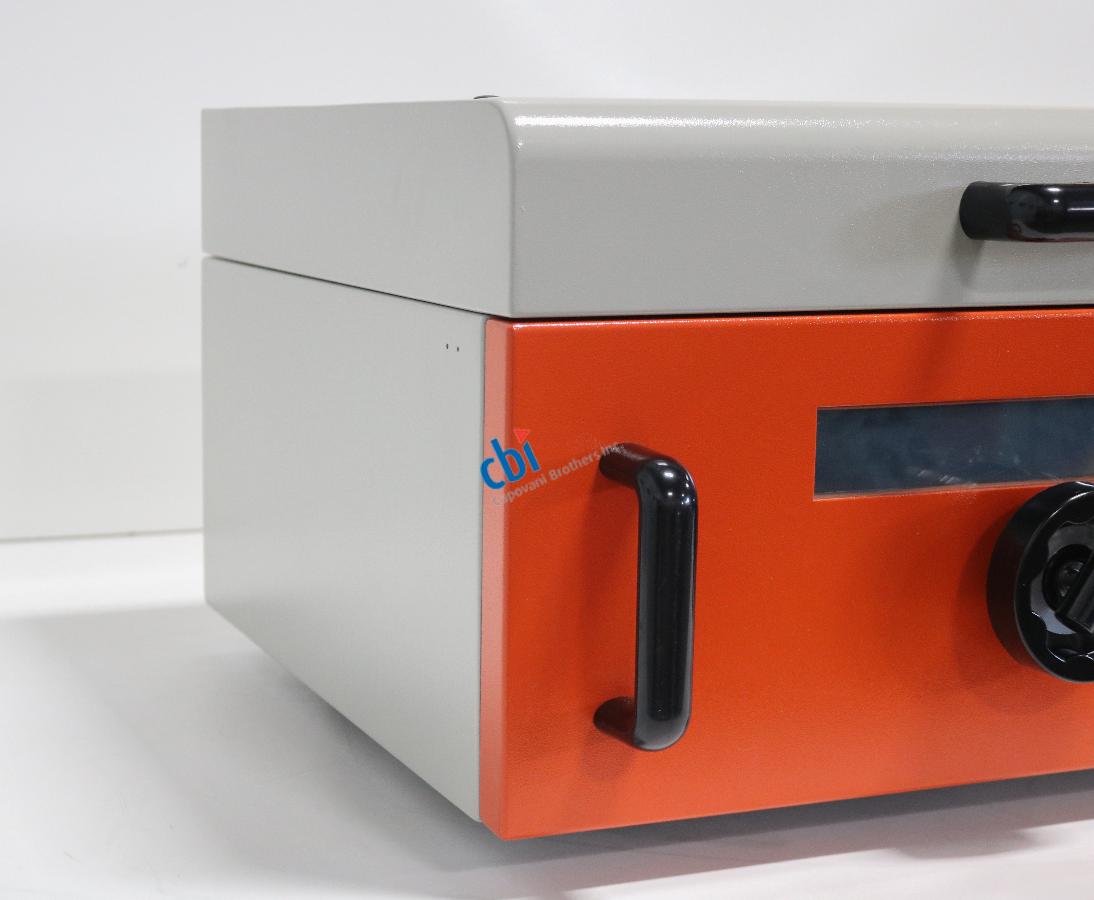

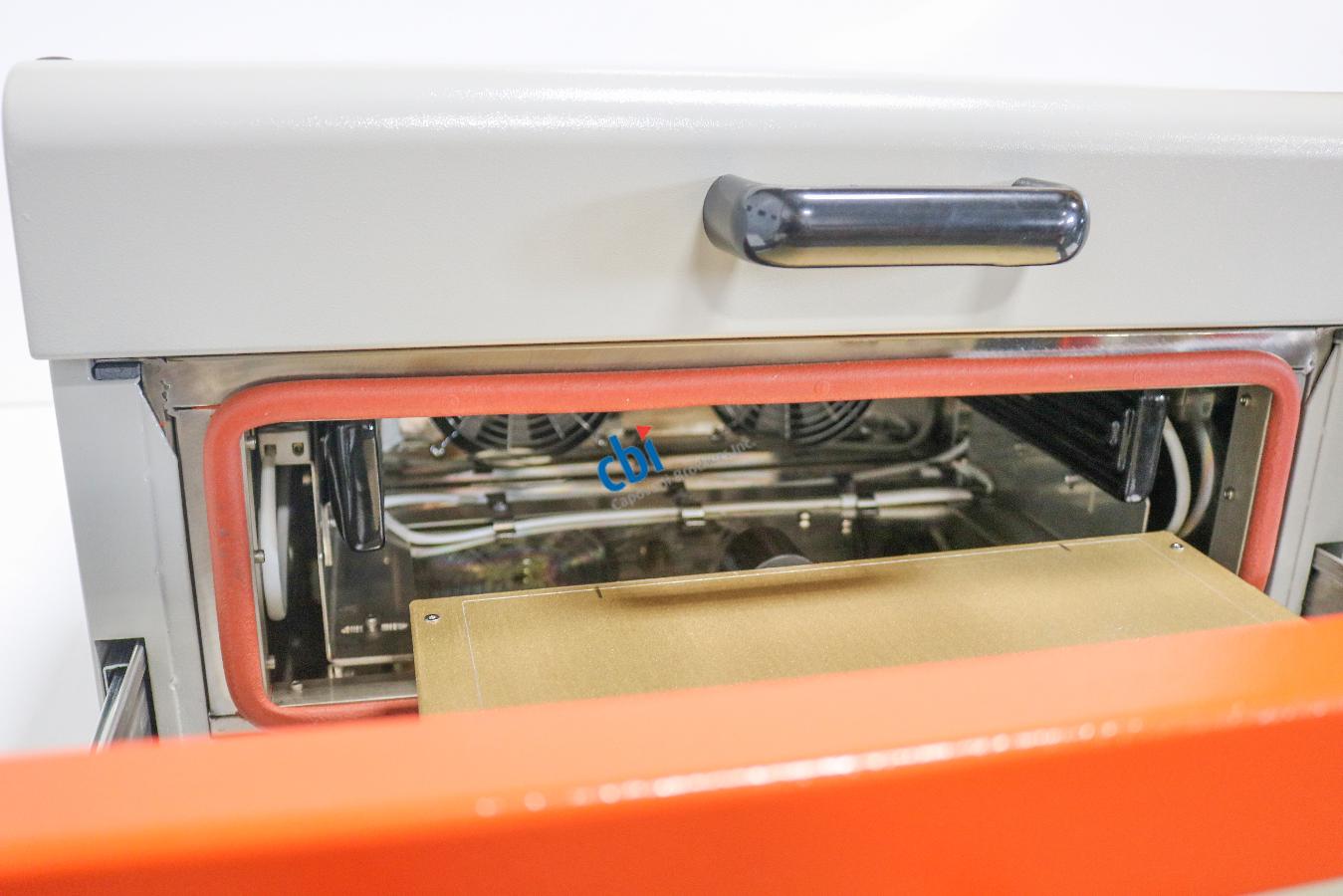

The front-loading heating chamber has an effective soldering area of 9.84" x 7.87" (250 x 200 mm) and includes a window for viewing of the soldering process.

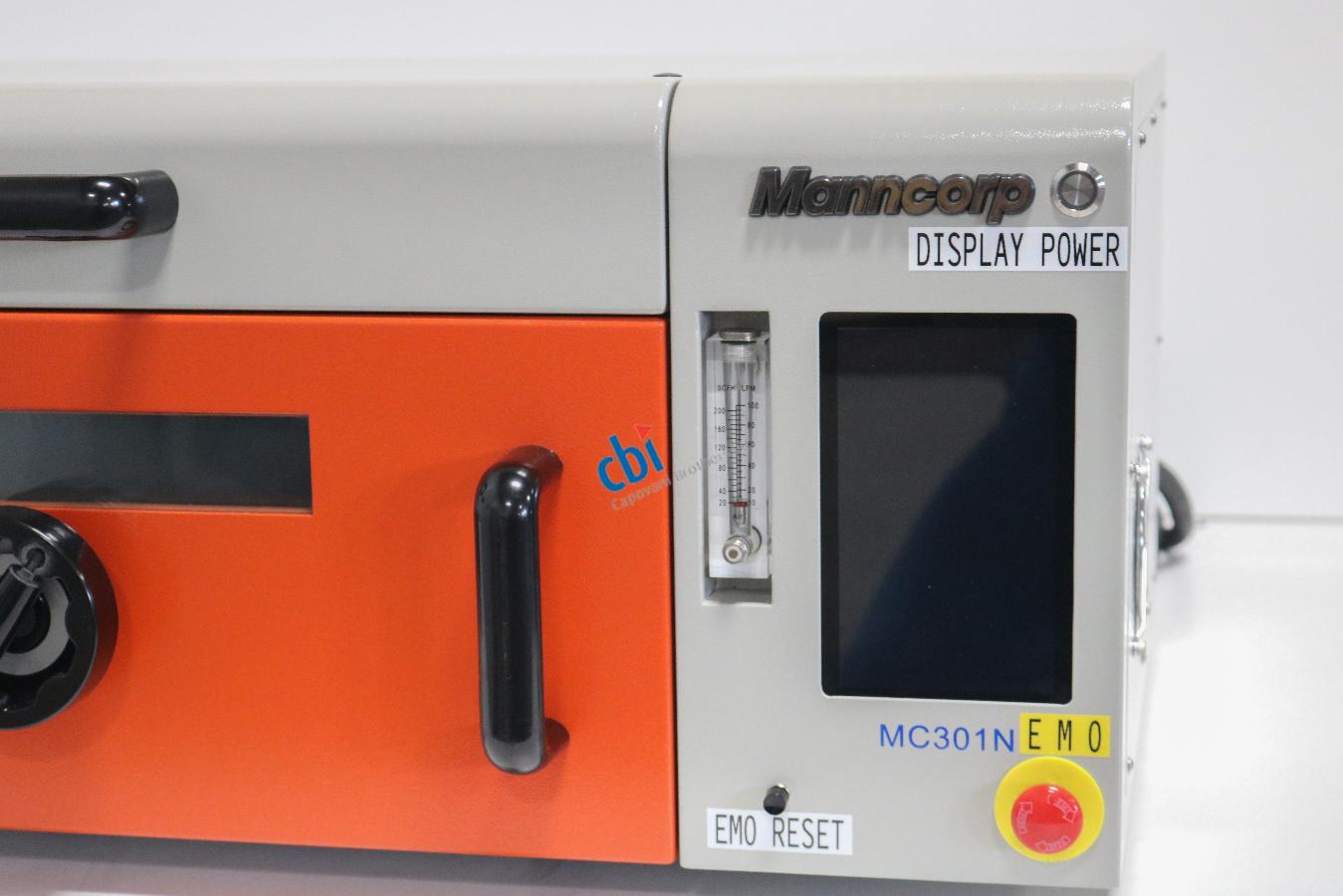

The MC-301N Android-based control app provides an easy-to-use, touch-panel interface with virtual keyboard for setting the temperature and duration of the preheat, soak, reflow, and cooling stages. In the reflow zone, the user can specify the dwell at both the melting and peak temperatures. Based on these settings, the system will also automatically calculate the heating or cooling rate in each stage for verification with solder paste and component manufacturers' specifications. In addition, when heater control is based on the higher temperature measured at the heaters, the system displays the calculated board temperature based on a calibrated offset.
