Item ID: 197047

**1 Offered at Best Price**

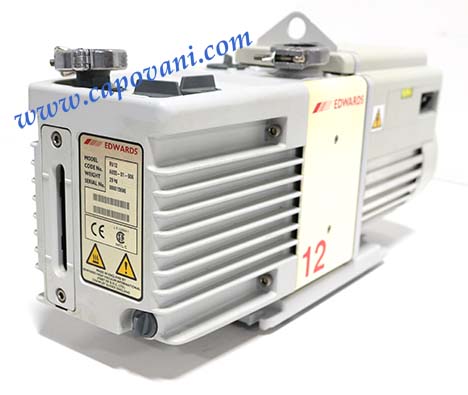

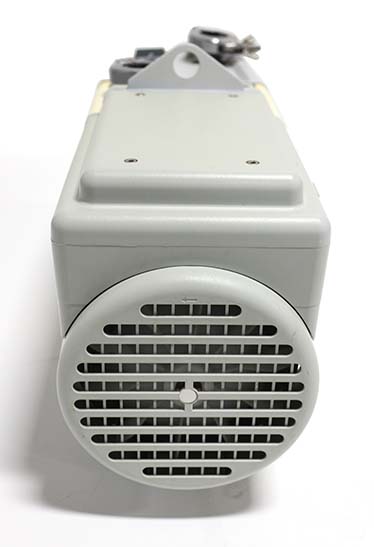

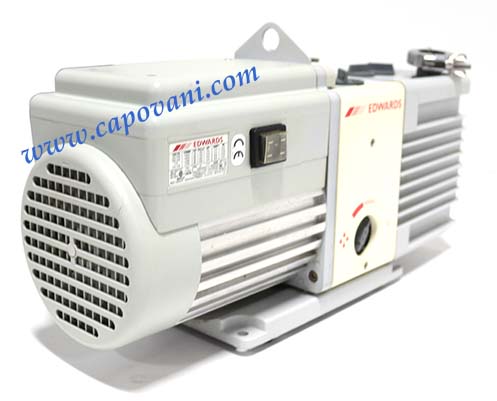

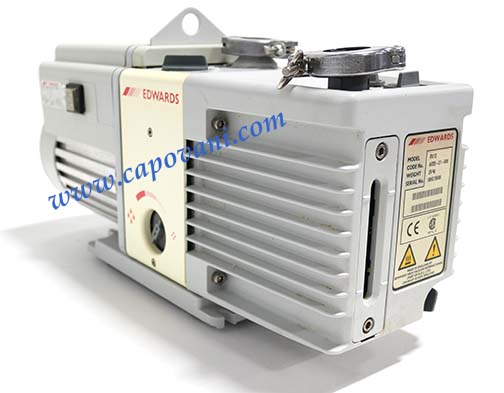

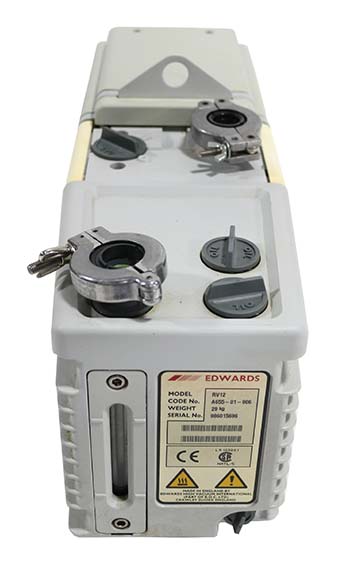

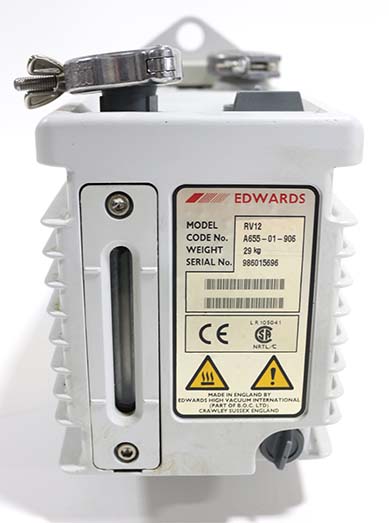

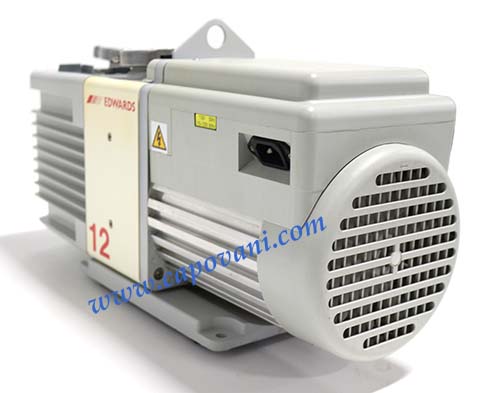

EDWARDS ROTARY VANE MECHANICAL VACUUM PUMP 10 CFM

Two Stage Mechanical Vacuum Pump

Pumping speed and ultimate pressure are based on 60 Hz operation.

Edwards RV12

EDWARDS ROTARY VANE MECHANICAL VACUUM PUMP 10 CFM

... other images

Location: Scotia, New York

Unit Price	Unstated
Number of Units	1
Manufacturer	Edwards
Model	RV 12
Pumping Speed	8.4 CFM (237.4 l/m)
Ultimate Pressure	1.50E-3(Eⁿ) torr (2.00E-3 mbar)
Inlet Flange	KF 25.0 mm (0.984 in)
Exhaust Flange	KF 25.0 mm (0.984 in)
Duty--Service	Normal
Two-Stage	YES
Gas Ballast	Yes
Direct Drive	Yes
Motor Horsepower	3/4 HP
Oil Type	Hydrocarbon
Other Information	Pump is configured for 120VAC, request 240VAC input voltage when ordering.
Extended Description	Details at rv 3,5,8,12 pumps A652_01_880.pdf
Power Requirements	120/240 V 6.6 A 3.4 A(2) 50/60 Hz 1 Phase
CE Marked	YES
Exterior Dimensions
Width	6.220 in (15.8 cm)
Depth	19.250 in (48.9 cm)
Height	10.280 in (26.1 cm)
Weight	58 lb (26 kg)
