in Upright Microscopes
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York
Item ID: 176525

Offered 1 Offered at Best Price

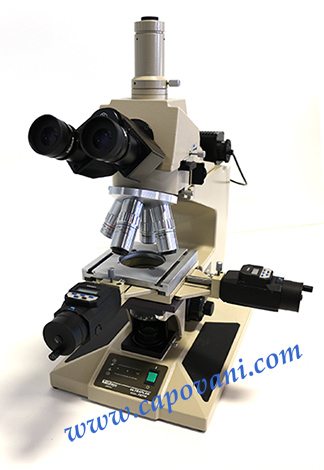

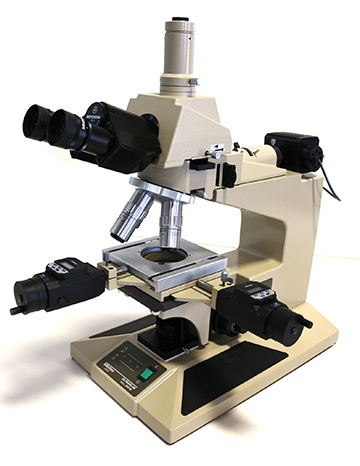

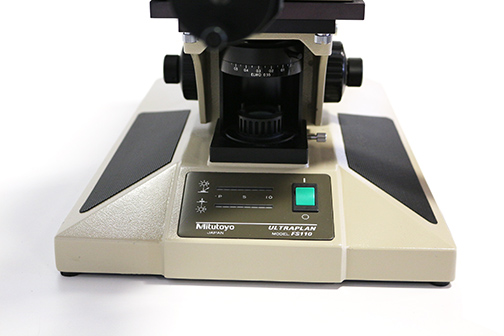

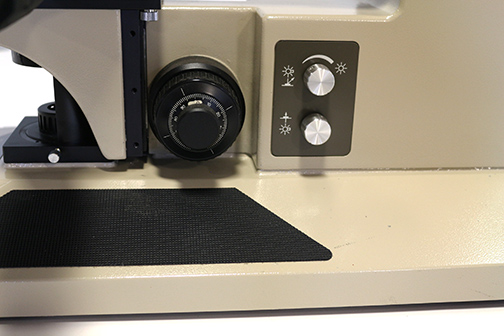

Materials Inspection Microscope - Reflected & Transmitted Light

  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1

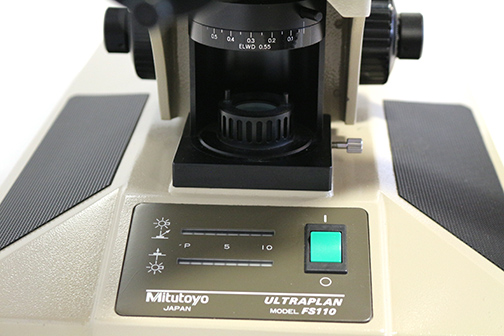

Manufacturer Mitutoyo
Model FS-110T - 378-121
Microscope Configuration Brightfield & Polarization

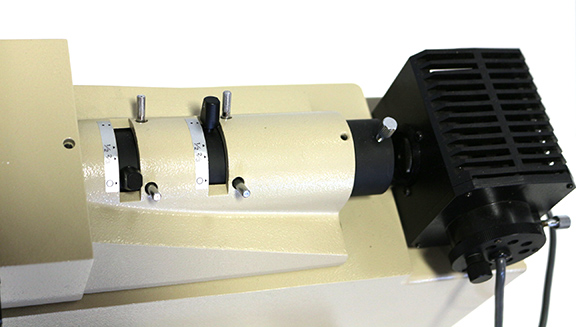

Illumination Type Reflected & Transmitted Light
Binocular Angle 45°
  Model UWF
  Magnification 10 X
  Field Number 30 mm
  Focusing YES

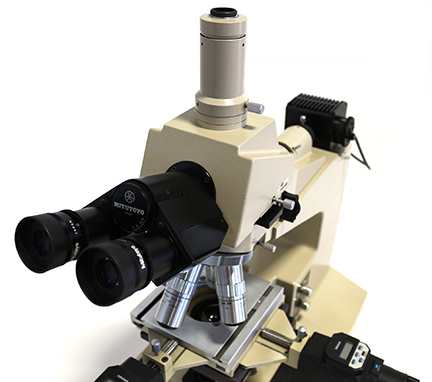

Trinocular/Phototube Provided YES
Magnification Changer 1X, 2X

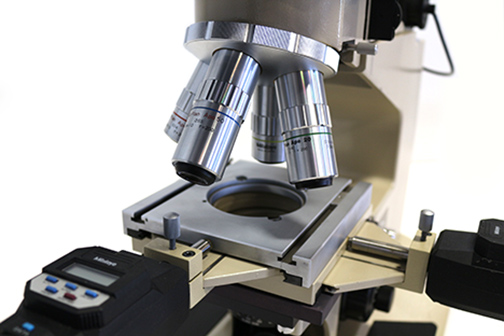

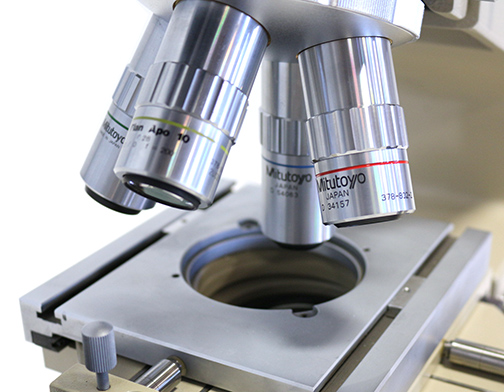

Multiple Objectives Models

M Plan APO   5X/0.14 -  Part number 378-802-2
M Plan APO 10X/0.28 -  Part number 378-803-2
M Plan APO 20X/0.42 -  Part number 378-804-2
M Plan APO 50X/0.55 -  Part number 378-805-2

Infinity Corrected Objectives YES
Polarizer YES
Analyzer YES
Stage Type Coaxial X-Y
Stage Area Length: 70  mm  (2.756 in)     Width: 70.0  mm  (2.756 in)

Optional accessories that are included:
Polarizing unit - Part number 378-074
Differential interference contrast unit (DIC) for 50X, SL20X - Part number 378-078
CCD camera mount adapter - Part number 378-041

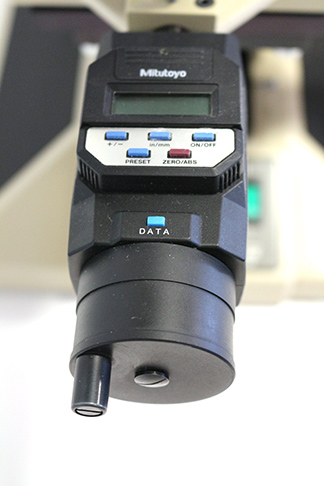

(2) Mitutoyo Digimatic Micrometer Heads Series 164 - Part number 164-162
Accuracy: ±.00015"
Range - inches: 0-2", Resolution: .00005"
Range - mm: 0-50.8mm, Resolution: 0.001mm

Other Information

Polarizing light - reflected only.

Power requirements:
100 - 120V, 3A or 200, 240V, 1.5A
50/60 Hz, 80 VA, 1 Phase
