FULL DESCRIPTION of Item 1227

in Linear Stages
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 1227

Offered 6 Offered at Best Price

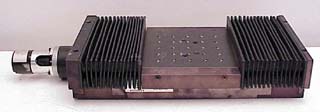

AEROTECH LINEAR MOTORIZED STAGE, 50MM TRAVEL

Linear Motorized Stage

Aerotech ATS02005-U-40P

AEROTECH LINEAR MOTORIZED STAGE, 50MM TRAVEL

Location: Scotia, New York
Unit Price Unstated
Number of Units 6
Manufacturer Aerotech
Model ATS02005-U-40P
Configuration Single Axis
Total Travel, XYZ X: 1.97  in  (50 mm)
Mechanical Drive System Precision Ball screw
Linear Accuracy  0.00004 in/in
Stage Length 14.75  in  (375 mm)
Stage Width 7.75  in  (197 mm)
Table Length 6.00  in  (152.40 mm)
Table Width 6.00  in  (152.40 mm)
Tabletop Height 2.50  in  (63.50 mm)
Maximum Payload 100.00  lb  (45.36 kg)
Maximum Travel Speed 3.500  in/s  (89 mm/s)
Motor  Drive: Stepper Motor
Other Information

Super precision ball screw(bellows covered)
Pitch: 4mm/rev
Accuracy: 0.00004 in/in
Repeatability: 0.00004 in
Straightness: 0.00008 in/in
Stage material black anodized aluminum
Table hard coated (63 Rockwell hardness)
25 1/4"/ 20 holes 1" pattern
Limit switch
Encoder
Motor nema 23

Year of Manufacture 1994
Exterior Dimensions
  Width 7.750  in  (19.7 cm)
  Depth 19.500  in  (49.5 cm)
  Height 3.500  in  (8.9 cm)
Weight 16  lb  (7 kg)

OFFERED BY:
(click name below to visit its website directly)
Capovani Brothers Inc.
Scotia , New York
1.518.346.8347

Shipping & Handling:

Unless otherwise stated, all items will be fully tested and sold with our standard ninety day warranty, which is described in our terms and conditions.
Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.
Domestic and International shipments: Ex Works, Scotia, NY. All freight cost estimates are for dock to dock service only.
Any additional services, i.e. lift-gate, inside or residential delivery, must be requested at the time of sale and will be billed accordingly.
CBI is not responsible for any damage incurred during shipment. It is the buyer's responsibility to inspect packages for damage and to note any damage on bill of lading.
Please feel free to call us with any questions. (Phone: 518.346.8347, 844-833-8347, Fax: 518.381.9578).


Payment:

Minimum order of $50 required.
We offer terms of net 30 days to all companies that have established credit with Capovani Brothers Inc. and have paid within terms.
All federal, state, local governments and their agencies, as well as institutions of higher learning automatically receive terms.
All other sales, including foreign sales, are prepayment only.
MasterCard, VISA, Discover and AMEX are accepted at sellers discretion.
