Unit Price |
$ 2,300.00 |
Number of Units |
1 |

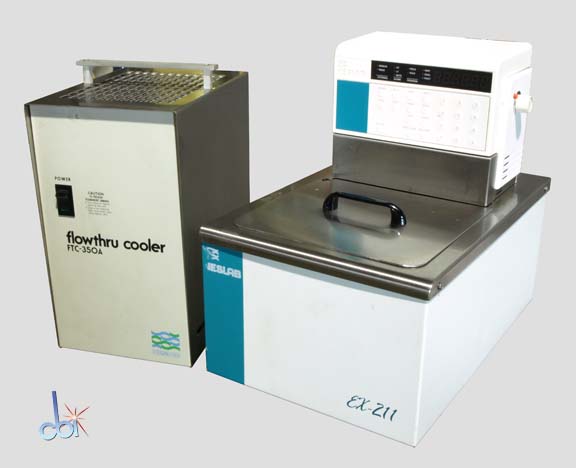

Manufacturer | Neslab |
Model | EX-211-MP |
Minimum Temperature | -10 ºC (14 ºF, 263.00 ºK) |
Maximum Temperature | 150 ºC (302 ºF, 423 ºK) |
Cooling Capacity | 450 W (1,535 BTU/hr) |
Heating Capacity | 800 BTU/hr (0.23 kW, 0.31 HP) |
Temperature Control |  |
Control Stability | ± 0.010 ºC |
Heat/Cool Controls |  |

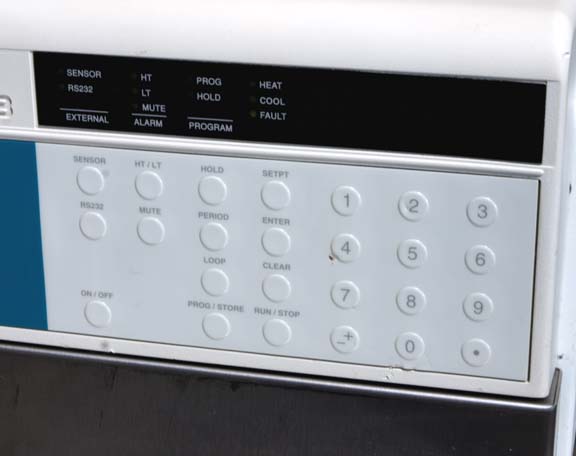

Control Type | Programmable |
Overtemperature Protection | YES |
Interface | RS 232 |
Controller Manufacturer/Model | Microprocessor |
External Cooling | Forced Air Cooled |
Bath/Tank Dimensions |  |
Length | 9.2500 in (23.50 cm, 235.0 mm) |
Width | 10.0000 in (25.40 cm, 254.0 mm) |
Depth | 6.0000 in (15.24 cm, 152.4 mm) |
Pump type/Model | Z |
Max Flow | 4 GPM (15.20 l/m) |
Inlet Connection | 1/4-mpt |
Outlet Connection | 1/4-mpt |
Capacity/Liquid | 12.25 L (3.24 gal) |

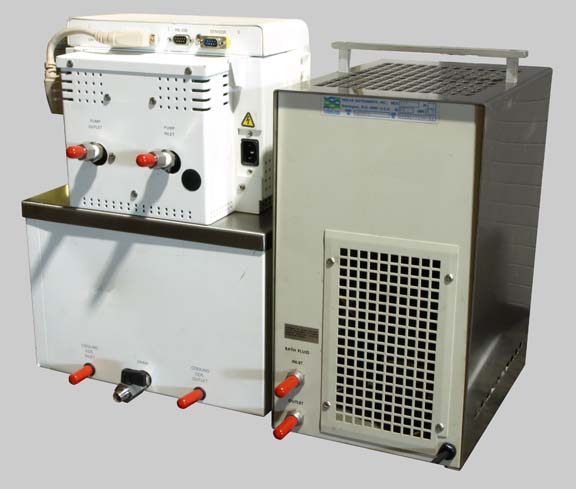

Accessories | FTC-350A Flow Through Refrigerated Cooler 14.5-H, 8.75-W, 13.00-D 115-volts 5-amps 60-hz 30-lbs |
Other Information | Multistep programming 8-temperature programs, each one having up to 15 program steps High / Low Temperature Safety Direct RS-232 Display Deg. F or C Remote Sensing 9-pin Sensor port
The controller detaches from the bath for remote operation with 10-ft cord |
Power Requirements | 115 V
9.0 A
60 Hz
1 Phase
|
Exterior Dimensions |  |
Width | 12.362 in (31.4 cm) |
Depth | 18.386 in (46.7 cm) |
Height | 17.008 in (43.2 cm) |
