Unit Price |
Unstated |
Number of Units |
1 |
Manufacturer | Olympus |
Model | BH2-UMA |
Description | Disk Inspection Microscope/Motorized Stage |
Microscope Type | Upright |
Microscope Configuration | Brightfield, DIC & POL |
Illumination Type | Reflected Light |
Binocular Angle | Variable |
Eyepieces |  |
Model | WHK 10X/20L |
Trinocular/Phototube Provided | YES |
Multiple Objectives Models | Objectives NEO SPLAN 5 NIC 0.13 F= 180 NEO SPLAN 10 NIC 0.25 F= 180 NEO SPLAN 20 NIC 0.40 F= 180 NEO SPLAN 50 NIC 0.70 F= 180 NEO SPLAN 100 NIC 0.90 F= 180 Nomarski prisms UPO/NIC Polorizing/DIC Slider
|
Infinity Corrected Objectives | YES |
Polarizer | YES |
Analyzer | YES |
Power Supply Included | YES |
Stage Type | Coaxial X-Y, Rotary |
X-Y-Z Stage Travel |
Z : 67 mm (2.638 in)
|
Rotary Stage Diameter | 203 mm (7.992 in) |

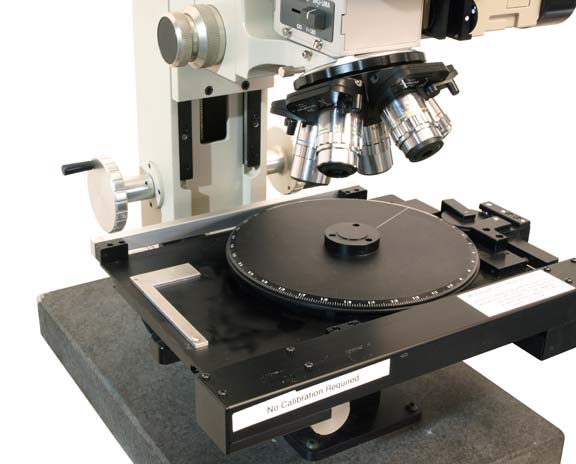

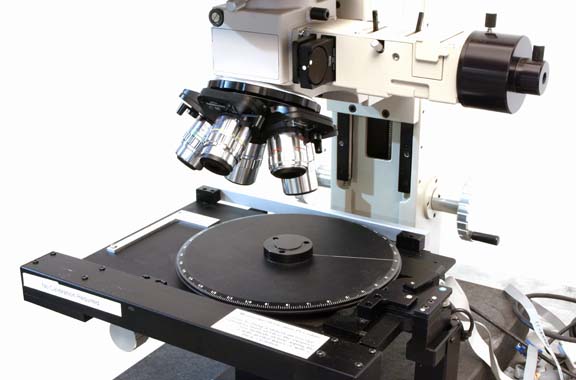

Other Information | Stage SEMPREX Model 12-9468.00 X Axis motorized Y Axis manual Rotory axis motorized Joy stick control Encoders X and rotory axis(readouts not included) Scope mounted on precision granite base (Accuracy .0001) |
Exterior Dimensions |  |
Width | 13.000 in (33.0 cm) |
Depth | 19.000 in (48.3 cm) |
Height | 25.500 in (64.8 cm) |
Weight | 96 lb (44 kg) |
