Unit Price |
$ 1,350.00 |
Number of Units |
1 |

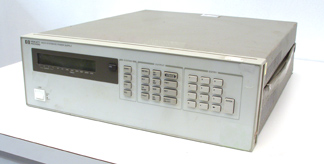

Manufacturer | Hewlett Packard |
Model | 6624A (4) Output |
Panel Meters | Digital |
Interface | USB |
Accessories |
- 4 independent, dual-range outputs with low ripple and fast up/down programming.
Outputs:
- (2)0 to 7/20 volts, 0 to 5/2 amps;
- (2)0 to 20/50 volts, 0 to 2/0.8 amps.
- 40 Watt
|
Other Information |
- GPIB programming of voltage and current
- Measured voltage and current readback over the GPIB
- Two outputs can be connected in parallel or in series
Automatic selection of operating voltage and current range
- Programmable over-voltage and over-current protection
- Self-test occurs at power-on from an GPIB command
- Electronic calibration via GPIB
- 10 store-recall states
- SCPI (Standard Comments for Programming Instruments)
Features:
- HP-IB programming of voltage and current, OVP, OCP, readback, power-on
|
Power Requirements | 100-240 V
8.0 A
4.0 A(2)
50/60 Hz
1 Phase
|
CE Marked | YES |
Condition | Very Good |
Exterior Dimensions |  |
Width | 16.750 in (42.5 cm) |
Depth | 21.000 in (53.3 cm) |
Height | 5.250 in (13.3 cm) |
Weight | 41 lb (19 kg) |
