Unit Price |
Unstated |
Number of Units |
1 |
Manufacturer | Blue M |
Model | STK05C-C-MP550 |
Maximum Temperature | 343 ºC (649 ºF, 616 ºK) |
Minimum Temperature | 21 ºC (70 ºF, 294.00 ºK) |
Clean Room Class | Class 1000 |
Heat/Cool Controls |  |
Control Type | Programmable |
Overtemperature Protection | YES |
Interface | RS 232 |

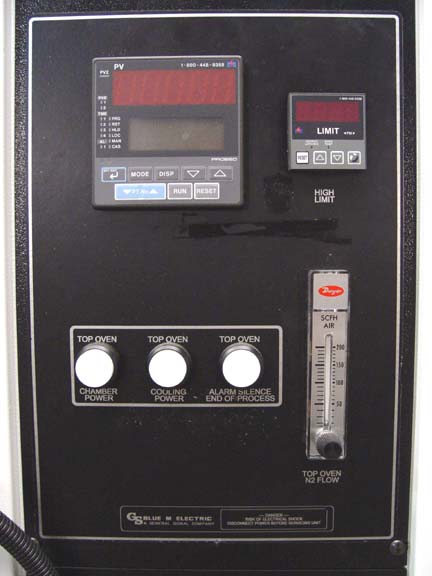

Controller Manufacturer/Model | Blue M PRO550/Yokogawa UP550 |
Number of Control Zones | 2 |
External Cooling | Water Cooled |
Capacity/Volume Box | 4.60 cu ft (0.13 cu m) |
Chamber Size |  |
Width | 20.25 in (51.44 cm) |
Depth | 20.00 in (50.80 cm) |
Height | 19.75 in (50.17 cm) |

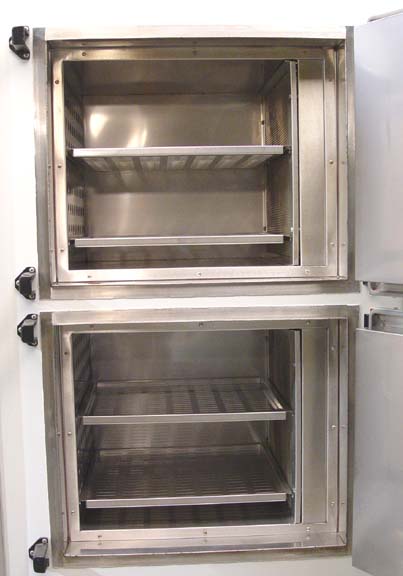

Chamber Characteristics |  |
Chamber Construction | Stainless steel |
Number and Size of Access Ports | None |
Accessories | Shelves shown in photos may not be available. Please inquire about availability. |
Other Information | Hepa filter Inert gas solenoid Gas flow meter |
Power Requirements | 240 V
60.0 A
60 Hz
1 Phase
|
Year of Manufacture | 2000 |
Exterior Dimensions |  |
Width | 53.000 in (134.6 cm) |
Depth | 38.000 in (96.5 cm) |
Height | 90.000 in (228.6 cm) |
Weight | 1,132 lb (513 kg) |
