FULL DESCRIPTION of Item 35762

in Critical Dimension Scanning Electron Microscopes
Deal directly with Owner:  Catalyst Equipment Corporation of Plano, Texas

Item ID: 35762

Offered 1 Offered at Best Price


Hitachi S-7000

CD SEM Measurement Tool
Hitachi S-7000

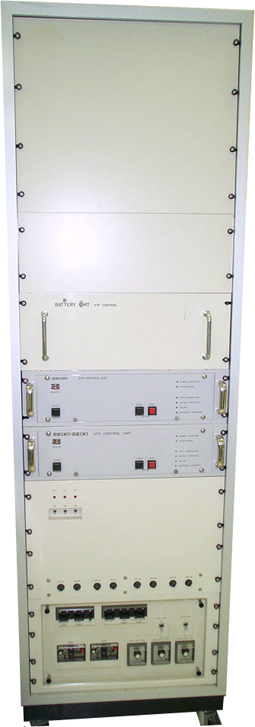

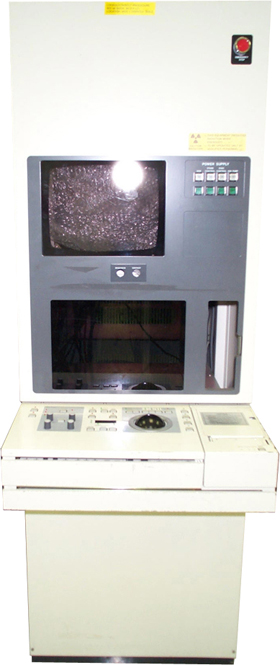

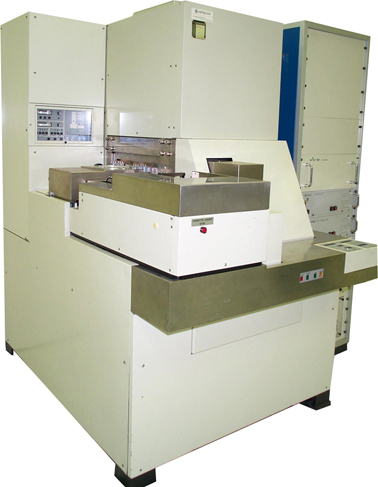

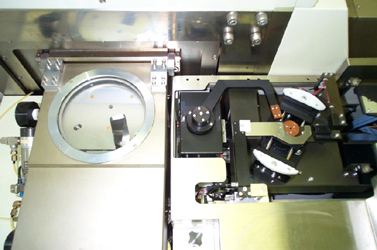

  Click to see additional image(s)... other images

Location: Plano, TX
Unit Price Unstated
Number of Units 1
Manufacturer Hitachi
Model S-7000
Wafer Size Range
  Minimum 100 mm
  Maximum 150 mm
  Set Size 150 mm
Resolution 150.00 Å
Acceleration Voltage
  Maximum Voltage 3 kV
Critical Dimension Measurement Range 0.10 µm  -  200.00 µm
CD Measurement Resolution 150  Å  (15 nm)
Cassette to Cassette YES
Tilting Stage YES
Gun Type Field Emission
Other Information
  • Cassette-to-Cassette Handling for 4”, 5” & 6” Wafers
  • 100X ~ 100,000X Magnification
  • 0.1 ~ 200 µm Measurement Range
  • 15 nm Guaranteed (at 1 kV) Secondary Electron Image Resolution
  • ± 0.02 µm or ±1%, whichever is greater, Reproducibility
  • 0.7 ~ 3 kV (100 V/step)
  • Auto-Focus and Auto-Stigmation
  • Fully Automated CD Measurement
  • Fully Programmable Stage with up to 60° Tilt
  • Multi Point Measurement Capability
Year of Manufacture 1989
Condition Good

OFFERED BY:
(click name below to visit its website directly)
Catalyst Equipment Corporation
Plano , Texas
+1.972.943.0808



Deal directly with Owner:  Catalyst Equipment Corporation of Plano, Texas
