in Vacuum Ovens
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York
Item ID: 239781

Offered 3 Offered at Best Price

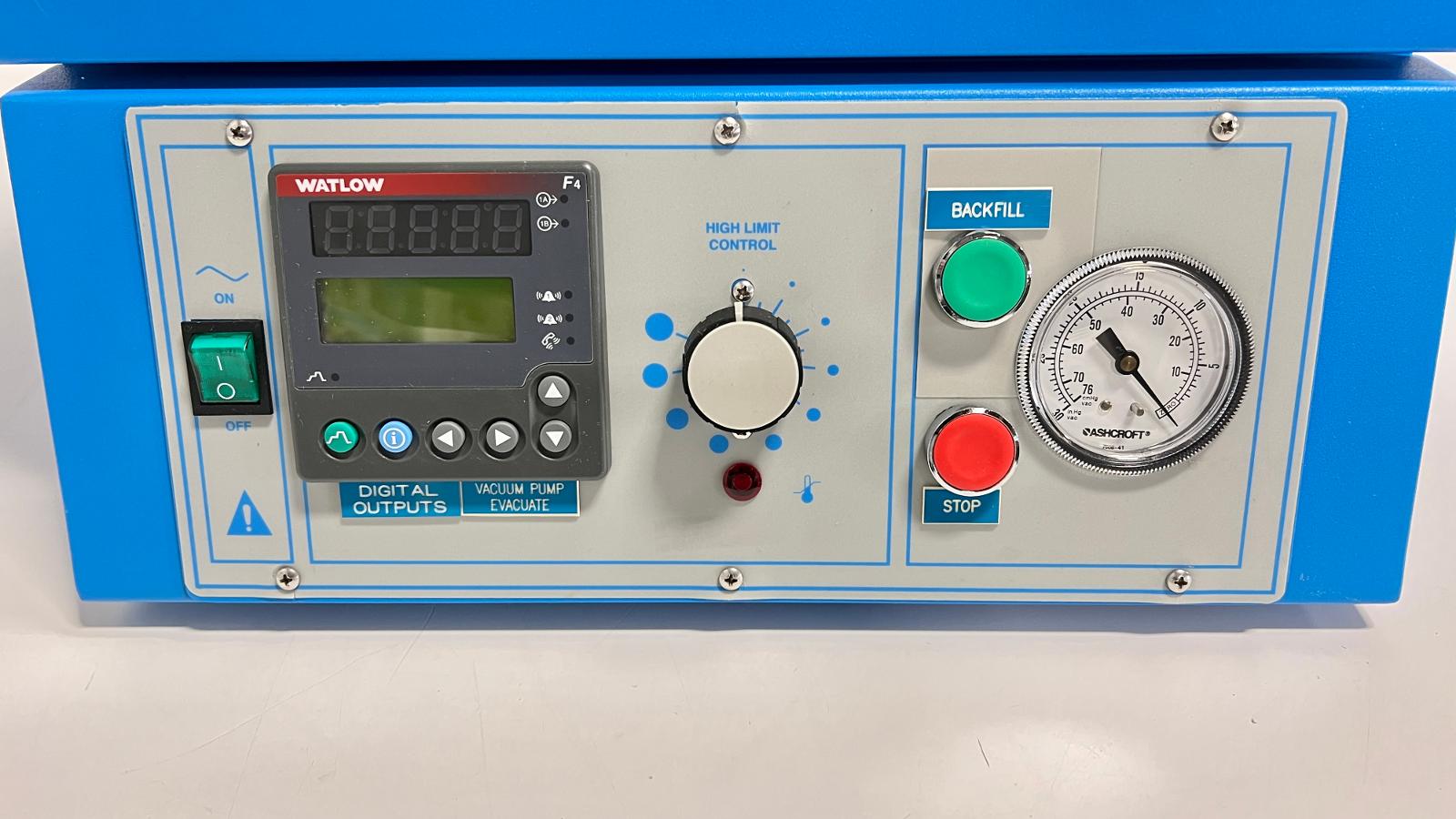

Automatic Pump down with Watlow F4 Process Controller

  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 3
Manufacturer Cascade TEK
Model TVO-2
Maximum Temperature 220  ºC  (428 ºF, 493 ºK)
Heat/Cool Controls
  Control Type Programmable
  Overtemperature Protection YES
  Interface RS 232
  Controller Manufacturer/Model Watlow F4S
Capacity/Volume Box 1.70  cu ft  (0.05 cu m)
Chamber Size
  Width 12.00  in  (30.48 cm)
  Depth 20.00  in  (50.80 cm)
  Height 12.00  in  (30.48 cm)
Chamber Characteristics
  Chamber Construction Stainless steel
  Viewing Window YES
Other Information
  • Minimum temperature 5º C above ambient
  • Compressed air 60 psi required for operation
  • Vent solenoid (push button controlled)
  • Profile stop button (to abort running profile)
  • Over-Temperature Safety Thermostat
  • Mechanical vacuum gauge
  • F4S controller capable of 256 possible ramp steps in as many as 40 variable-length, nameable profiles. Guided setup and programming software Watview for Windows XP https://www.watlow.com/-/media/documents/software-and-demos/executables/watview0906.ashx
  • Third party software compatible with Windows 7/10/11 https://f4tsoftware.com/
  • Profile controlled vacuum pump outlet

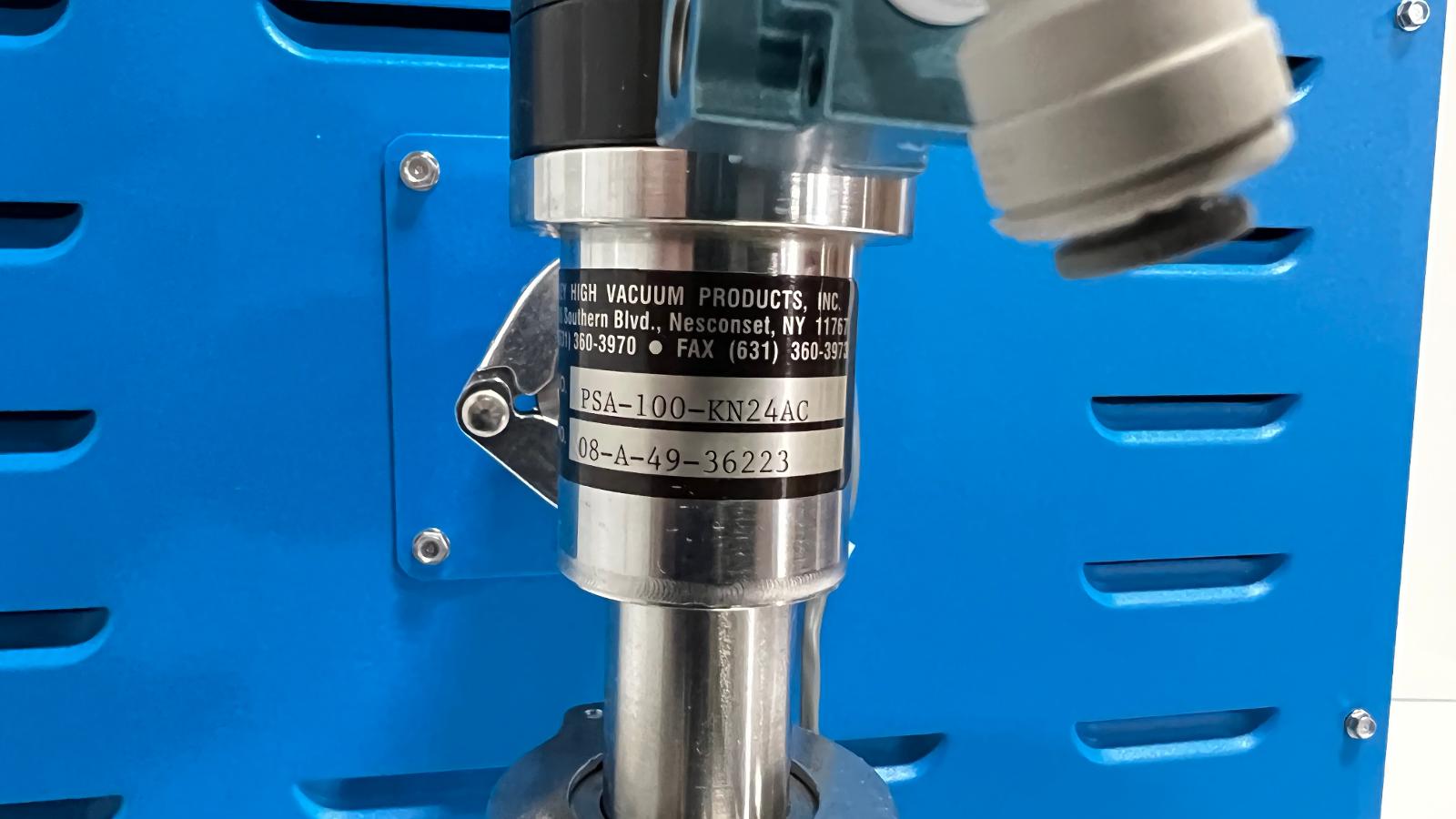

  • Profile controlled vacuum electro-pneumatic valve, 1"
  • Optional vacuum pump (not included)

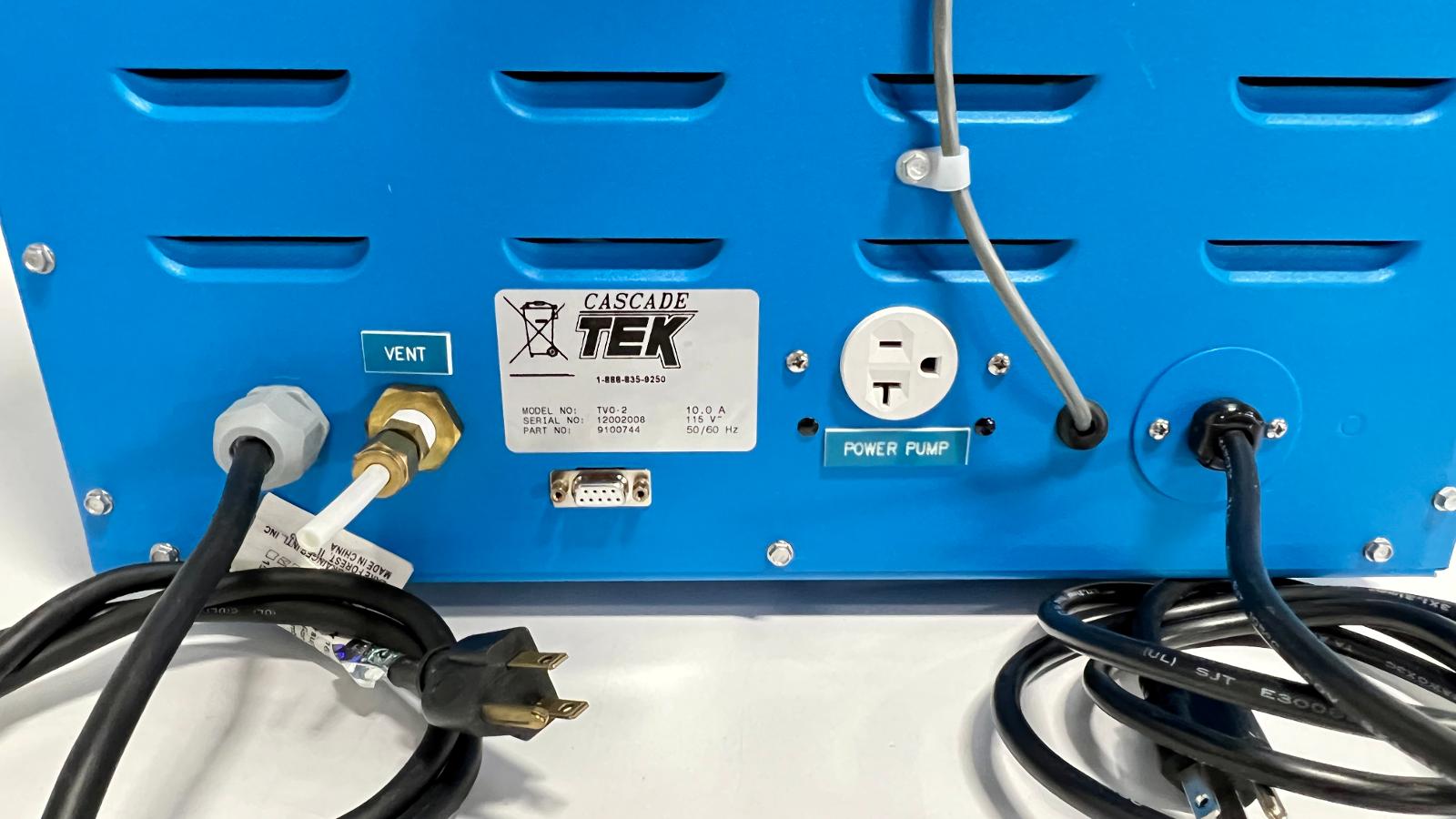

  • Oven has two power cords- one for the oven, another for the vacuum pump
Power Requirements 115 V     10.0 A     13.0 A(2)     50/60 Hz     1 Phase
Exterior Dimensions
  Width 18.750  in  (47.6 cm)
  Depth 26.500  in  (67.3 cm)
  Height 24.500  in  (62.2 cm)
