FULL DESCRIPTION of Item 215562

in Tube Furnaces
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 215562

Offered 1 Offered at Best Price

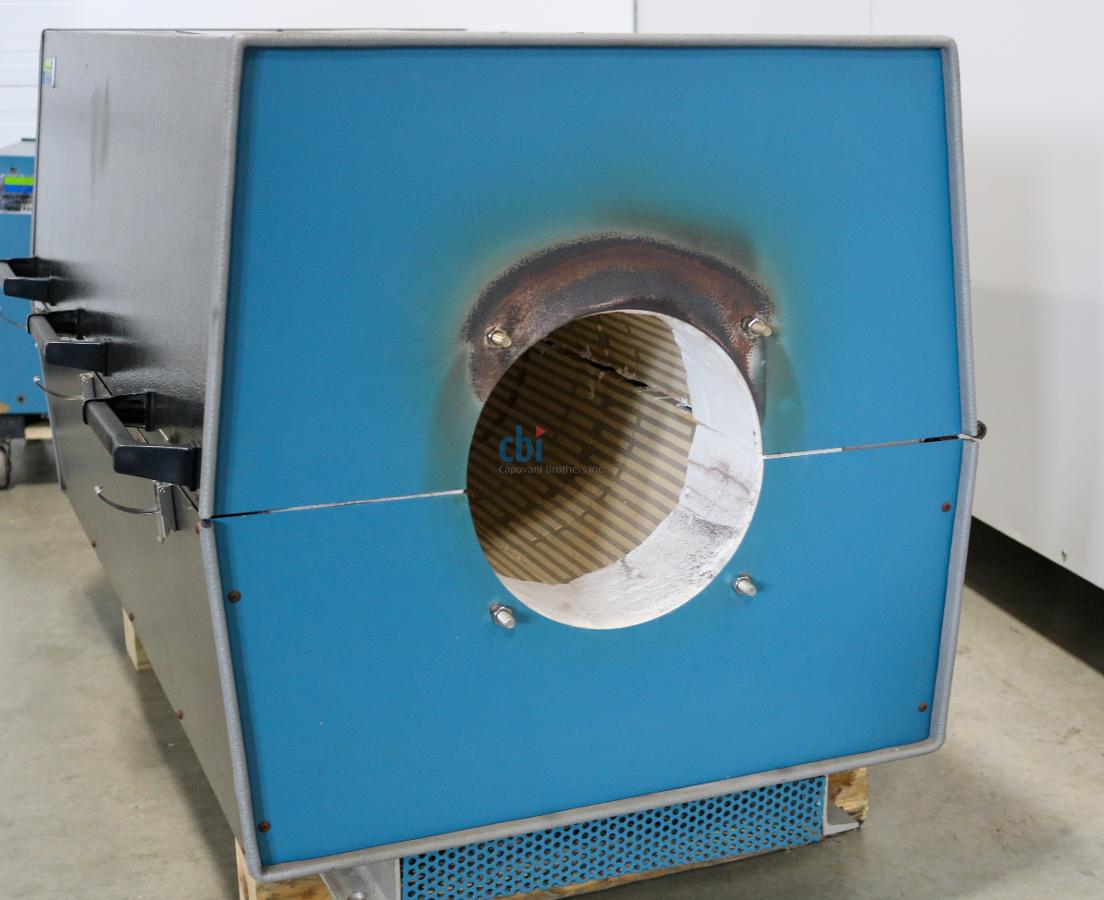

LINDBERG TUBE FURNACE 36" X 9" 1200 DEG C

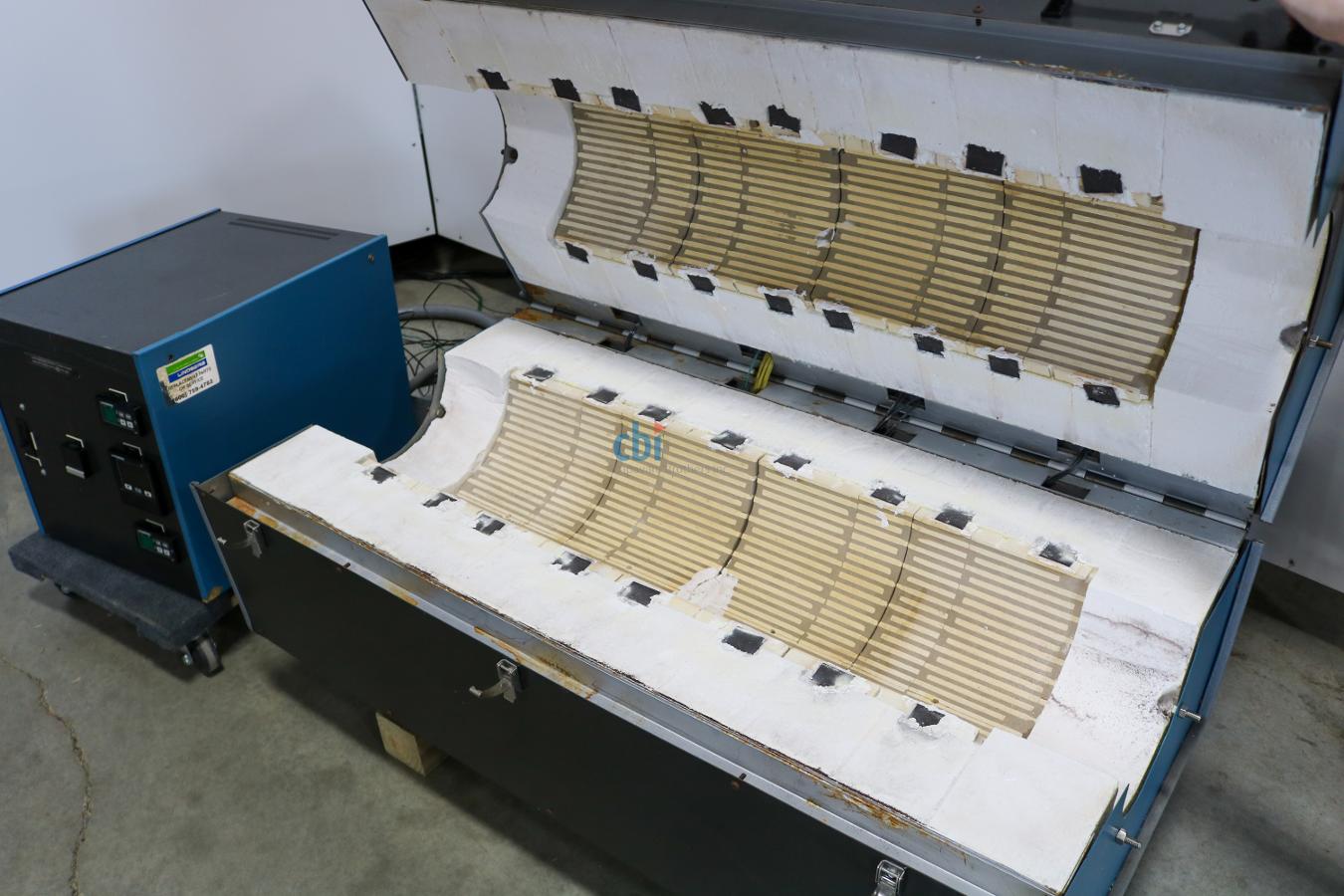

Split Hinge Tube Furnace - Programmable Controller



Optional Glass Open End Process Tube Available

LINDBERG TUBE FURNACE 36" X 9" 1200 DEG C
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Lindberg
Model 54S977M-1200
Maximum Temperature 1,200  ºC  (2,192 ºF, 1,473 ºK)
Heat/Cool Controls
  Control Type Programmable
  Overtemperature Protection YES
  Controller Manufacturer/Model Eurotherm 818P4
  Number of Control Zones 3
External Cooling Air Cooled
Tube Dimensions Diameter: 9.00  in  (22.86 cm)     Length: 36.00  in  (91.44 cm)
Thermocouple Type Type K
Number of Gas Inputs None
Accessories

Optional Glass Open End Process Tube Available

Dimensions:  66"L x 9" ID x 9-7/16" OD. with Steel Collars

Inquire for pricing and photos.

Other Information

22,500 Watts

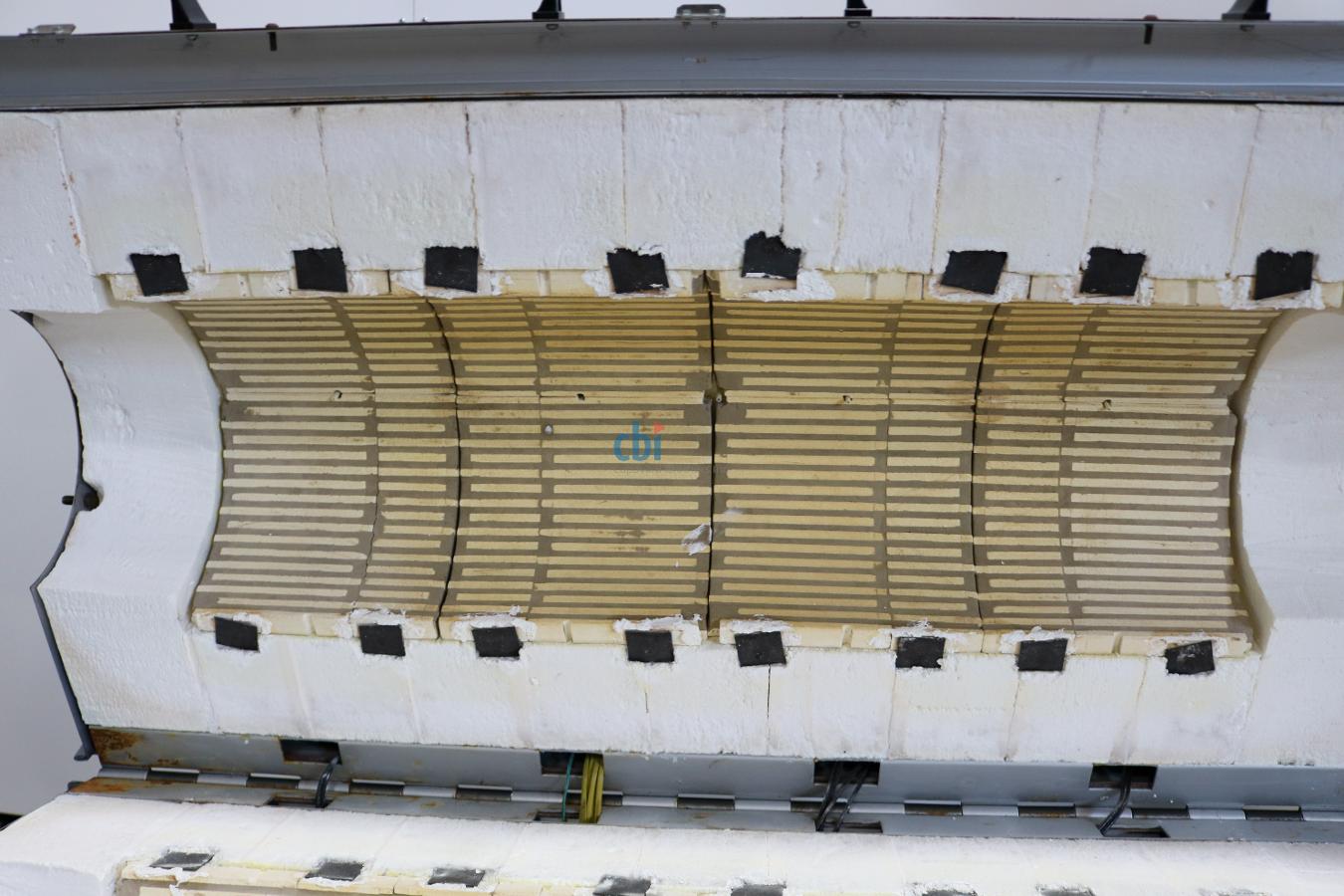

Hot Zone: 36"

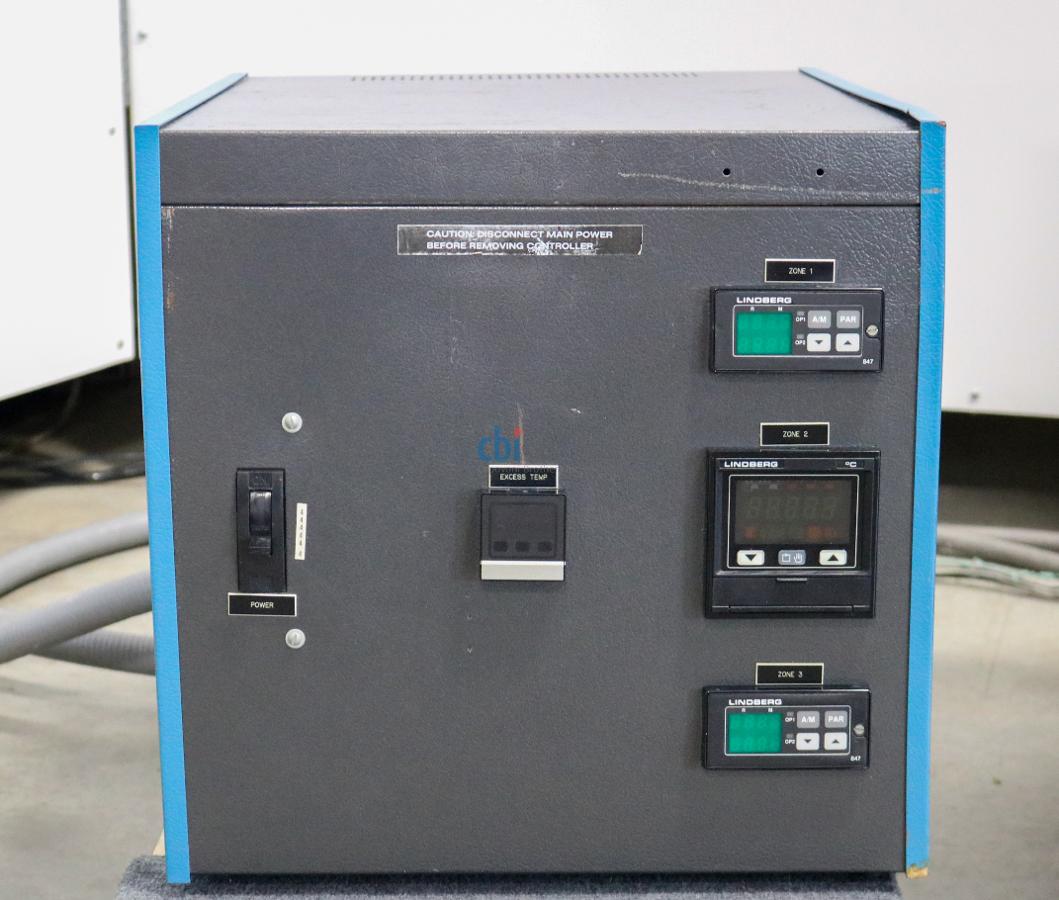

Controller: Model: 58474-PB

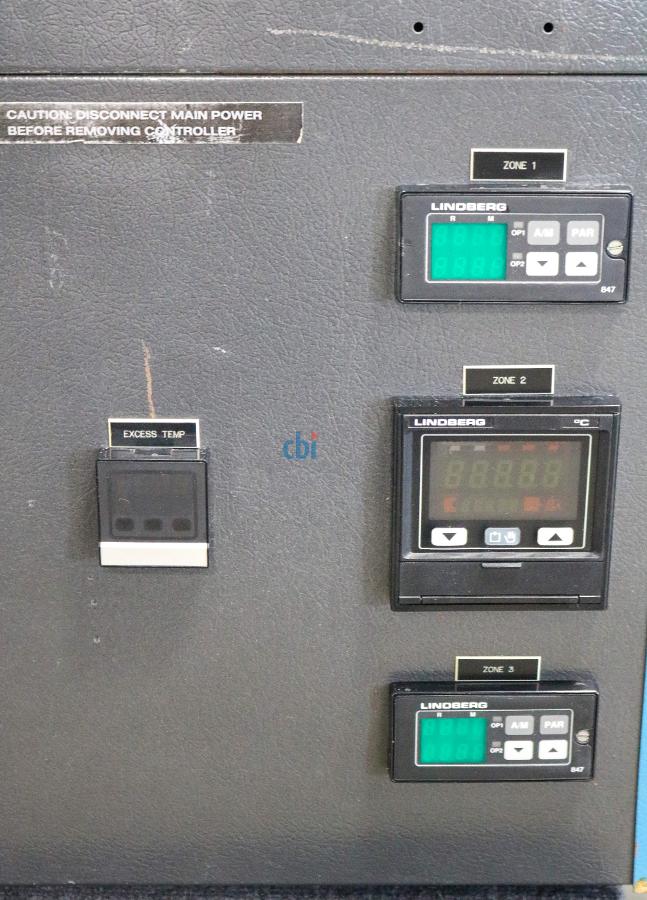

  • (2) Eurotherm Model 847 slave controllers
  • (1) Eurotherm 818P4 programmable controller, 4 programs, 16 segments if fixed ramp dwell sequence.
Power Requirements 240 V     60 Hz     1 Phase
Weight 526  lb  (239 kg)
