360106 for Dual Convectron Gauges
360104 for Stabil-ion remote control
Optional 6 channel process control board, can be added if available, +$545
Cable between controller and the power supply included.
Ion gauge cables see items 6799, 179524, 209733
|Other Information |

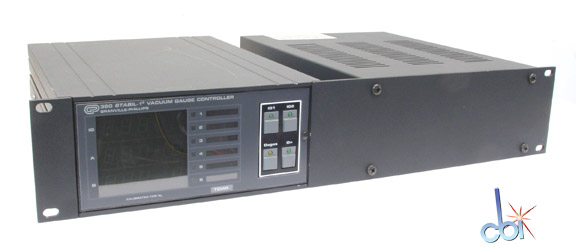

Controller has Dual Thermocouple module that provide power for two Thermocouple gauges but will not display pressure on the front panel, it has two 3.5 mm jack connectors to output analog pressure signal.
This controller can be calibrated for different ion gauges, calibration for each channel is loaded via memory modules.
- If you have standard Bayard-Alpert glass gauge, CBI can upload average calibration for that gauge with sensitivity 10/Torr to channel one, two or both.
- If you have Stabil-Ion gauge with individual module containing calibration for that gauge, you should upload that to the controller before using it.
- If you have Stabil-Ion gauge without individual module, CBI can upload average calibration with sensitivity 50/Torr to channel one, two or both.
Specify type and sensitivity of your gauges and input power 115VAC or 230VAC when ordering.
Click here for the manual
