Unit Price |
Unstated |
Number of Units |
1 |
Manufacturer | Despatch |
Model | LCC1-54 N2 Option |
Maximum Temperature | 260 ºC (500 ºF, 533 ºK) |
Clean Room Class | Class 100 |
Temperature Control |  |
Control Stability | ± 0.300 ºC |
Repeatablility | ± 0.500 ºC |

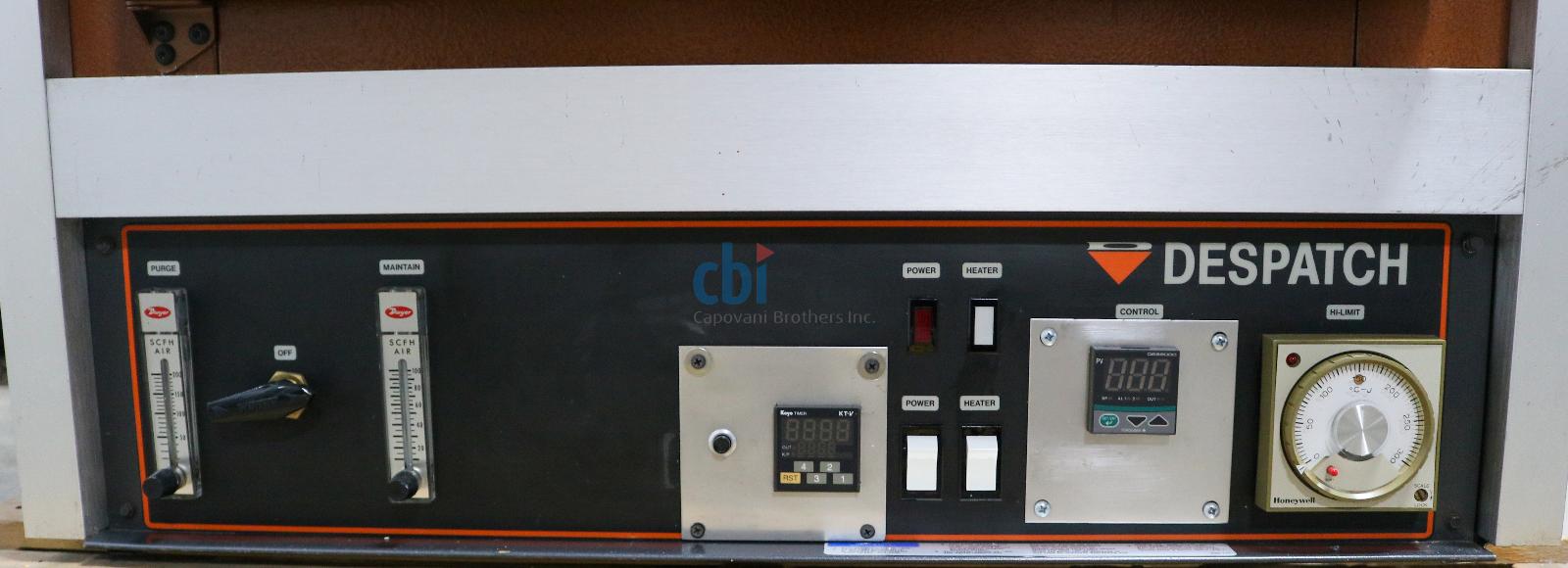

Heat/Cool Controls |  |
Control Type | Digital Setpoint |
Overtemperature Protection | YES |
Controller Manufacturer/Model | Yokogawa DES2000 |
Clock Monitor | YES |
External Cooling | Air Cooled |
Capacity/Volume Box | 5.40 cu ft (0.15 cu m) |
Chamber Size |  |
Width | 18.00 in (45.72 cm) |
Depth | 20.00 in (50.80 cm) |
Height | 26.00 in (66.04 cm) |

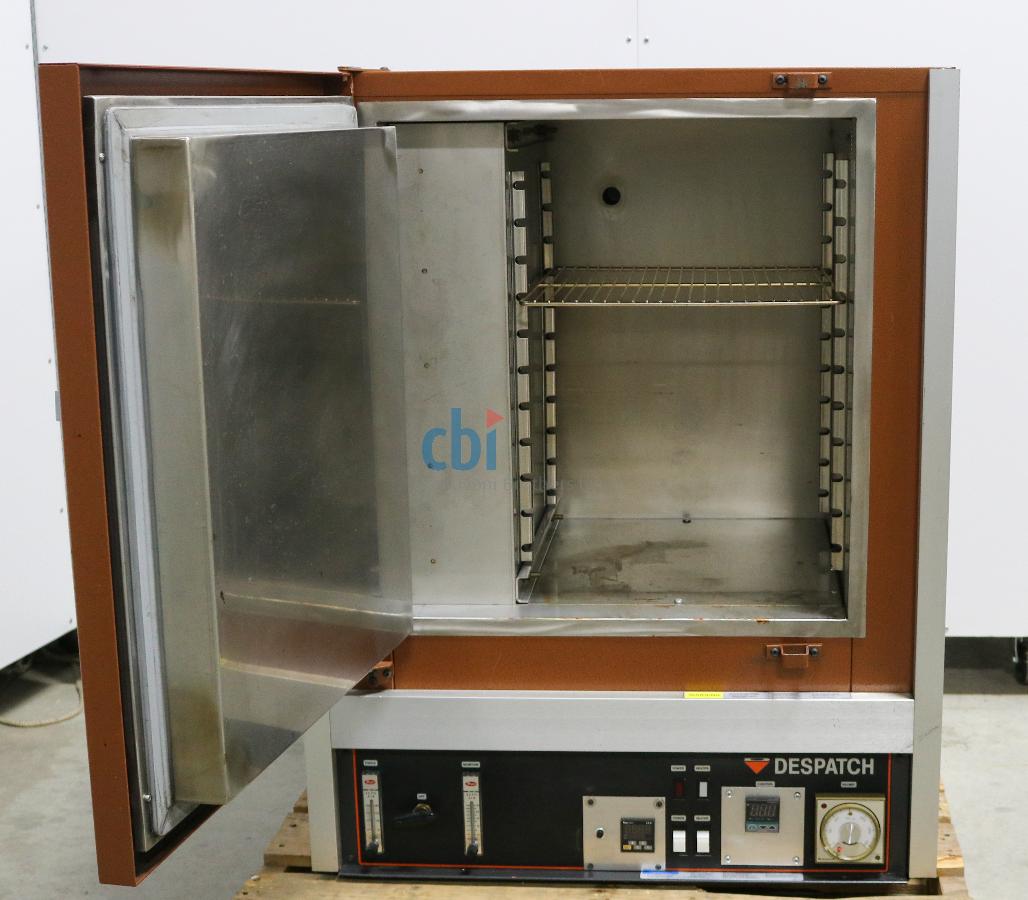

Chamber Characteristics |  |
Chamber Construction | Stainless Steel |
Maximum Number of Shelves | 11 |
Number of Shelves Provided | 1 |
Accessories | N2 Option installed. This provides an inert atmosphere and rapid cool down. |
Other Information | Used HEPA filter installed
Max oven load: 150 lb.
Max load per shelf: 25 lb. |
Power Requirements | 240 V
27.0 A
60 Hz
1 Phase
|
Exterior Dimensions |  |
Width | 34.000 in (86.4 cm) |
Depth | 29.000 in (73.7 cm) |
Height | 43.000 in (109.2 cm) |
