FULL DESCRIPTION of Item 196492

in Tube Furnaces
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 196492

Offered 1 Offered at Best Price


LINDBERG TUBE FURNACE 1200 C

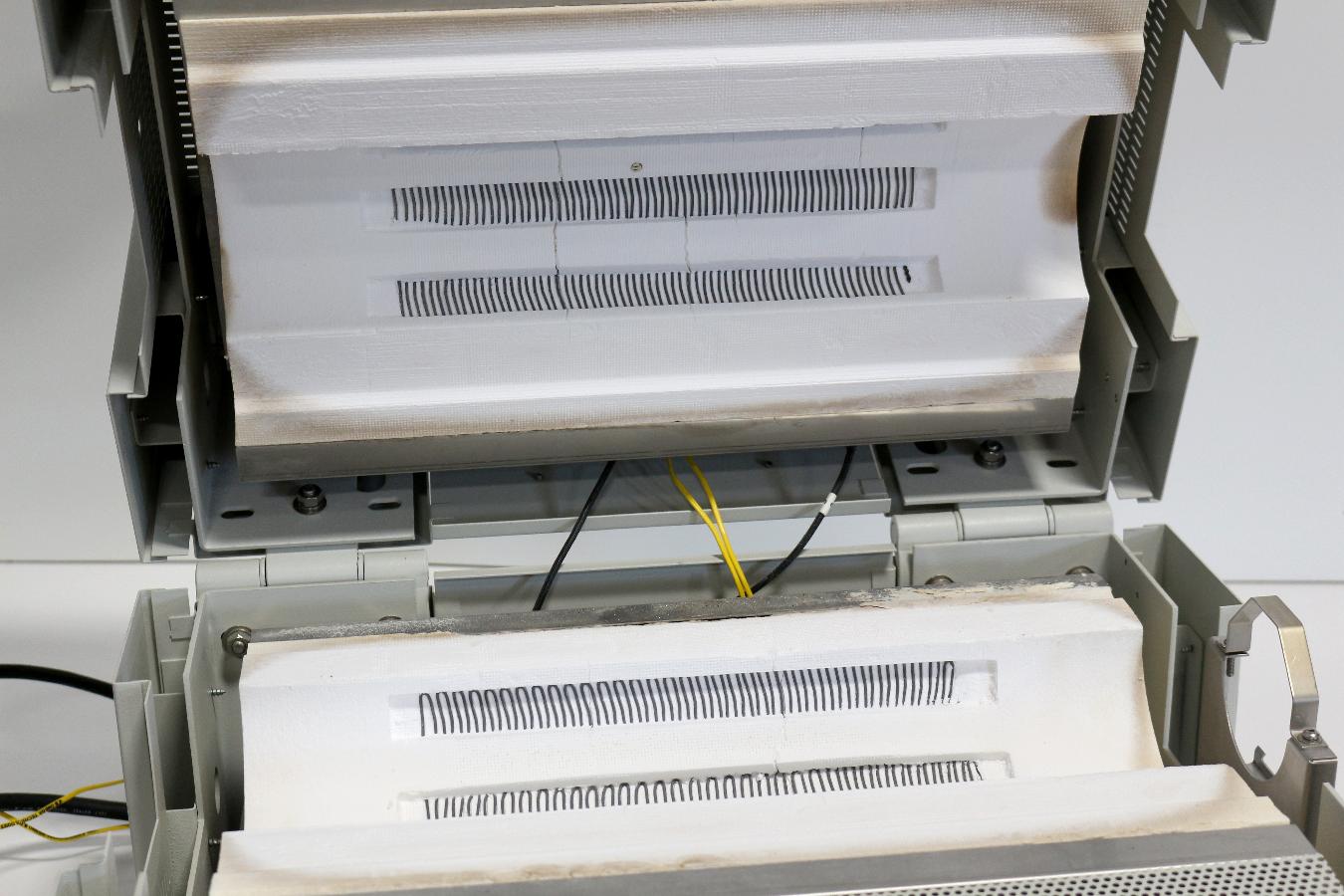

Split Hinge Tube Furnace with Retort
Watlow controller with profiling ramp

LINDBERG TUBE FURNACE 1200 C
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Lindberg/Blue M
Model HTF55322C
Maximum Temperature 1,200  ºC  (2,192 ºF, 1,473 ºK)
Minimum Temperature 21  ºC  (70 ºF, 294.00 ºK)
Temperature Control
  Control Stability ± 0.100 ºC
Heat/Cool Controls
  Control Type Programmable
  Interface RS 485

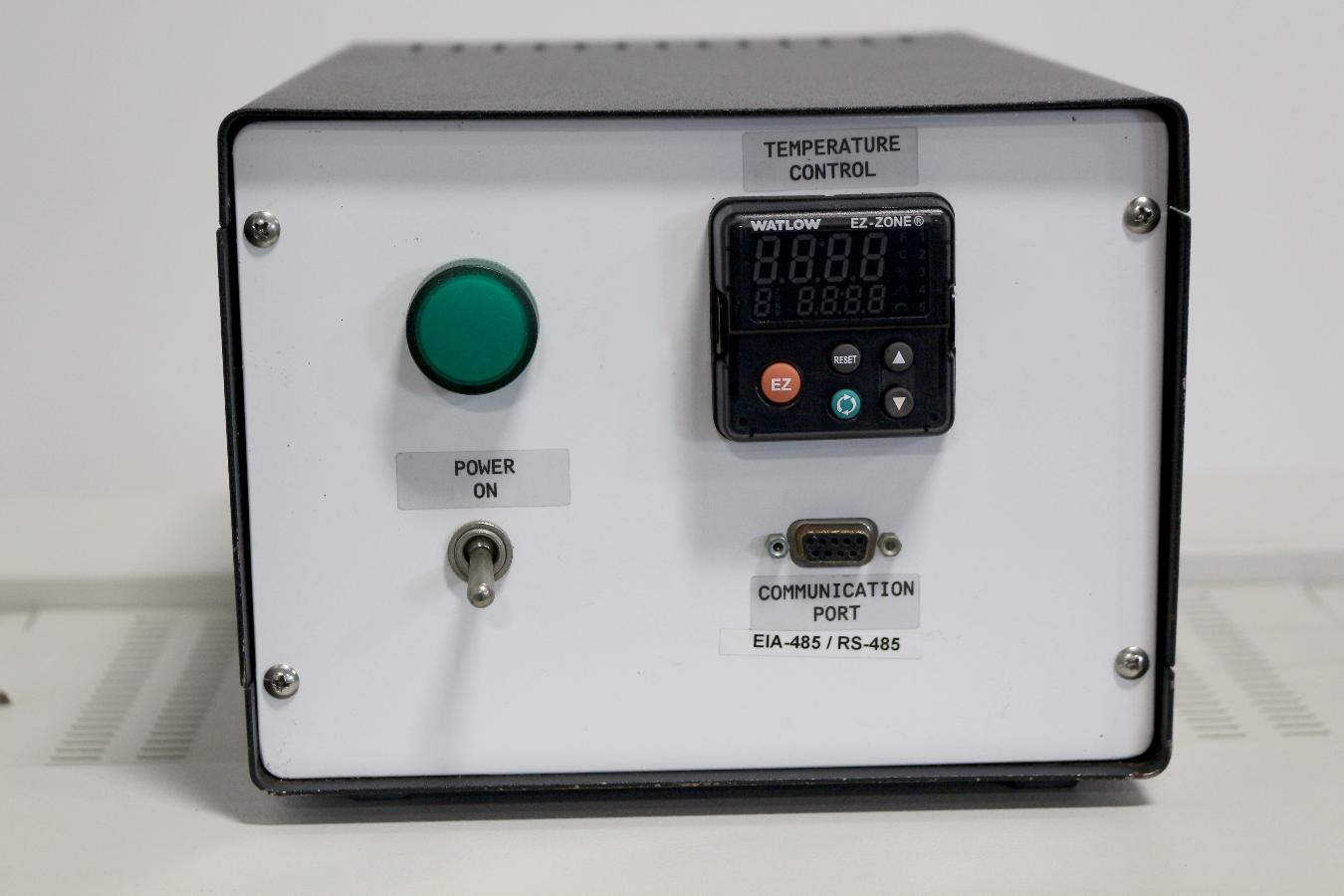

  Controller Manufacturer/Model Watlow EZ-Zone PM6R1CA-ALAJAAA
  Number of Control Zones 1
Tube Dimensions Diameter: 4.50  in  (11.43 cm)     Length: 18.00  in  (45.72 cm)
Thermocouple Type Type K
Retort Included YES
Accessories

Watlow PM6 controller with High Limit protection. and Profiling ramp and soak option.
Up to 40 steps and four profiles, no real time clock or battery back-up option.

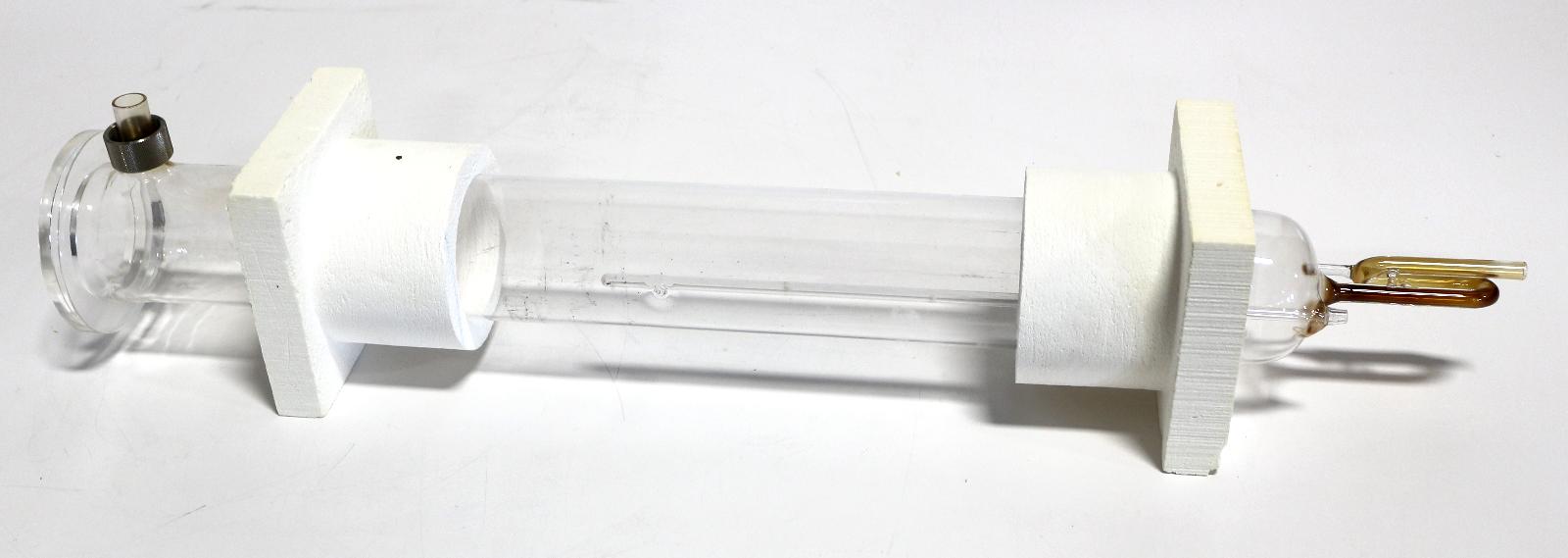

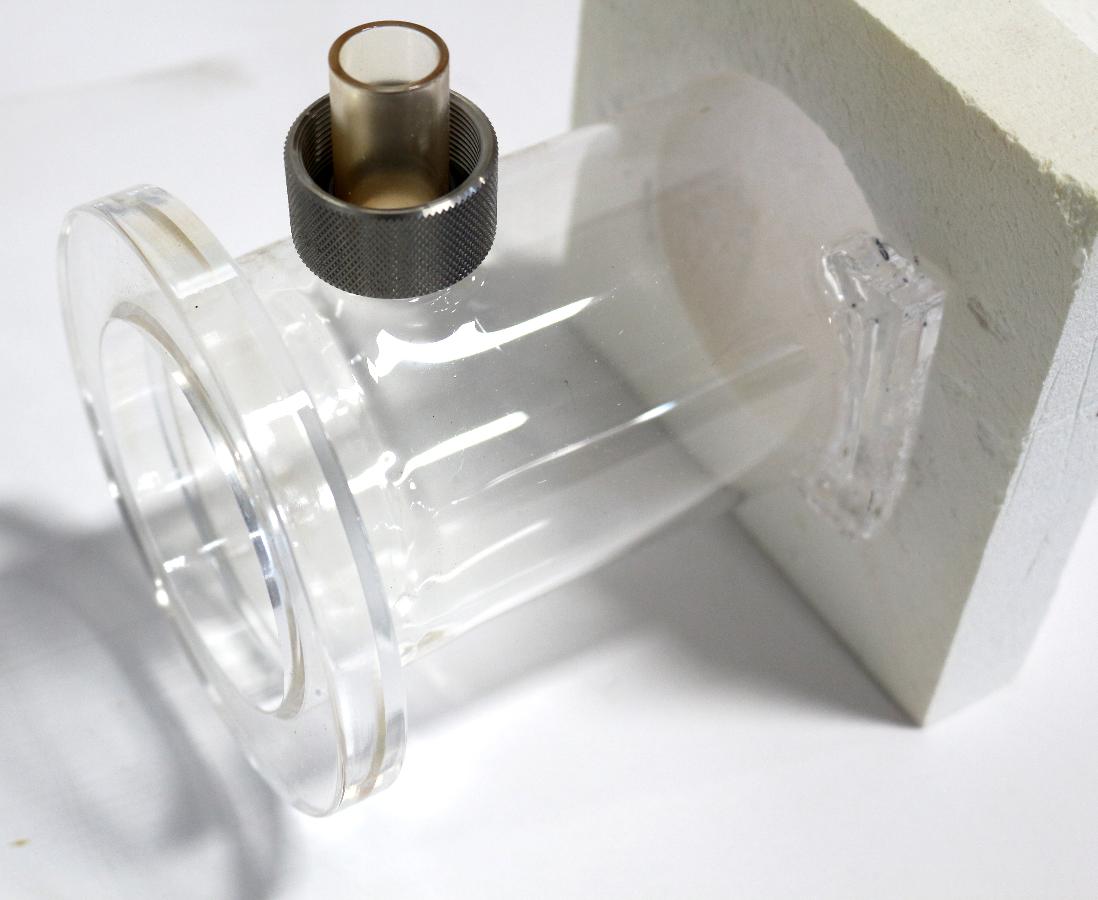

Retort:
Material Unknown,  either pyrex or quartz
Overall Length 23"  end to end.
3" ID.  sealed on one end, other end open.

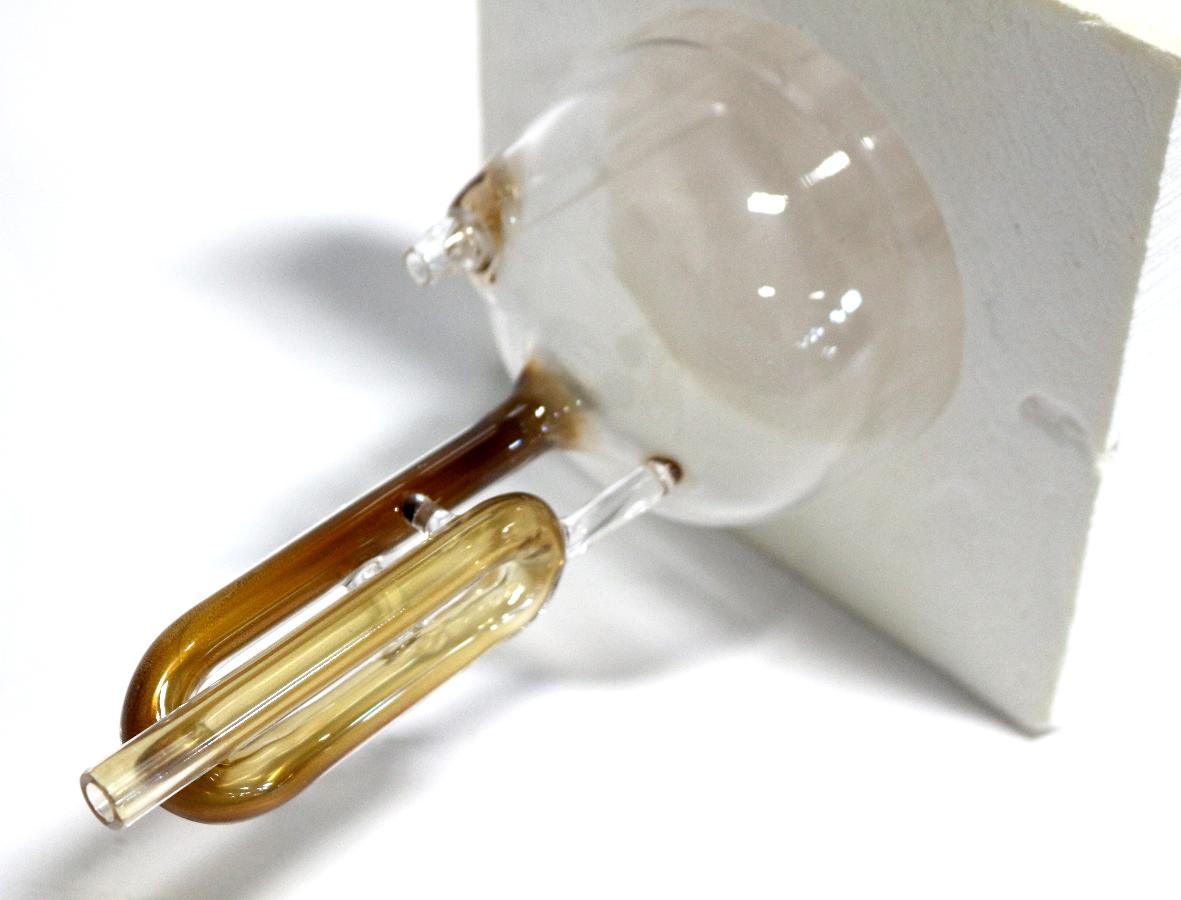

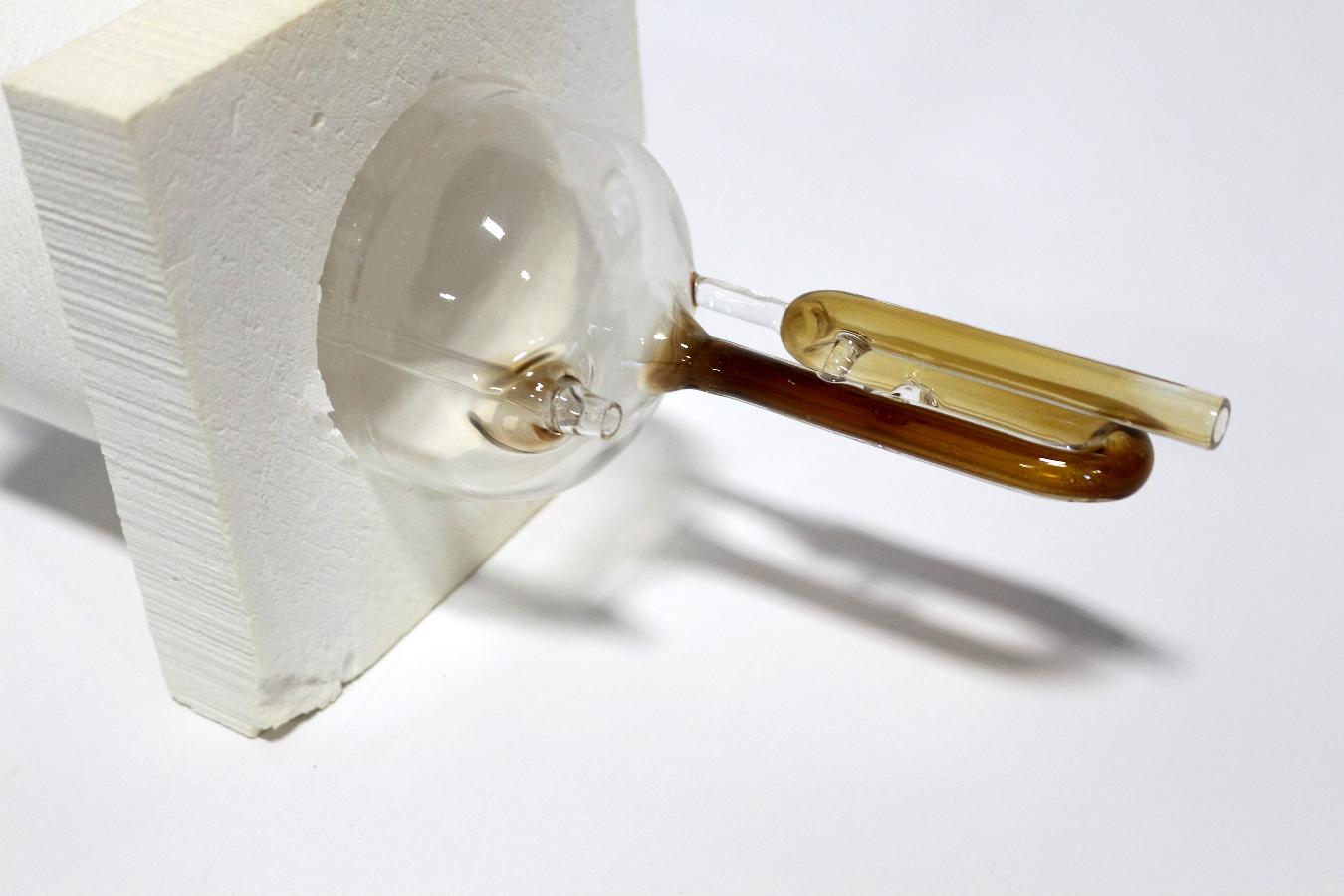

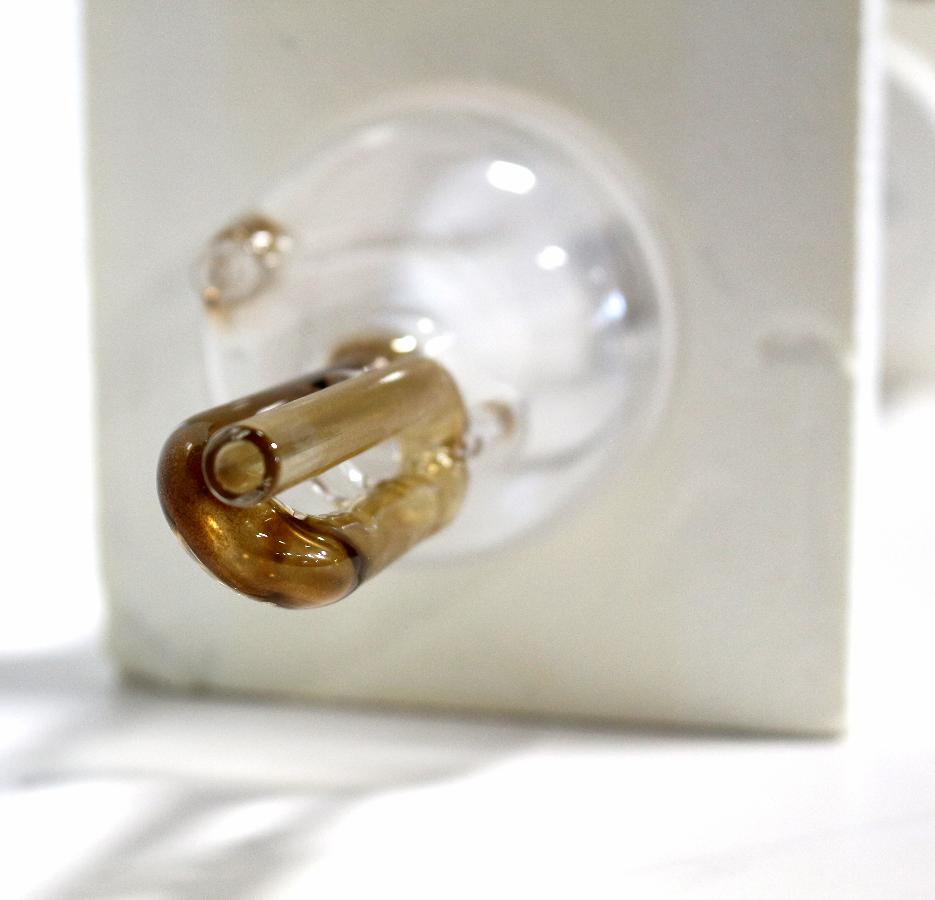

Gas feed tube inside retort,  see other images for details.

Other Information

Refractory ID 3.5"

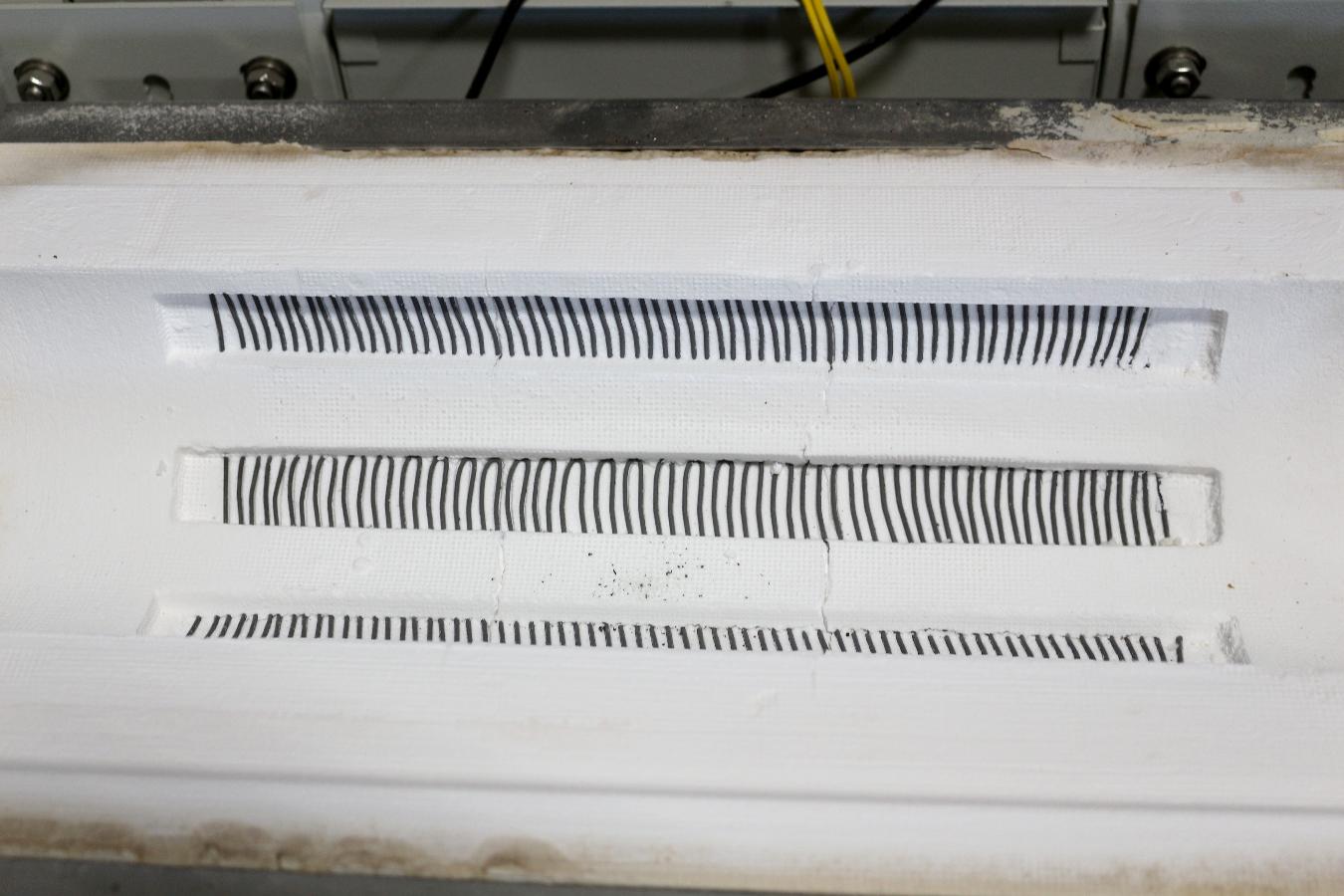

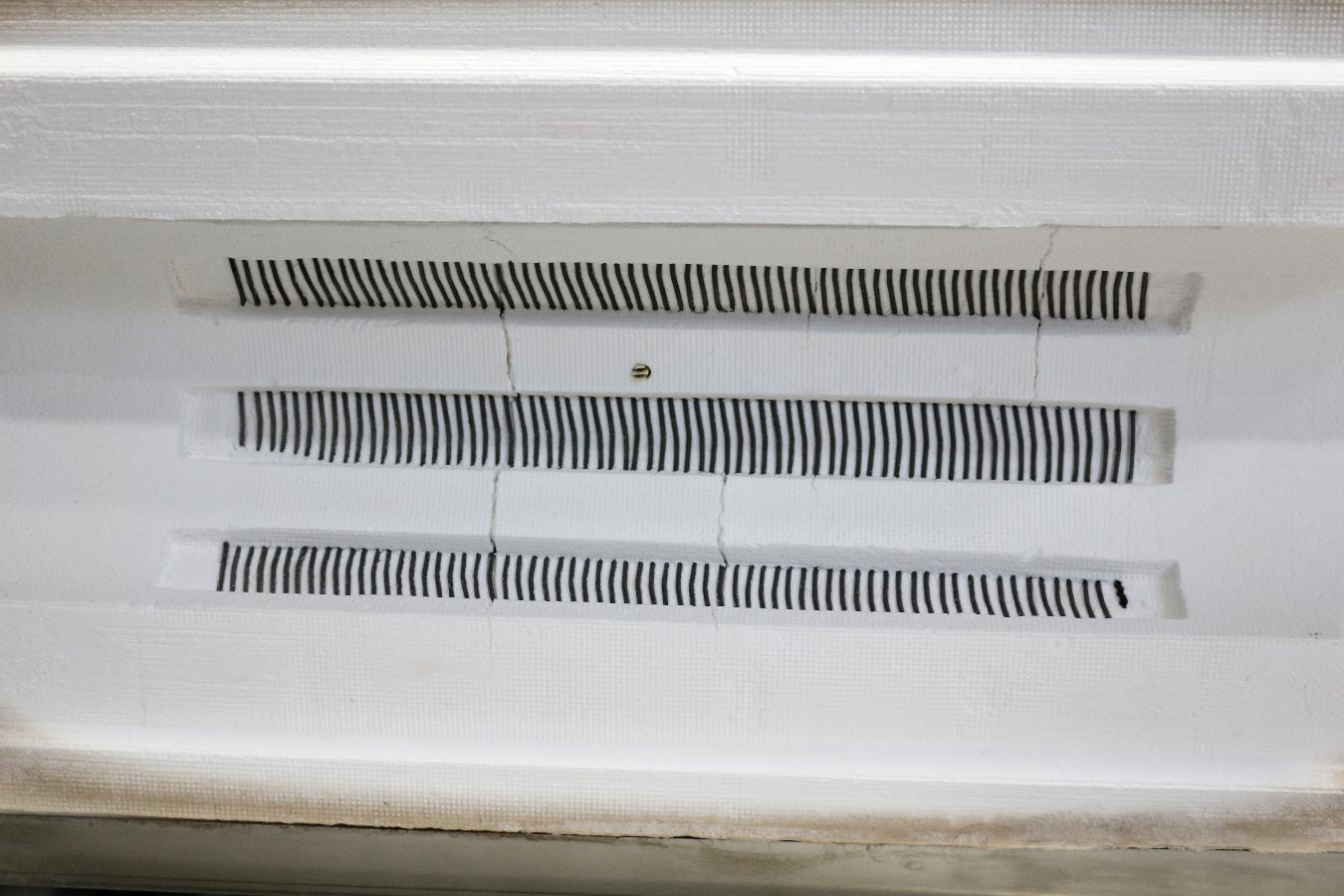

Hot Zone 12"
Heater 2.67 KW

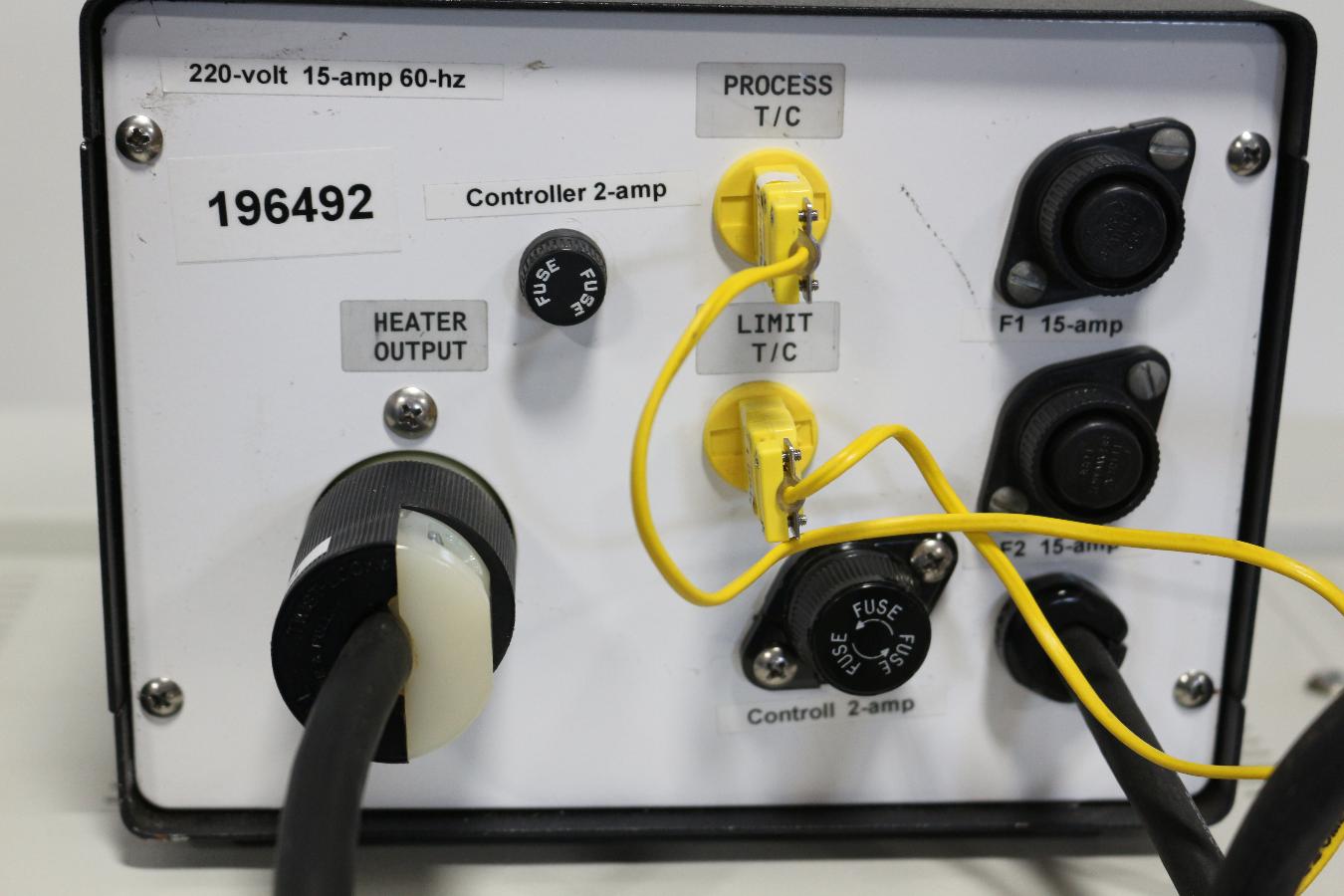

Power Requirements 240 V     12.0 A     50/60 Hz     1 Phase
Exterior Dimensions
  Width 20.000  in  (50.8 cm)
  Depth 23.000  in  (58.4 cm)
  Height 17.000  in  (43.2 cm)
