FULL DESCRIPTION of Item 18710

in Vacuum Throttle Valves
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 18710

Offered 1 Offered at $ 2,800.00

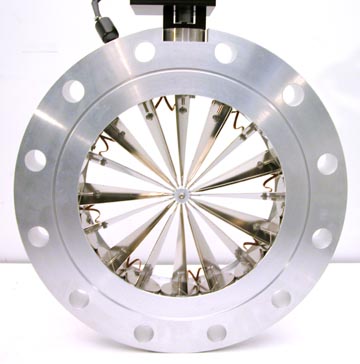

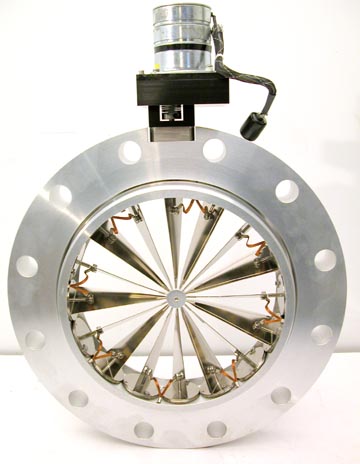

MEIVAC INC. CRYO COOLED THROTTLE VACUUM VALVE ASA

Cryo Cooled Throttle Vacuum Valve


MEIVAC INC. CRYO COOLED THROTTLE VACUUM VALVE ASA
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price $ 2,800.00
Number of Units 1
Manufacturer Meivac Inc.
Model CVQ-10-ASA-U-SM
Valve Actuation Electric
Flange Type ASA
Flange Size 254.00  mm  (10.00 in)
Valve Material  Aluminum
Accessories

The CVQ selectively pumps the condensables on the surface of cryogenically cooled vanes while throttling the process gas at a differential pumping ratio of 20 to 3000 l/sec (process gas to condensables).

Other Information

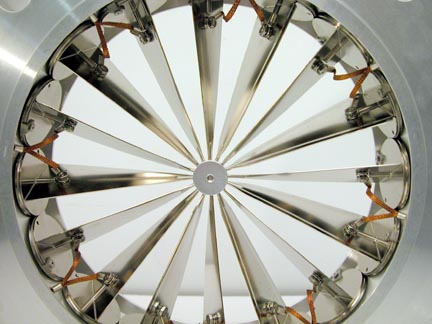

Stainless steel vanes
Flange I.D.: 9.868"
Flange O.D.: 16"
Bolt circle: 14.25"
12 bolts at 1" diameter

May be controlled by:
Meivac model 2252 controller
MKS model 252 and or 651 controller

Condition New-Never Used
Exterior Dimensions
  Width 16.000  in  (40.6 cm)
  Depth 2.000  in  (5.1 cm)
