FULL DESCRIPTION of Item 185530

in Temperature & Humidity Chambers
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 185530

Offered 1 Offered at Best Price

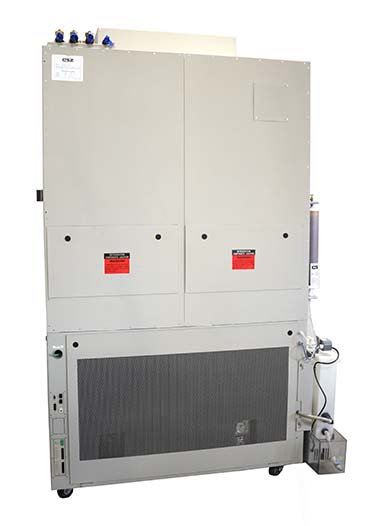

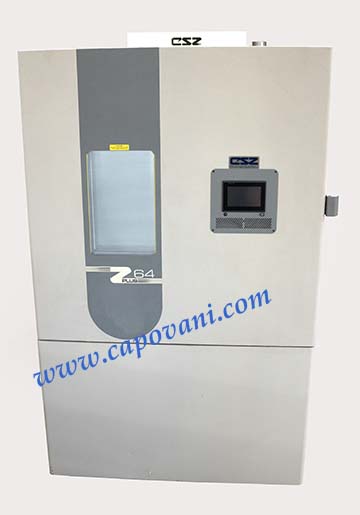

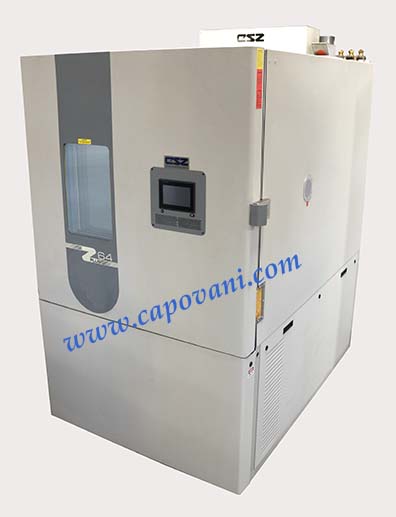

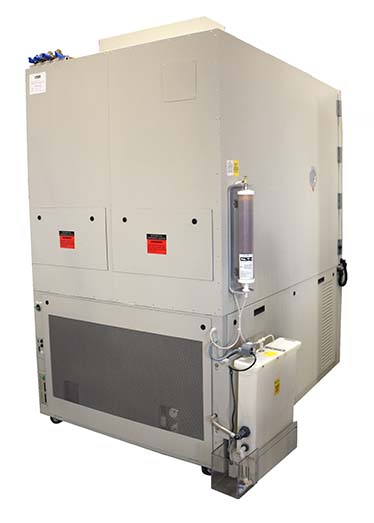

CINCINNATI SUB-ZERO TEMP/HUMIDITY CHAMBER, 64 CUBIC FEET AIR COOLED

Temperature and Humidity Chamber -- Air-Cooled

CINCINNATI SUB-ZERO TEMP/HUMIDITY CHAMBER, 64 CUBIC FEET AIR COOLED
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Cincinnati Sub-Zero
Model ZPHS-64-15-15-SC/RAC
Minimum Temperature -73  ºC  (-99 ºF, 200.00 ºK)
Maximum Temperature 190  ºC  (374 ºF, 463 ºK)
Humidity Range 10% - 98%
Heat/Cool Controls
  Control Type Programmable
  Controller Manufacturer/Model CSZ 570i
Capacity/Volume Box 64.00  cu ft  (1.81 cu m)
Chamber Characteristics

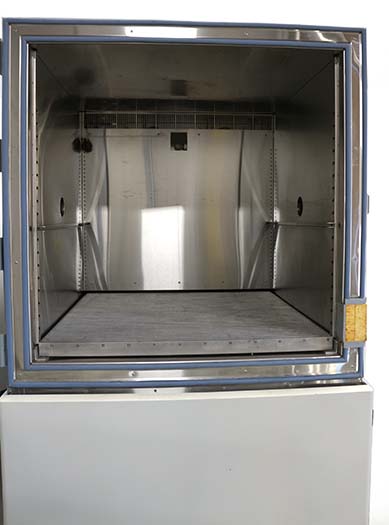

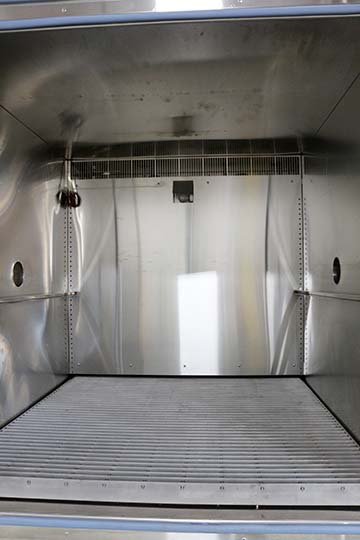

  Chamber Construction Stainless Steel, Reinforced Floor 1000 lb.
External Cooling Air Cooled
Other Information

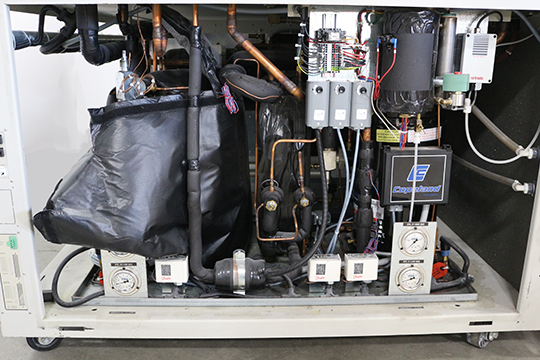

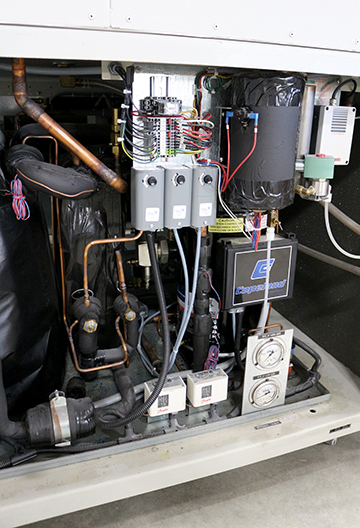

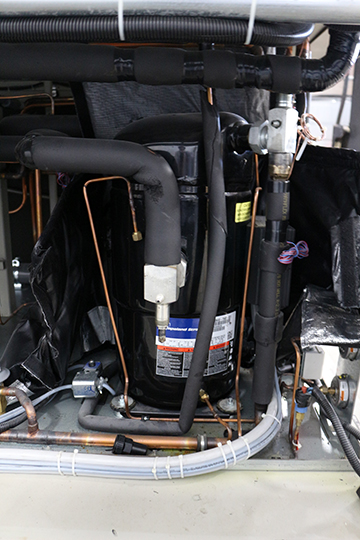

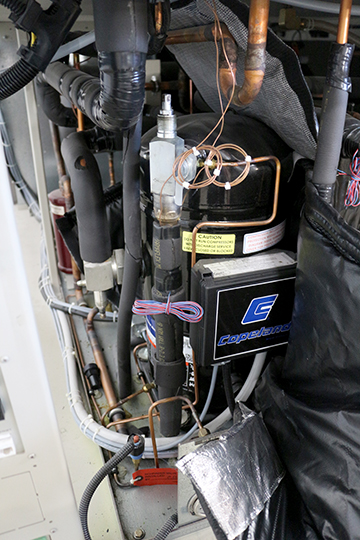

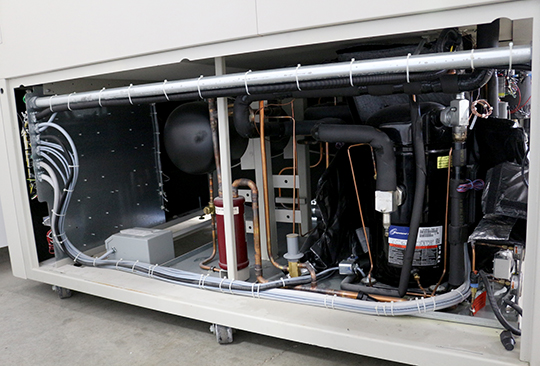

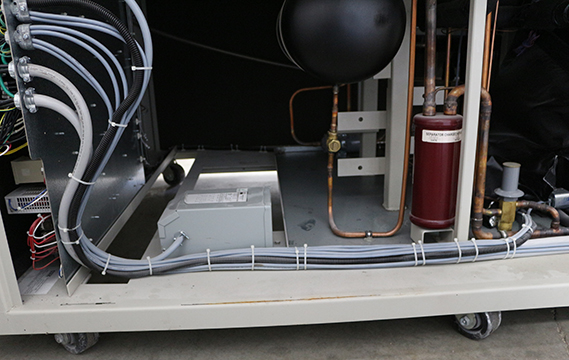

Cascade refrigeration

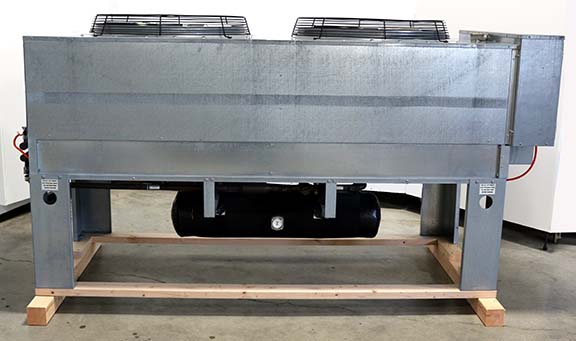

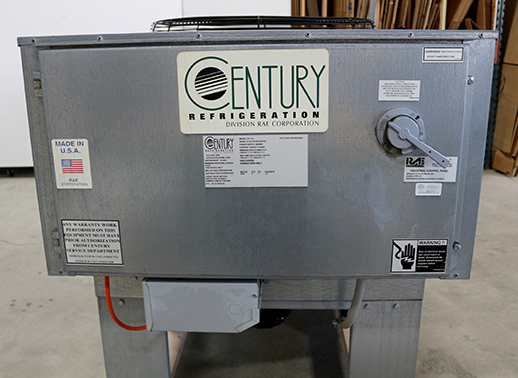

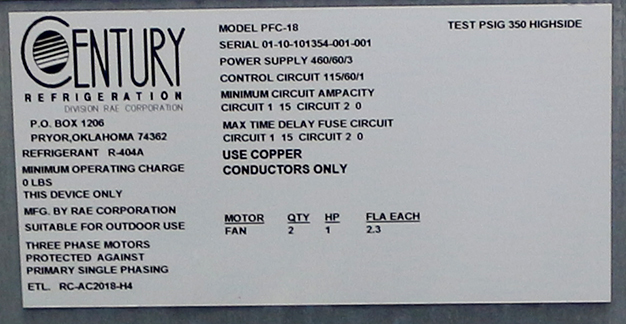

Century Model PFC-18 remote air-cooled (see extended description below for details.)

Recirculating humidity water supply
Max fused amps:  110

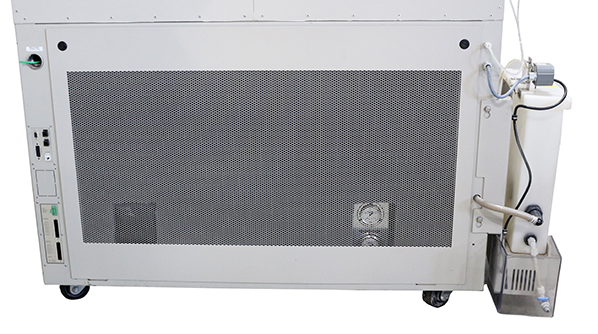

Humidity water reservoir is ~10" wide and mounted on the side of unit.   This can be removed and relocated.   Dimension below account for the reservoir being mounted on the side.

Extended Description  Details at Century PFC Series Air Cooled Condensers.pdf
Power Requirements 480 V     81.0 A     60 Hz     3 Phase
Exterior Dimensions
  Width 70.000  in  (177.8 cm)
  Depth 80.000  in  (203.2 cm)
  Height 103.000  in  (261.6 cm)
