Item ID: 184566

**1 Offered at $ 875.00**

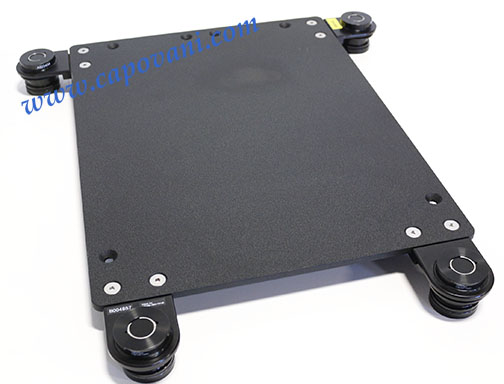

VISTEK NEWPORT MECHANICAL VIBRATION ISOLATION PLATFORM 18" X 24"

Mechanical Vibration Isolation Platform

... other images

Location: Scotia, New York

Unit Price	$ 875.00
Number of Units	1
Manufacturer	Newport
Model	VIB 320-2947
Width	18.00 in (45.72 cm)
Length	24.00 in (60.96 cm)
Work Surface	Solid Aluminum
Accessories	(4) VIB 320-2947 Mechanical Isolators-- max. load per isolator is 47 lbs. (4) VIB- BRKT (1) VIP320-1824-70140 Platform Minimum load needed for optimum isolation: 120 lb Maximum load as confirgured: 140 lb.

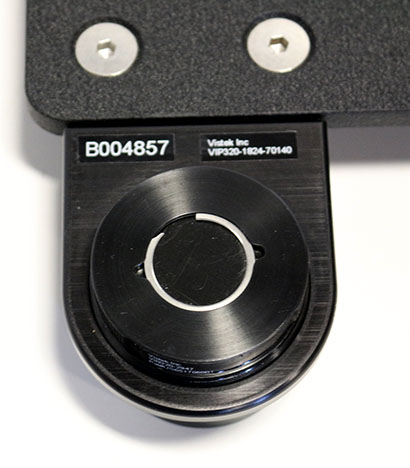

Other Information	The VIB320-2947 bearing is a self-contained unit that provides both vertical and horizontal isolation from 29 lbs (13.2 kg) to 47 (21.4 kg) lbs. The isolators feature a 6.7Hz vertical resonance frequency that begins isolating at 9Hz and a horizontal resonance of 6.3Hz with isolation beginning at 8Hz. This is sufficient performance to eliminate 85% of vibration noise seen within typical laboratories. The VIB320 bearings attach to the VIBe base plate via specially designed brackets that feature a threaded aperture to allow leveling adjustment of the platform.
Exterior Dimensions
Width	25.000 in (63.5 cm)
Depth	28.000 in (71.1 cm)
Height	2.000 in (5.1 cm)
Weight	50 lb (23 kg)
