360104 standard Electrometer with Stabil-ion remote control
360105 for single convectron gauge
Optional 6 channel process control board, can be added if available, +$545

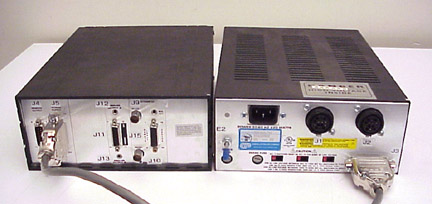

Cable between controller and the power supply included.
Ion gauge cables see items 6799, 179524, 209733
|Other Information |
This controller can be calibrated for different ion gauges, calibration for each channel is loaded via memory modules.
- If you have standard Bayard-Alpert glass gauge, CBI can upload average calibration for that gauge with sensitivity 10/Torr to channel one, two or both.
- If you have Stabil-Ion gauge with individual module containing calibration for that gauge, you should upload that to the controller before using it.
- If you have Stabil-Ion gauge without individual module, CBI can upload average calibration with sensitivity 50/Torr to channel one, two or both.
Specify type and sensitivity of your gauges when ordering.
Features and controls: Two ion gauges in sequential operation
One Convectron gauge
Electron Beam Degas
Click here for the manual
