FULL DESCRIPTION of Item 160653

in High Voltage Power Supplies
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 160653

Offered 1 Offered at Best Price

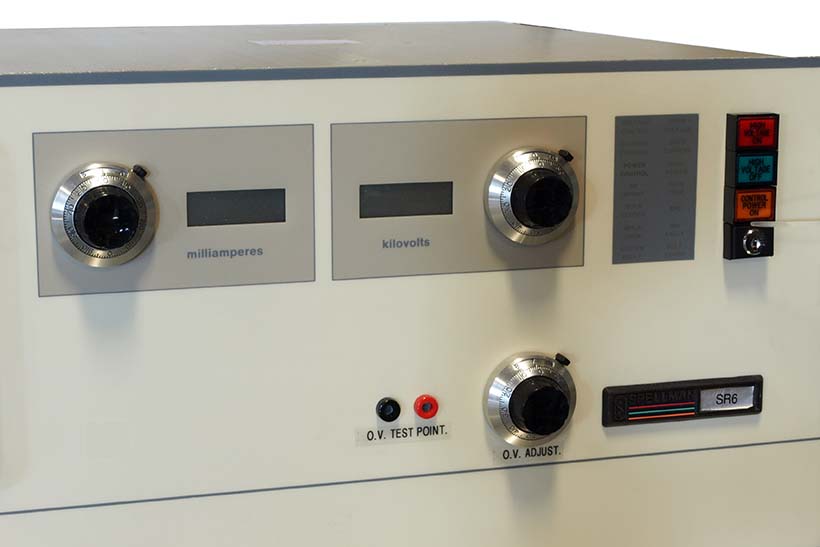

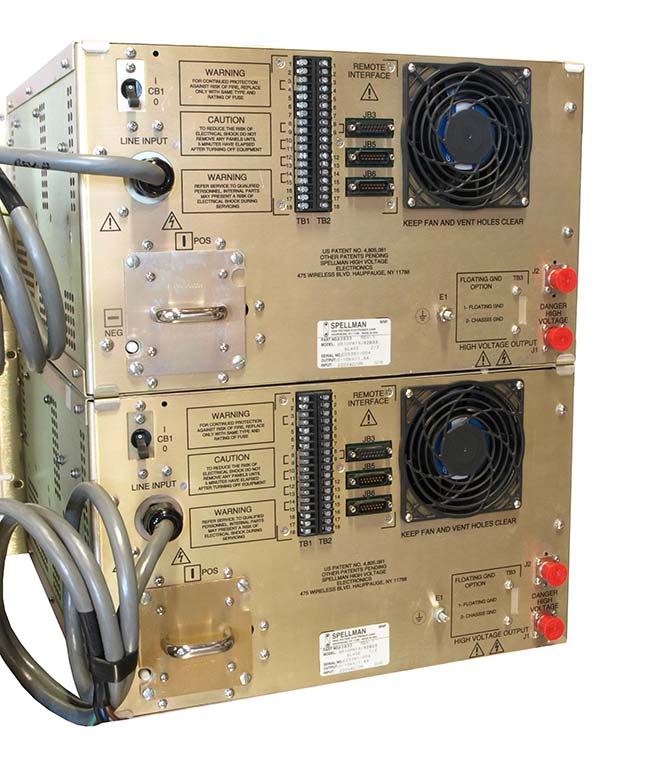

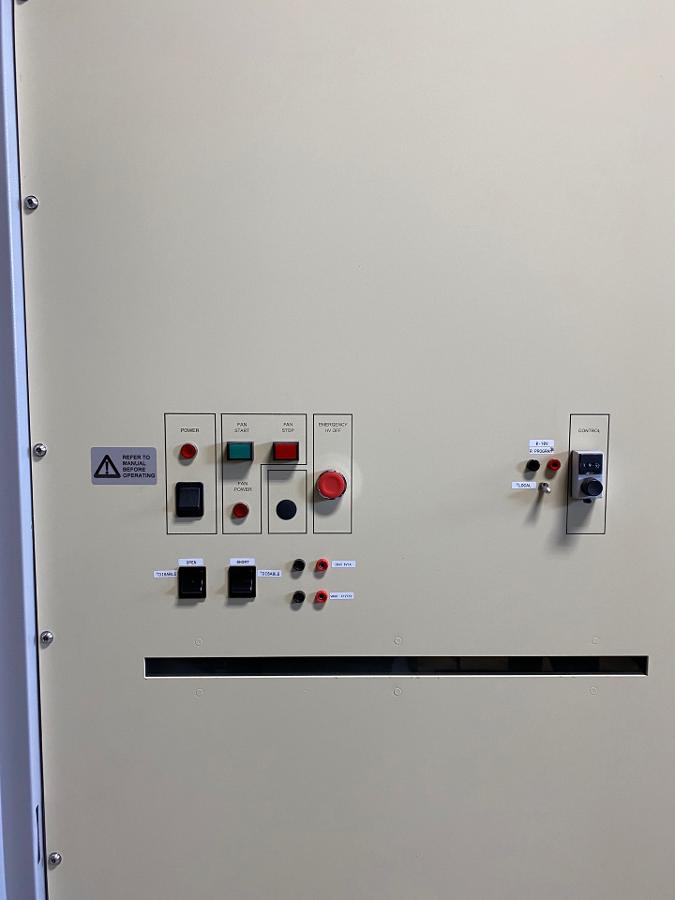

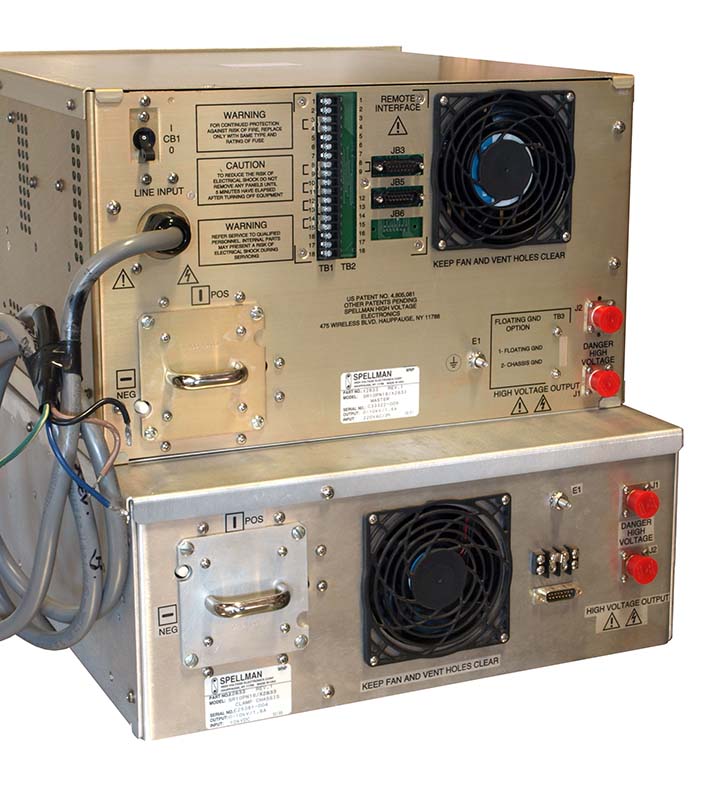

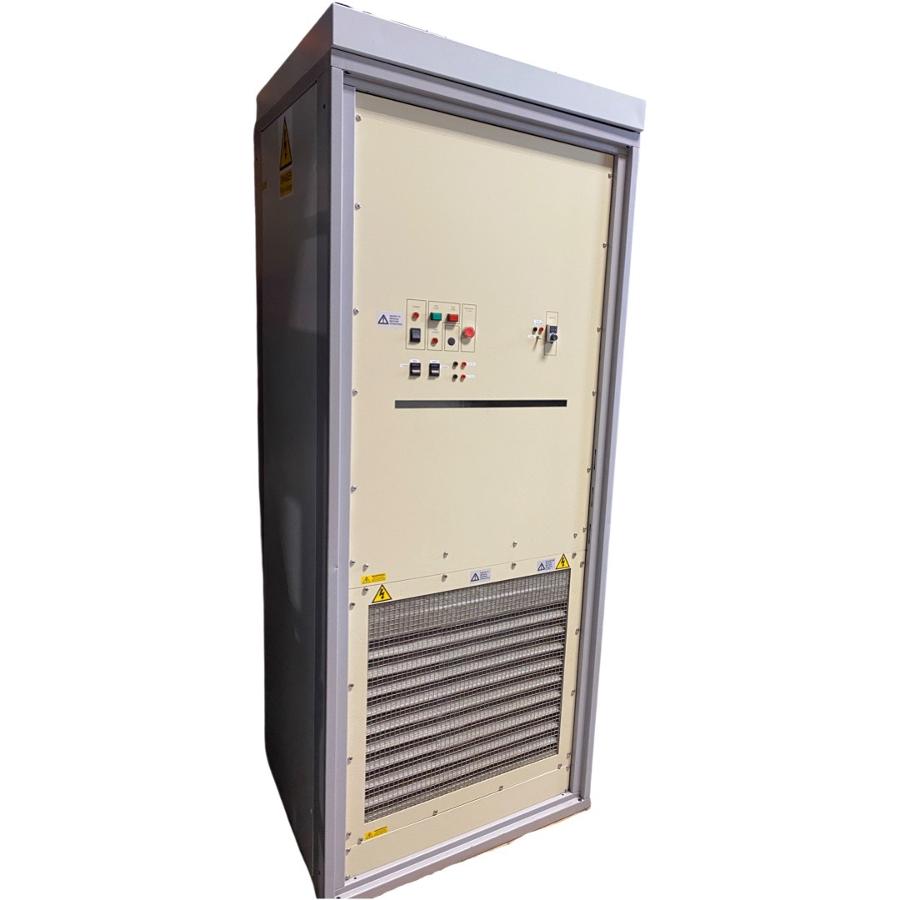

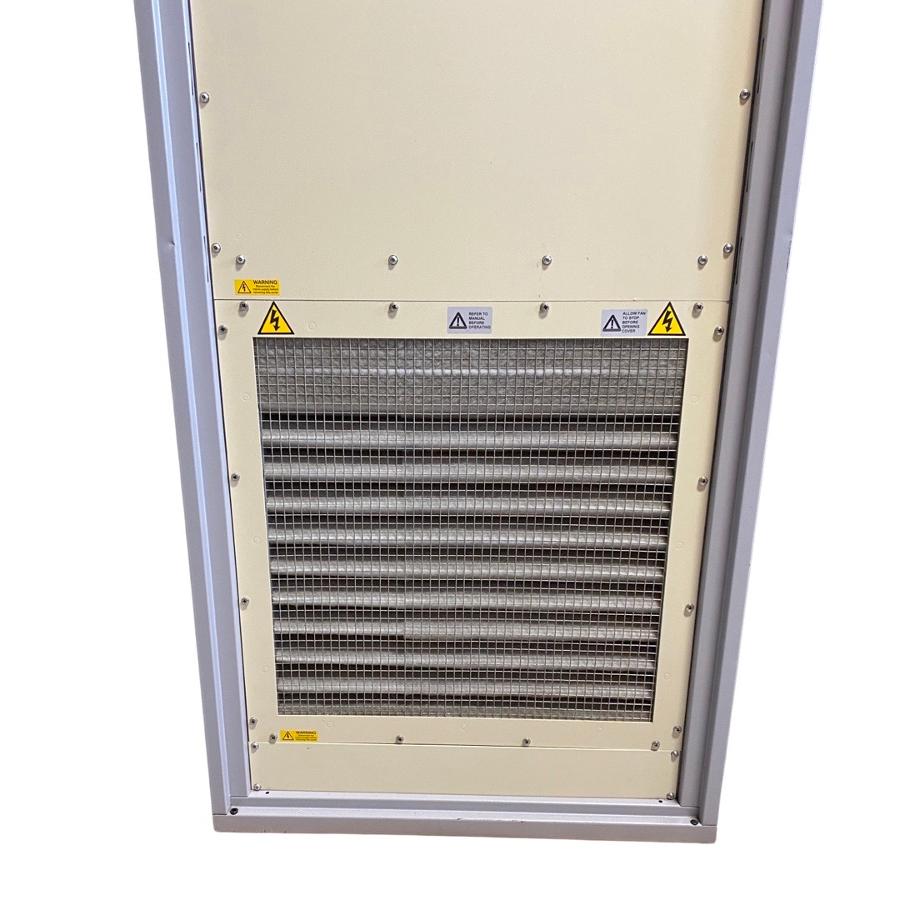

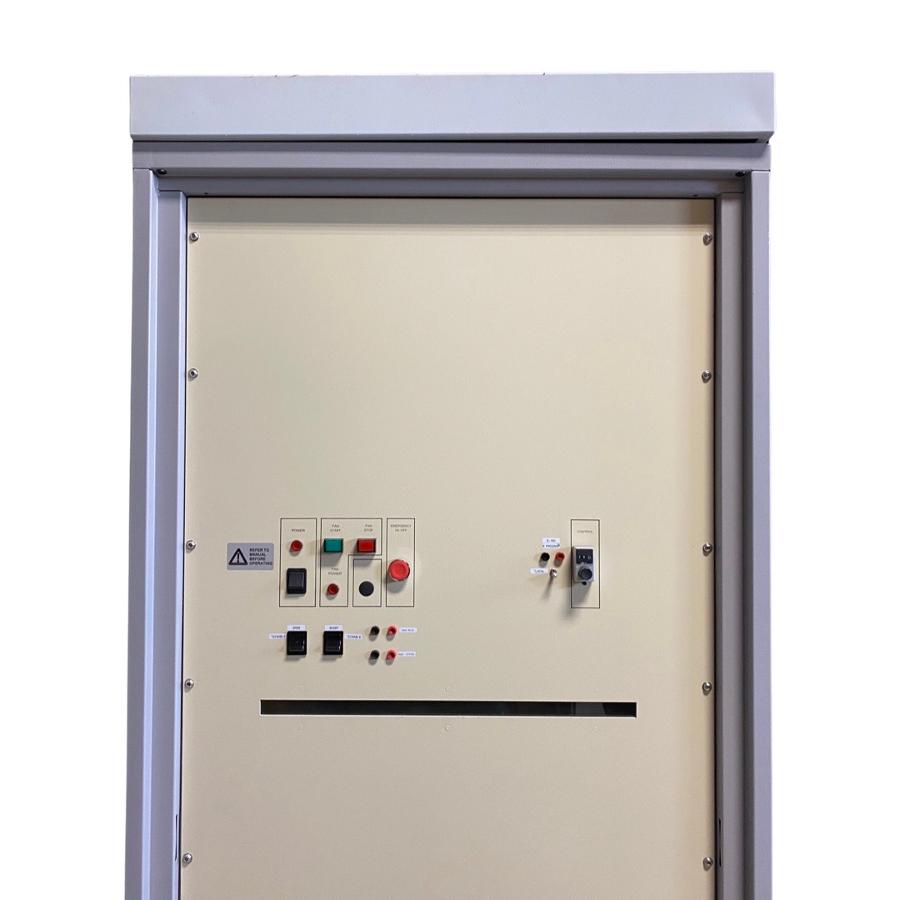

SPELLMAN HIGH VOLTAGE POWER SUPPLY, 10 kV

Shipborne Power Feed Equipment (P.F.E.)
Used on cable laying ships for submarine fiber optic telecomunication cable installations.

SPELLMAN HIGH VOLTAGE POWER SUPPLY, 10 kV
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Spellman
Model SR10PN16/X2833
Maximum Output Voltage 10.0 kV
Maximum Output Current 1,600.0 mA
Bipolar Yes
Panel Meters Digital
Accessories


Control Inter Connect Cables

High  Voltage Inter Connect Cables

Output High  Voltage Cable is not included,
3M (10') HV cable add $180, inquire about longer cables

Other Information

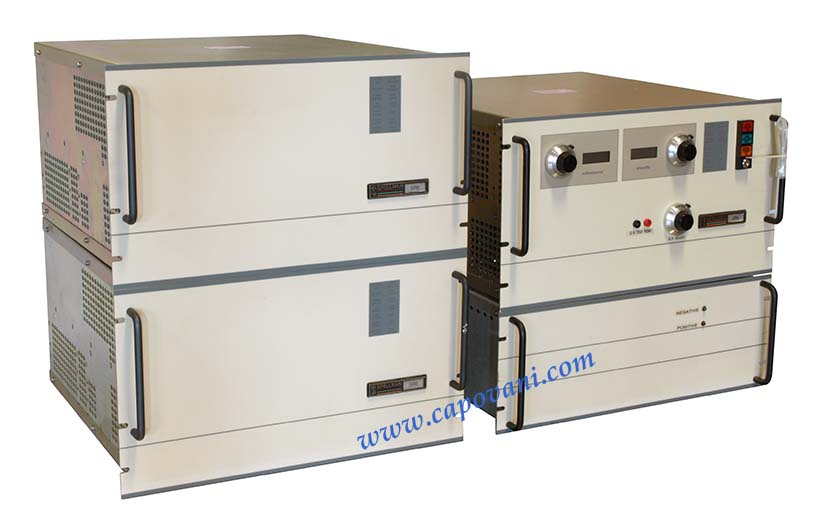

System Consist of The Following :

M/N SR10PN16/X2833 (Master)
P/N X2833 Rev 1

M/N SR10PN16/X2833 (Slave)
P/N X2833 Rev 1

M/N SR10PN16/X2833(2nd Slave)
P/N X2833 Rev 1

M/N SR10PN/X2833 (Clamp Chassis)
P/N X2833 Rev 1

Solid State Dummy Load

Maximum output current of 1.6A is for the master and two slaves combined

We will not honor our 90 day warranty if this power supply will be used for the spark gap applications



Power Requirements 220 V     50/60 Hz     3 Phase
Exterior Dimensions
  Width 19.000  in  (48.3 cm)
  Depth 19.000  in  (48.3 cm)
  Height 10.500  in  (26.7 cm)
