Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York
Item ID: 155500

Offered 1 Offered at $ 11,000.00


Belt Abrading System

  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price $ 11,000.00
Number of Units 1
Manufacturer Crystal Mark Inc
Model SWAM C-115
Description Belt Abrading Machine

Parts,consumables and service for the Swam C-115
are available from Crystal Mark
Contact #800-659-7926

Other Information

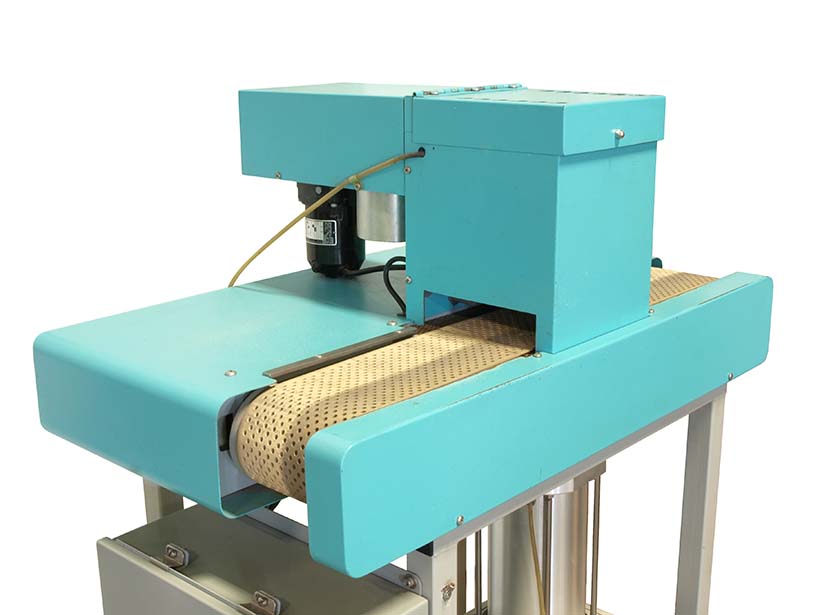

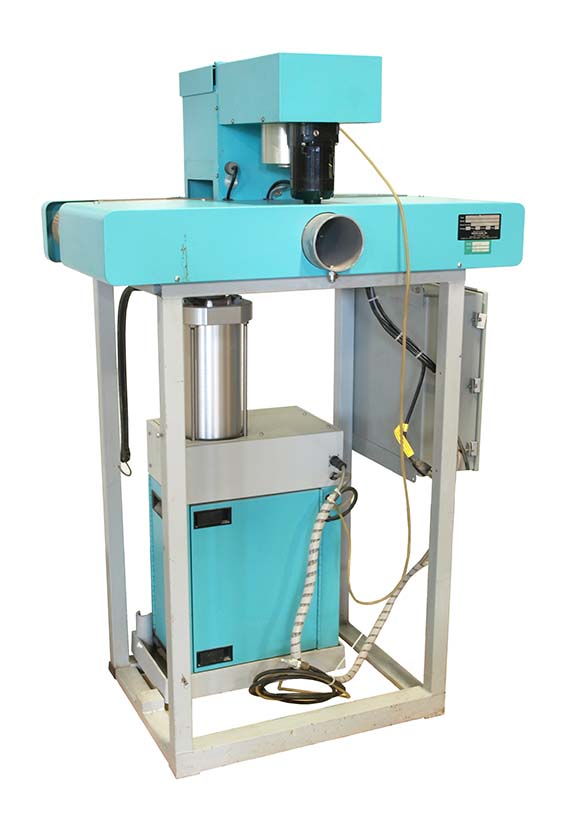

The SWAM C-115 Belt Abrading Machine is a system
for removing oxides and junctions from silicon and germanium slices.
It is also used for texturing, etching, and back-lapping wafers, as well as frosting quartz and glass.

These objectives are accomplished by the
interfacing of four separate components:

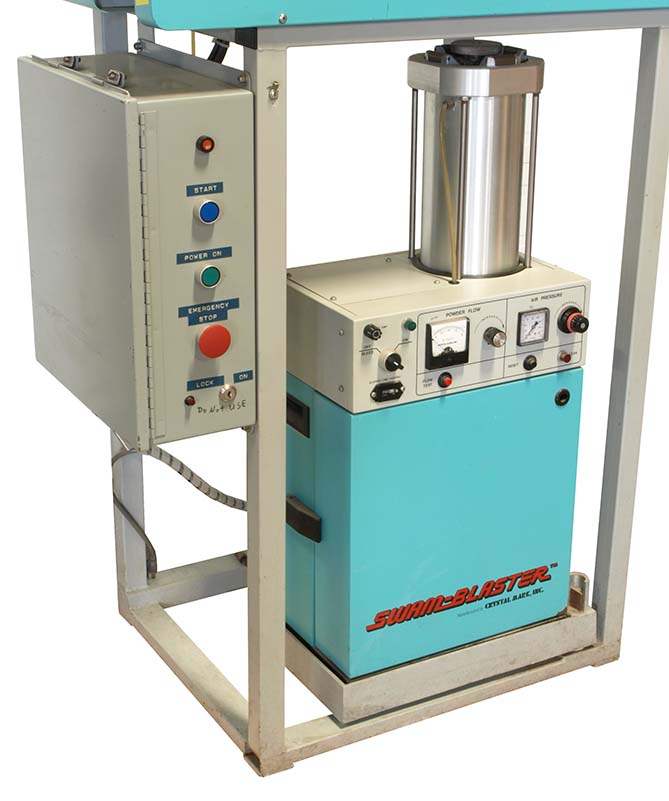

1) The SWAM-BLASTER Model C-115 Precision Sandblaster.
2) A reciprocator to move the nozzle back and fore over the belt.
3) A conveyor belt system that transports substrates under the reciprocator nozzle(s).
4) A dust collector to remove spent media from the work area

Dust collection system requirements:
22,650 L/M at 14 cm E.S.P.W.G. at a velocity of 1370 M/M.
Dust collector model DC-100 not included avaiable from Crystal Mark

Power Requirements 115 V     5.0 A     60 Hz     1¬†Phase
Exterior Dimensions
  Width 35.500  in  (90.2 cm)
  Depth 21.000  in  (53.3 cm)
  Height 56.500  in  (143.5 cm)
Weight 332  lb  (151 kg)
