FULL DESCRIPTION of Item 124136

in Multiple Gauge Controllers
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 124136

Offered 2 Offered at $ 1,095.00 (each)

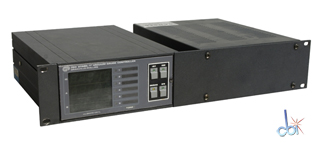

GRANVILLE PHILLIPS ION/DUAL CONVECTRON CONTROLLER

Ion/Dual Convectron Controller

Granville Phillips Model 360, can replace 307 controller

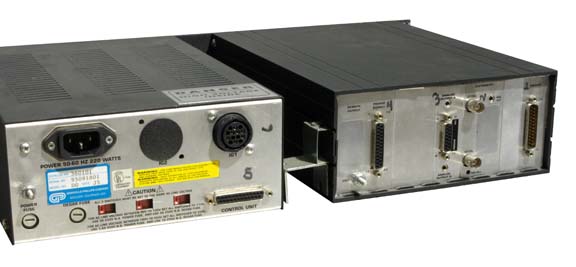

Picture of the controller's back panel is representative

GRANVILLE PHILLIPS ION/DUAL CONVECTRON CONTROLLER
  Click to see additional image(s)... other image

Location: Scotia, New York
Unit Price $ 1,095.00 (each)
Number of Units 2
Manufacturer Granville Phil
Model 360
Description Single Ion/DualConvectron Controller
Gauge Types Controlled Ion; Convectron
Cables Included No
Accessories


Contains:

Ion gauge module

Add $60 to upgrade for dual ion gauge sequential operation

360106 Dual Convectron module
Remote module
RS232 module

Does NOT have remote I/O

Optional 6 channel process control board, can be added if available, +$545

Cable between controller and the power supply included.

Please inquire about availability of gauges and serial communication board.

Ion gauge cables see items 6799, 179524, 209733

Other Information


This controller can be calibrated for different ion gauges, calibration for each channel is loaded via memory modules.

  • If you have standard Bayard-Alpert glass gauge, CBI can upload average calibration for that gauge with sensitivity 10/Torr to channel one, two or both.
  • If you have Stabil-Ion gauge with individual module containing calibration for that gauge, you should upload that to the controller before using it.
  • If you have Stabil-Ion gauge without individual module, CBI can upload average calibration with sensitivity 50/Torr to channel one, two or both.

Specify type and sensitivity of your gauges when ordering.

Follow this link for the manual

Power Requirements 115 V     50/60 Hz     1 Phase
