Item ID: 114218

**1 Offered at Best Price**

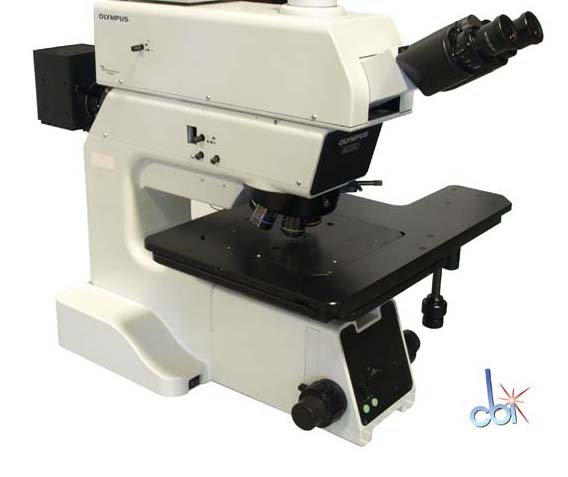

OLYMPUS MICROSCOPE, REFLECTED LIGHT - BRIGHTFIELD, DARKFIELD/DIC

Reflected Light Real-Time Confocal Microscope

... other images

Location: Scotia, NY

Unit Price	Unstated
Number of Units	1
Manufacturer	Olympus
Model	MX50-CF
Microscope Configuration	Brightfield, Darkfield & DIC
Illumination Type	Hg Reflected Light
Binocular Angle	Variable

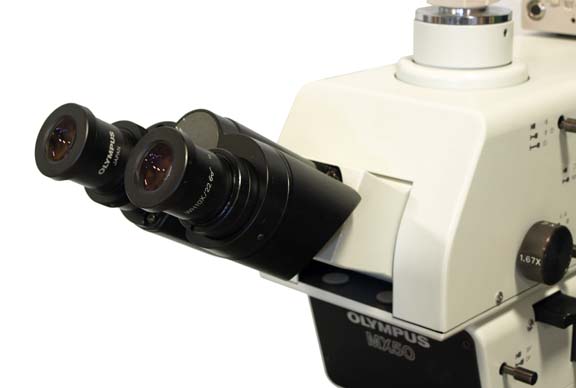

Eyepieces
Model	Olympus WH
Magnification	10 X
Field Number	22 mm
Trinocular/Phototube Provided	YES
Magnification Changer	1.67x, 2x, 2.5x
Motorized Nosepiece	YES

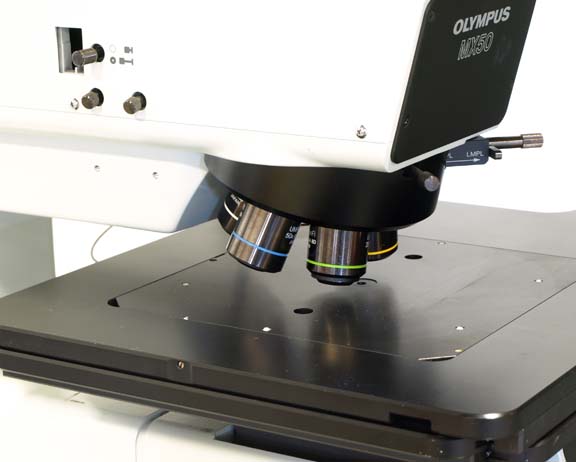

Multiple Objectives Models	UM Plan FL 10x/0.30 BD UM Plan FL 20x/0.46 BD UM Plan FL 50x/0.80 BD UM Plan FL 100x/0.90 BD
Polarizer	YES
Analyzer	YES
Illumination Power	*Volts:* 19 *Watts:* 100
Power Supply Included	YES
Stage Type	Coaxial X-Y
Stage Area	*Length:* 311 mm (12.244 in) *Width:* 349.0 mm (13.740 in)
X-Y-Z Stage Travel	X: 203 mm (7.992 in) *Y :* 203 mm (7.992 in)

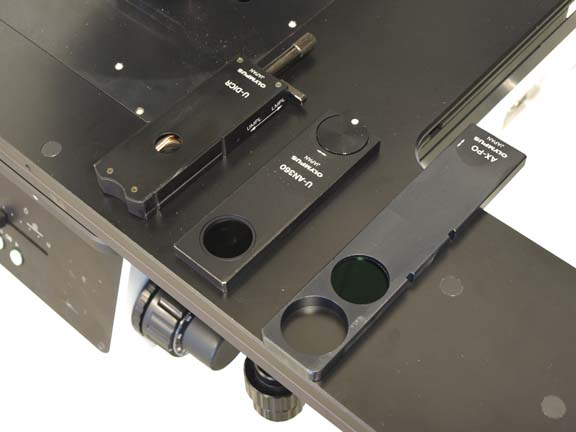

Other Information	Confocal unit part#- MX-CFETTR Analyzer for reflected light part#- U-AN360 Polarizer for reflected light part#- AX-PO DIC Slider for reflected light part#- U-DICR Olympus Stage: Model MX-SIC 8R Halogen lamp for non confocal observation: 12 volt/100 watts Voltage selecter: 100-120 volt 220-240 volt Confocal Observation: Olympus Model U-ULH Mercury Burner Housing. 19 volt/ 100watts Olympus Model- U-RFL-T-200 Mercury Burner Power Supply
Extended Description	Details at MX50_CF.pdf
CE Marked	YES
Exterior Dimensions
Width	20.000 in (50.8 cm)
Depth	32.000 in (81.3 cm)
Height	23.500 in (59.7 cm)
