FULL DESCRIPTION of Item 102739

in Multiple Gauge Controllers
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 102739

Offered 7 Offered at $ 1,450.00 (each)


GRANVILLE PHILLIPS MULTIPLE GAUGE CONTROLLER

Multiple Gauge Controller

Granville Phillips Model 360, can replace 307 controller.

Dual Ion gauge, Dual Convectron gauge and Stabil-ion remote control.

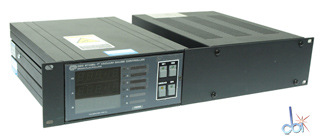

Representative Photo, may be configured as two separate units for half 19" rack mount

GRANVILLE PHILLIPS MULTIPLE GAUGE CONTROLLER

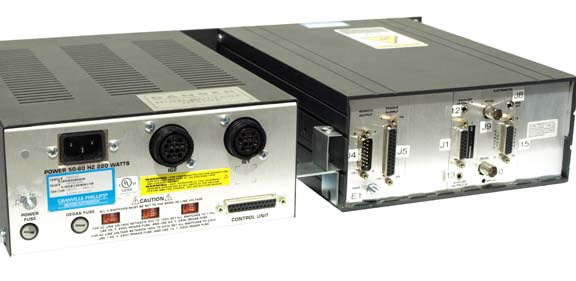

  Click to see additional image(s)... other image

Location: Scotia, New York
Unit Price $ 1,450.00 (each)
Number of Units 7
Manufacturer Granville Phil
Model 360
Description Dual Ion/Dual Convectron Controller
Gauge Types Controlled Ion; Convectron
Cables Included No
Accessories

Contains Modules:
360106 for Dual Convectron Gauges
360104 for Stabil-ion remote control

Cable between controller and the power supply included.

Ion gauge cables see items 179524, 209733 or ask if you need a different ones.

  • Option 1: 360107 6 channel process control board, can be added if available, add $545 to the price
  • Option 2: 19" rack mounting hardware, can be added if available, add $60 to the price

When option 1 and option 2 are added, P/N of the controller will be 360501-01B-T1



Other Information



NB: When ordering, specify type and sensitivity of your gauges and input power 115VAC or 230VAC...

This controller can be calibrated for different ion gauges, calibration for each channel is loaded via memory modules.

  • If you have standard Bayard-Alpert glass gauge, CBI can upload average calibration for that gauge with sensitivity 10/Torr to channel one, two or both.
  • If you have Stabil-Ion gauge with individual module containing calibration for that gauge, you should upload that to the controller before using it.
  • If you have Stabil-Ion gauge without individual module, CBI can upload average calibration with sensitivity 50/Torr to channel one, two or both.

Click here for the manual

Power Requirements 115/ 230 V     50/60 Hz     1 Phase
Exterior Dimensions
  Width 19.000  in  (48.3 cm)
  Depth 11.000  in  (27.9 cm)
  Height 3.500  in  (8.9 cm)
Weight 14  lb  (6 kg)
