Item ID: 102201

**1 Offered at $ 4,350.00**

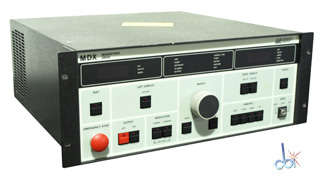

ADVANCED ENERGY DC MAGNETRON POWER SUPPLY 10 KW

DC Magnetron Power Supply

... other image

Location: Scotia, New York

Unit Price	$ 4,350.00
Number of Units	1
Manufacturer	Advanced Energy
Model	MDX 10K
Power Output	10.00 kW
Maximum Output Voltage	1,250.00 Volts
Regulation Modes	Constant Current Constant Voltage Constant Power
Ripple	2% RMS
Output Connector	UHF
Cables Included	No
External Cooling	Forced Air Cooled
Other Information	P/N 2012-091-B High Impedance (High "Z") unit with standard ramp and Aux I options. Three High "Z" tap settings: Output: Positive or Negative (currently set) Tap 1: 0V to 775V, Max 16.00A (currently set) Tap 2: 0V to 1000V, Max 12.80A Tap 3: 0V to 1250V, Max 10.00A Advanced Energy Part number 2012-091-B
Power Requirements	208 V 38.0 A 50/60 Hz 3 Phase
Exterior Dimensions
Width	19.000 in (48.3 cm)
Depth	19.000 in (48.3 cm)
Height	7.000 in (17.8 cm)
Weight	71 lb (32 kg)
