Item ID: 73683

**1 Offered at $ 850.00**

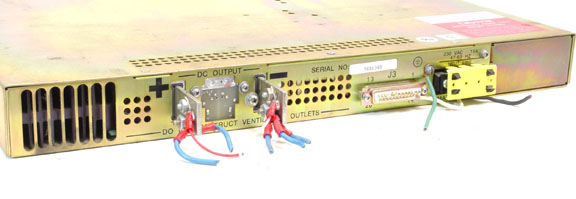

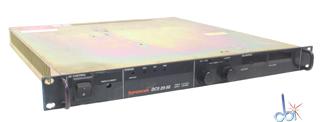

SORENSEN DC POWER SUPPLY 20V, 50A

DC Power Supply

... other image

Location: Scotia, New York

Unit Price	$ 850.00
Number of Units	1
Manufacturer	Sorensen
Model	DCS 20-50
Maximum Output Voltage	20.00 Volts
Maximum Output Current	50.00 Amps
Maximum Output Power	1.00 kW
Regulation Modes	Constant Current Constant Voltage
Ripple	25 mA
Panel Meters	Digital
Interface	I/O Port
External Cooling	Air Cooled
Other Information	Can be converted to 115VAC input internally, request when ordering. Operation mode switch SW1 must be configured internally for you application, request configuration when ordering, see the manual below DCS 1KW 1063986 Rev M.pdf Unit will be warranty sealed and cannot be opened to change configuration without losing 90 days warranty.
Extended Description	Details at DCS 1KW 1063986 Rev M.pdf
Power Requirements	115/ 230 V 10.0 A 20.0 A(2) 47-63 Hz 1 Phase
Exterior Dimensions
Width	19.000 in (48.3 cm)
Depth	19.000 in (48.3 cm)
Height	2.000 in (5.1 cm)
Weight	20 lb (9 kg)
