Item ID: 52623

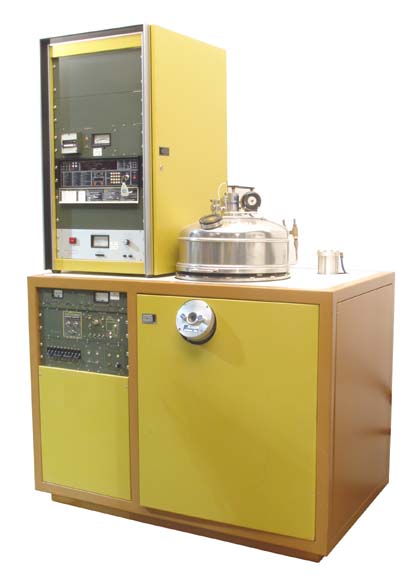

1 Offered at Best Price TEMESCAL FILAMENT EVAPORATOR Filament Evaporator   ... other images

Location: Scotia, New York

Unit Price	Unstated
Number of Units	1
Manufacturer	Airco Temescal
Model	BJD-1800
Description	Filament Evaporator--Cryo Pumped
Vacuum System	Cryo Pumped
Vacuum System	CTI Cryotorr 8 CTI compressor, Water cooled Helium lines and CTI regeneration controller Base pressure in the clean chamber will be in 10-8 Torr range after extended pump down time.
Film Thickness Monitor	No

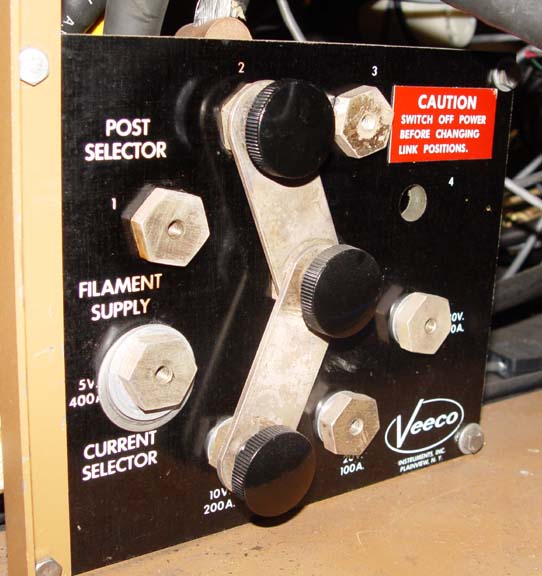

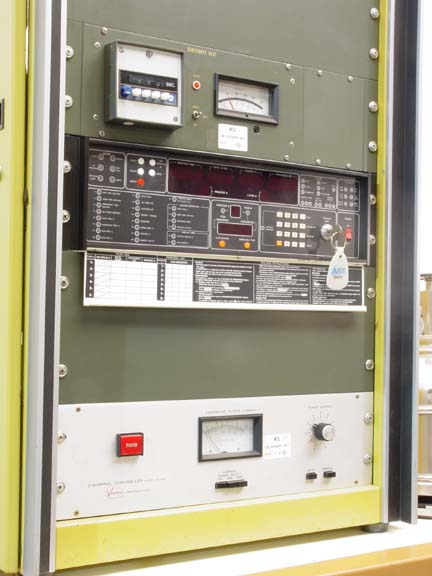

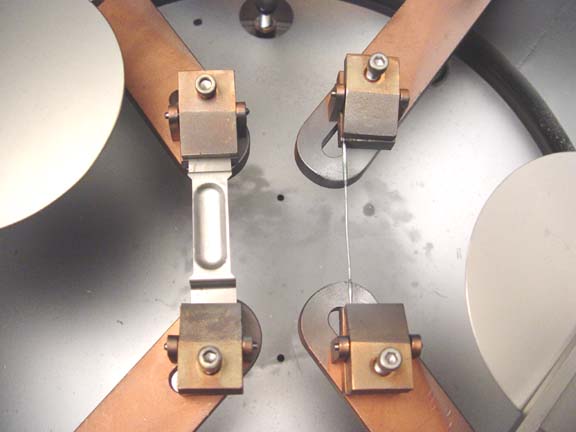

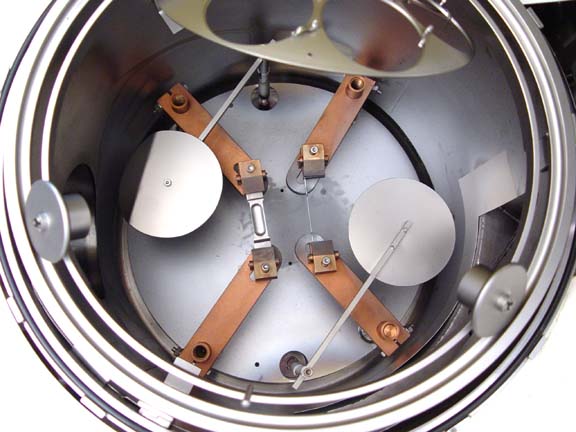

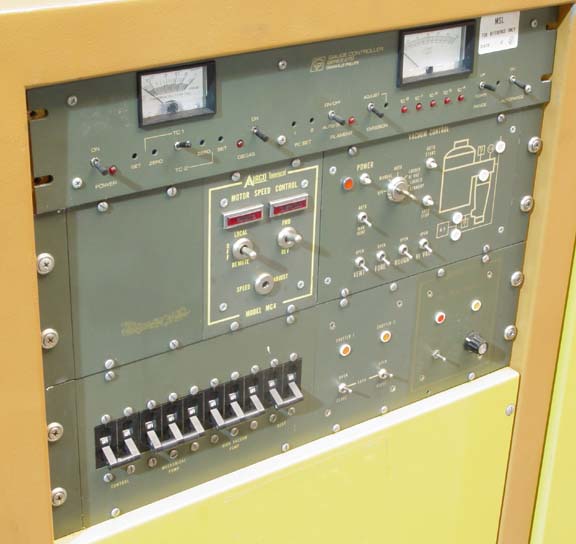

Other Information	Source Chamber 18" Dia x 18" High, water cooled, 304 stainless steel Source Tray 18" Dia flat plate with 10 1" dia. feedthrough ports 1 EMI EMS 7.5V 600A DC Power Supply Two filament boats -  Sequential operation. Granville Philips 307 Gauge Controller with process control NB:  Substrate domes not included.   Film thickness monitor shown not included.
Power Requirements	208 V     70.0 A     60 Hz     3 Phase
Exterior Dimensions
Width	56.000  in  (142.2 cm)
Depth	34.000  in  (86.4 cm)
Height	89.000  in  (226.1 cm)
Weight	1,322  lb  (600 kg)
