Item ID: 243618

**1 Offered at Best Price**

MTI CORPORATION 1700°C ATMOSPHERE FURNACE 0.61 CUFT

1700°C CONTROLLED ATMOSPHERE FURNACE

... other images

Location: Scotia, New York

Unit Price	Unstated
Number of Units	1
Manufacturer	Custom
Model	Controlled Atmosphere
Maximum Temperature	1,700 ºC (3,092 ºF, 1,973 ºK)
Temperature Control
Control Stability	± 1.000 ºC
Heat/Cool Controls
Control Type	Programmable
Interface	RS 232

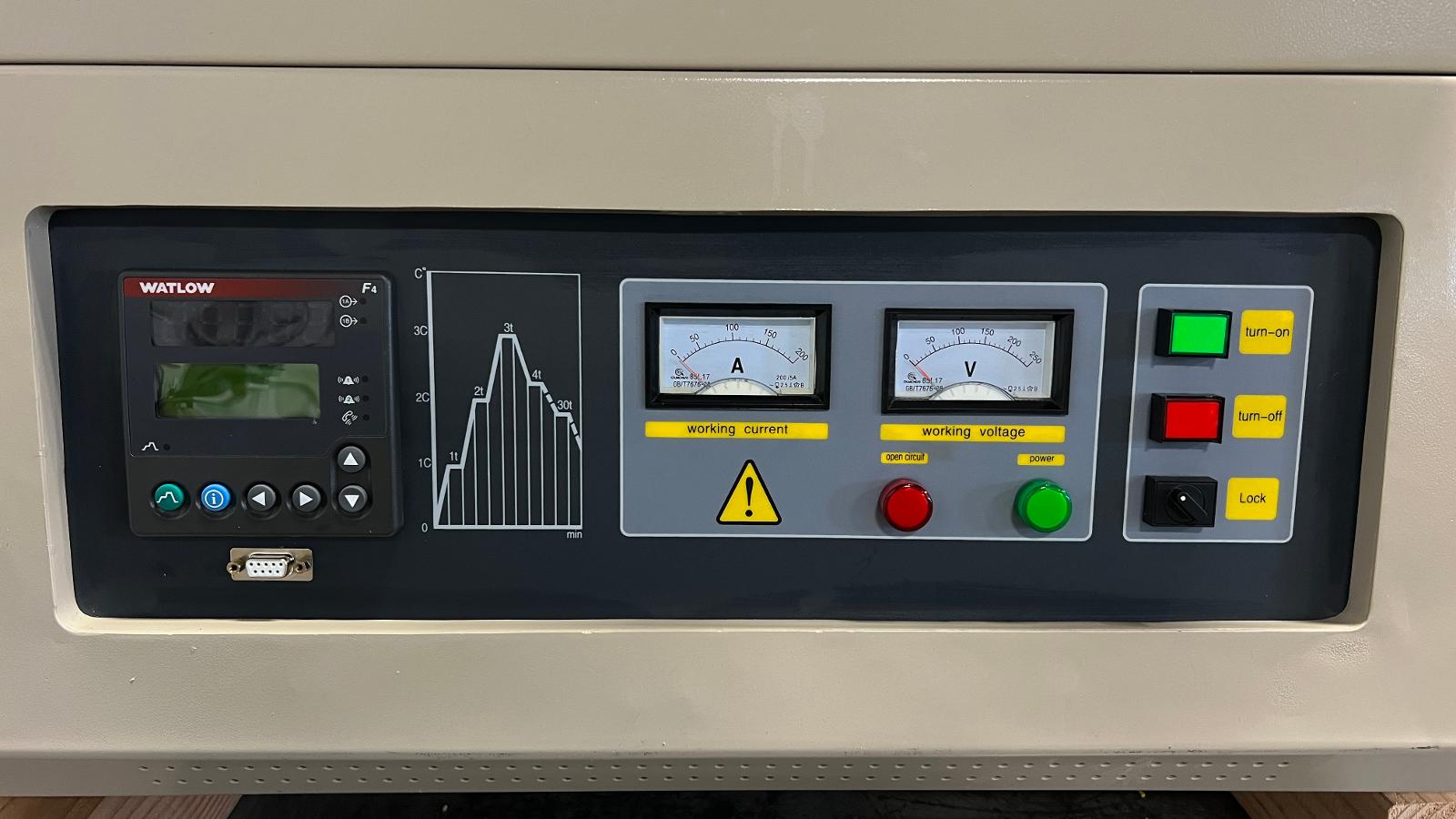

Controller Manufacturer/Model	Watlow F4
External Cooling	Forced Air Cooled
Capacity/Volume Box	0.61 cu ft (0.02 cu m)

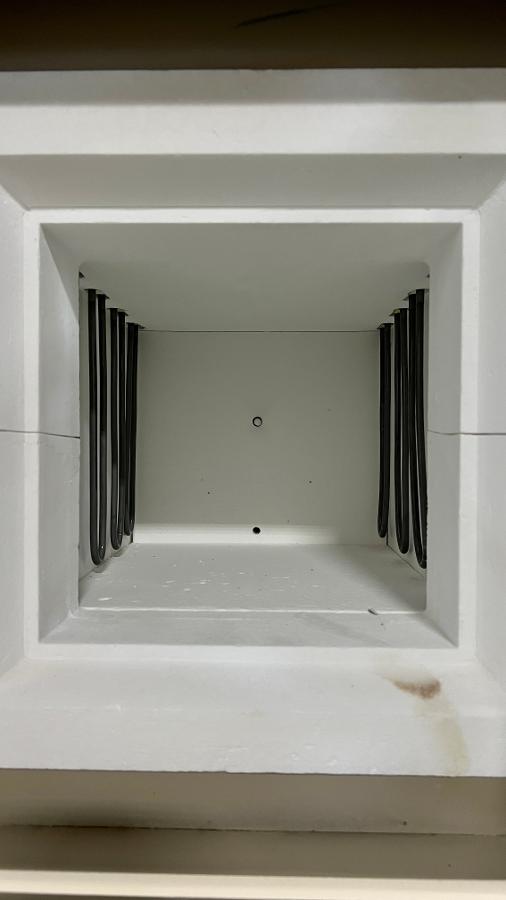

Chamber Size
Width	9.45 in (24.00 cm)
Depth	11.81 in (30.00 cm)
Height	9.45 in (24.00 cm)
Thermocouple Type	Type B
Number of Gas Inputs	2

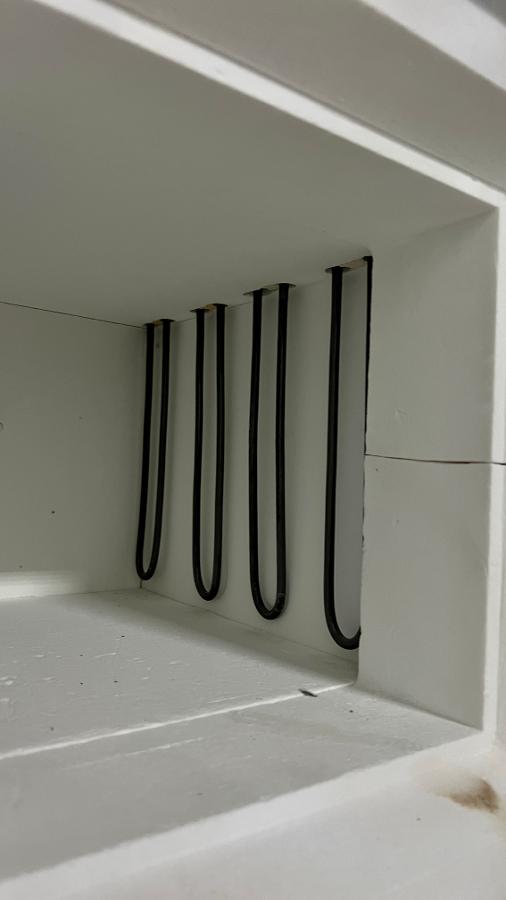

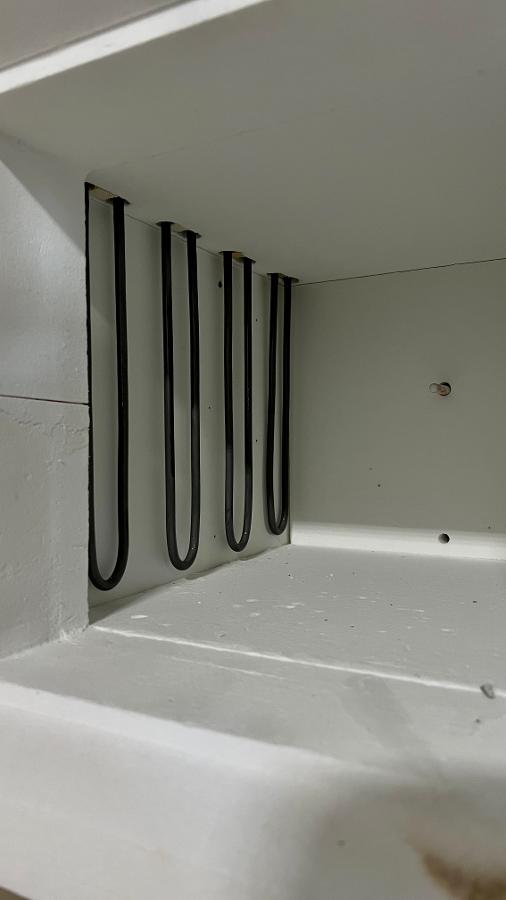

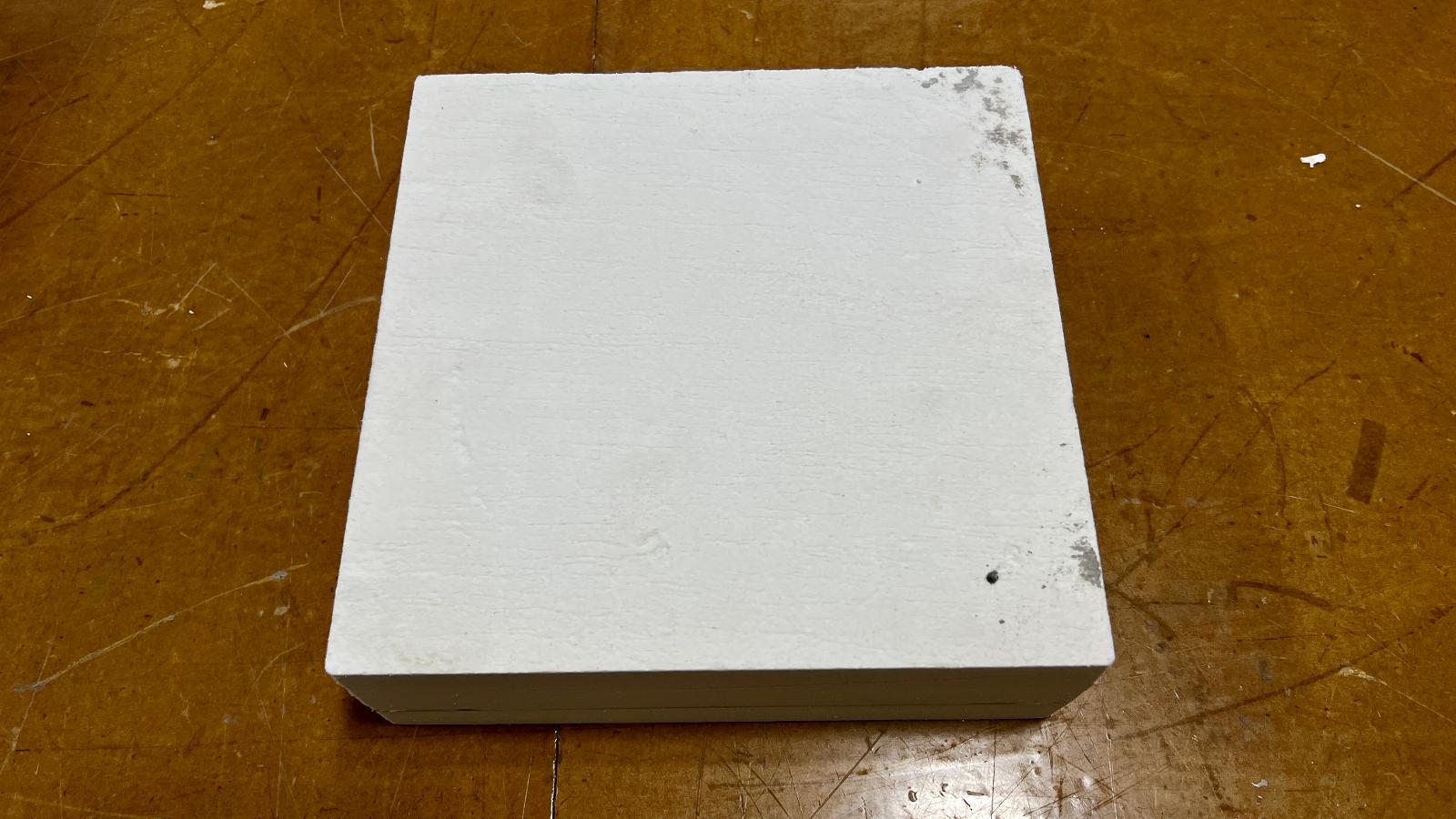

Other Information	1600°C continuous operation 1700°C (3092°F) in air 1650°C (3002°F) in N2 Furnace is currently set for 1600°C maximum temperature in the controller configuration Vacuum pump is not included Evacuation port 3/8" Swagelok Inert gas port 1/4" Swagelok 6x MoSi2 Heating Elements Maximum heating/cooling rate 10°C/min up to 1400°C, 5°C/min 1400-1700°C The refractory block must be installed before closing the door (included) Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating 4 sample profiles preloaded into the controller
Power Requirements	200-240 V 50.0 A 1 Phase
Condition	Excellent

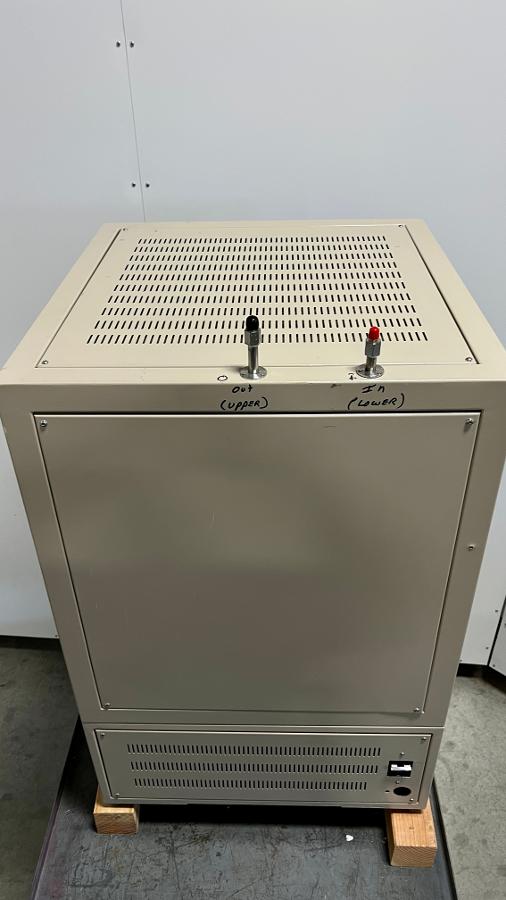

Exterior Dimensions
Width	27.000 in (68.6 cm)
Depth	31.000 in (78.7 cm)
Height	40.500 in (102.9 cm)
Weight	690 lb (313 kg)
