Item ID: 203160

**1 Offered at Best Price**

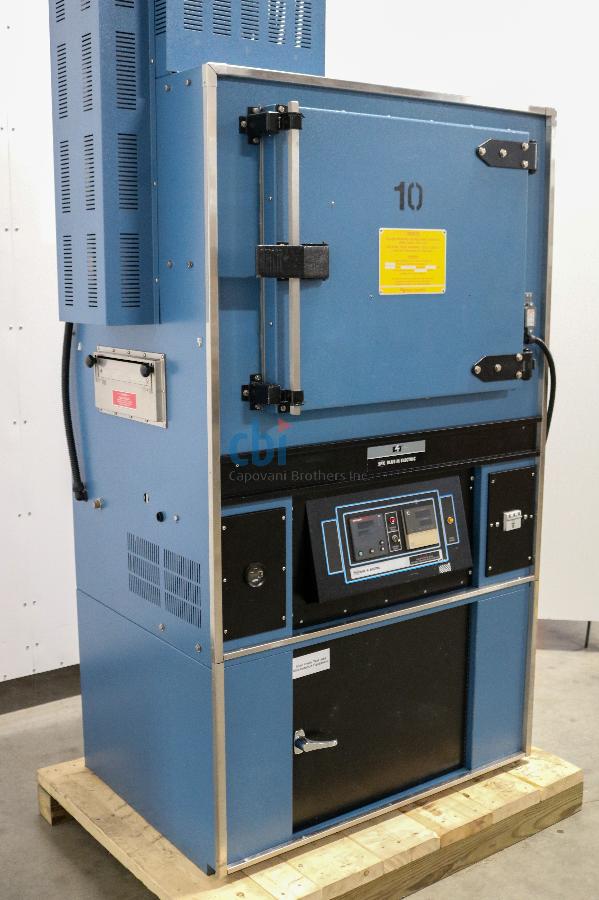

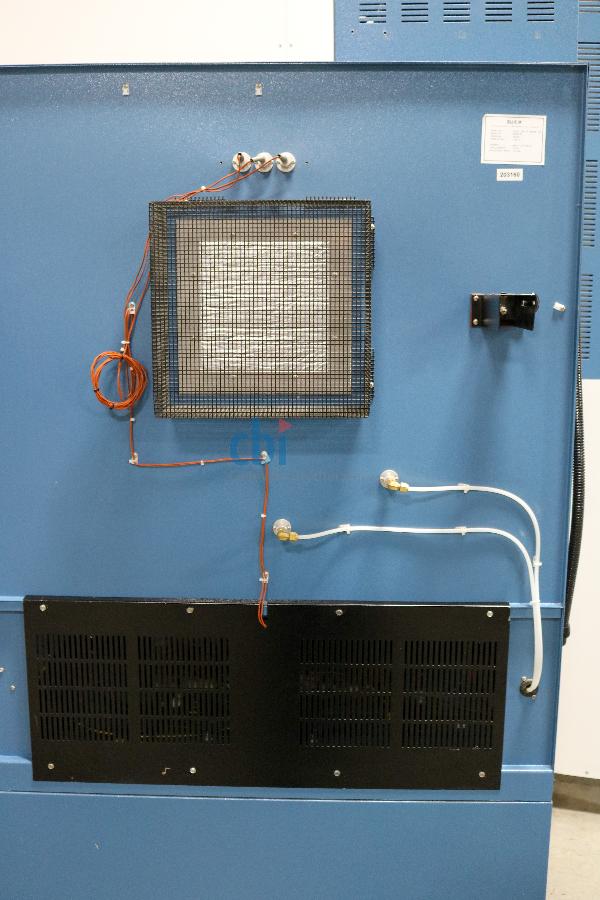

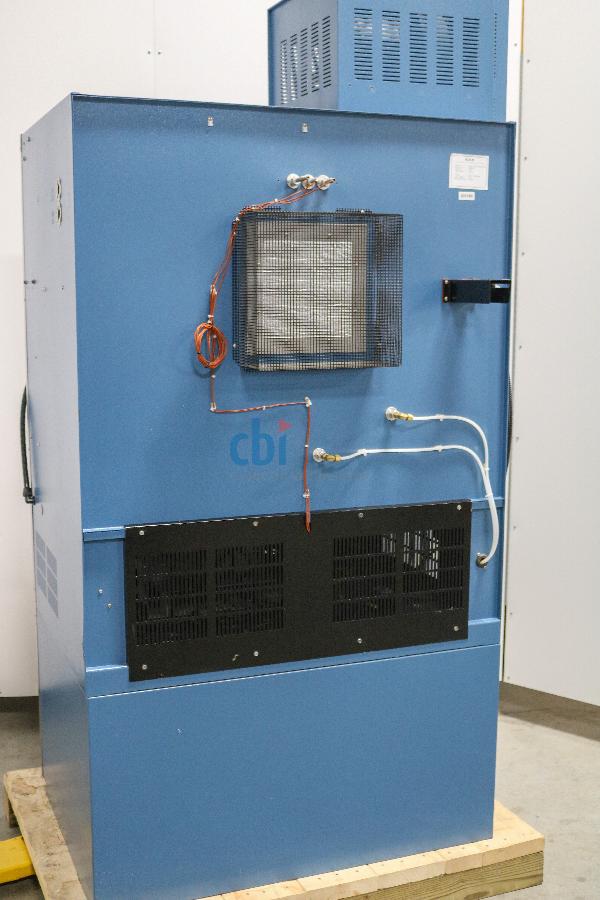

BLUE M CLASS A VOLATILE OVEN 316C

Class A Volatile Oven

... other images

Location: Scotia, New York

Unit Price	Unstated
Number of Units	1
Manufacturer	Blue M
Model	DCSA-256-G-MP550-HP
Description	Class A Volatile Oven
Maximum Temperature	316 ºC (601 ºF, 589 ºK)
Heat/Cool Controls

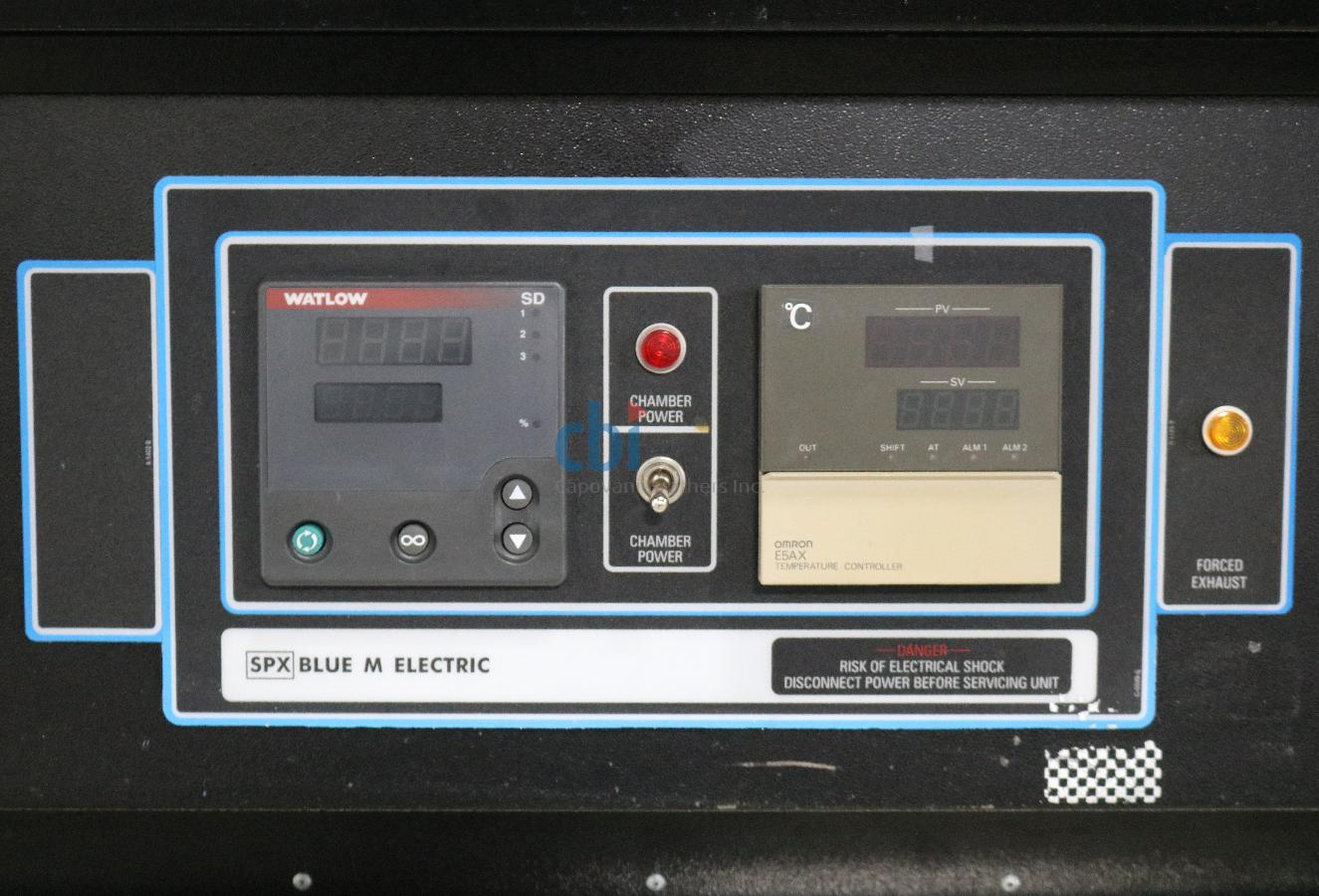

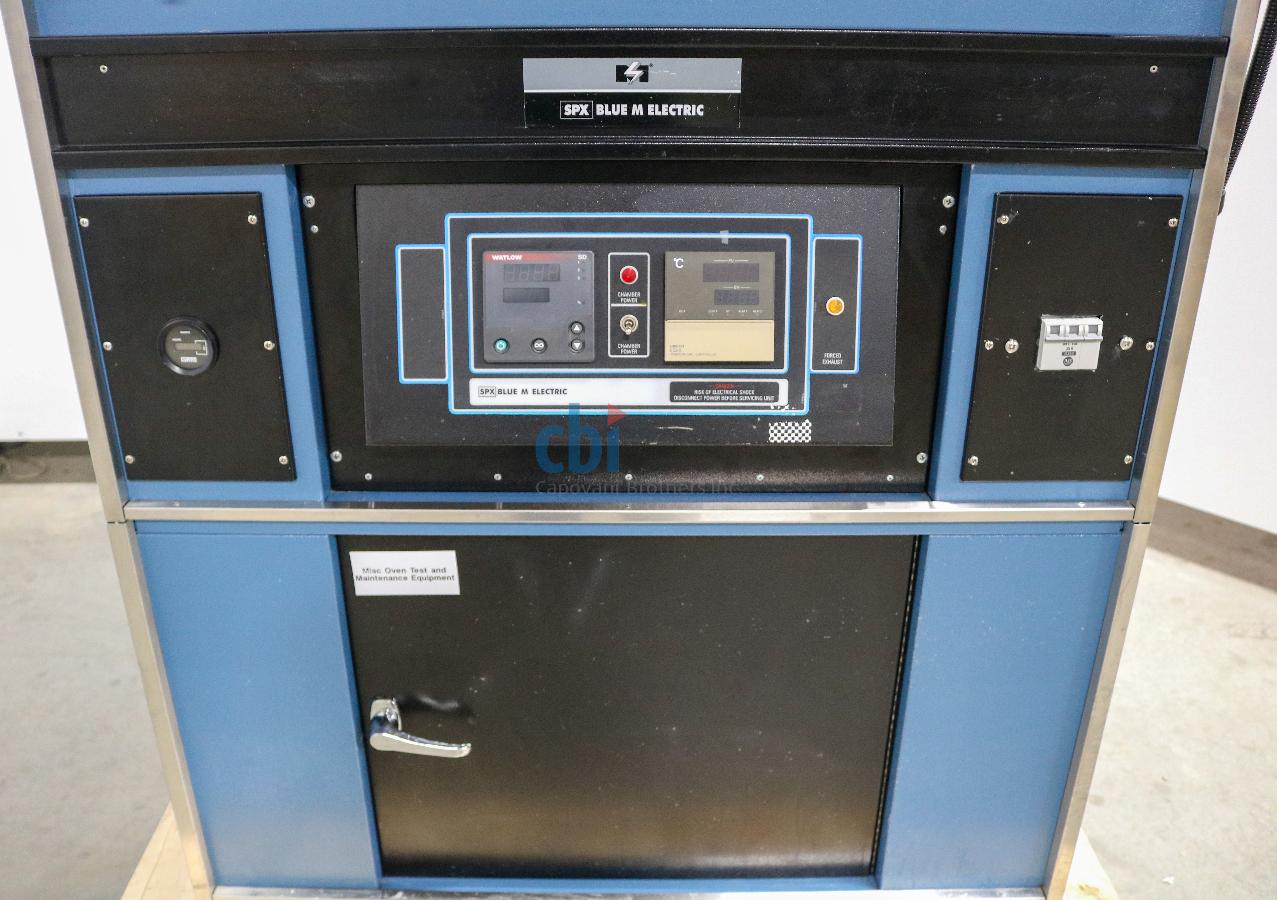

Control Type	Digital Setpoint
Controller Manufacturer/Model	Omron E5AX--A-F
Capacity/Volume Box	5.80 cu ft (0.16 cu m)
Chamber Size
Width	25.00 in (63.50 cm)
Depth	20.00 in (50.80 cm)
Height	20.00 in (50.80 cm)

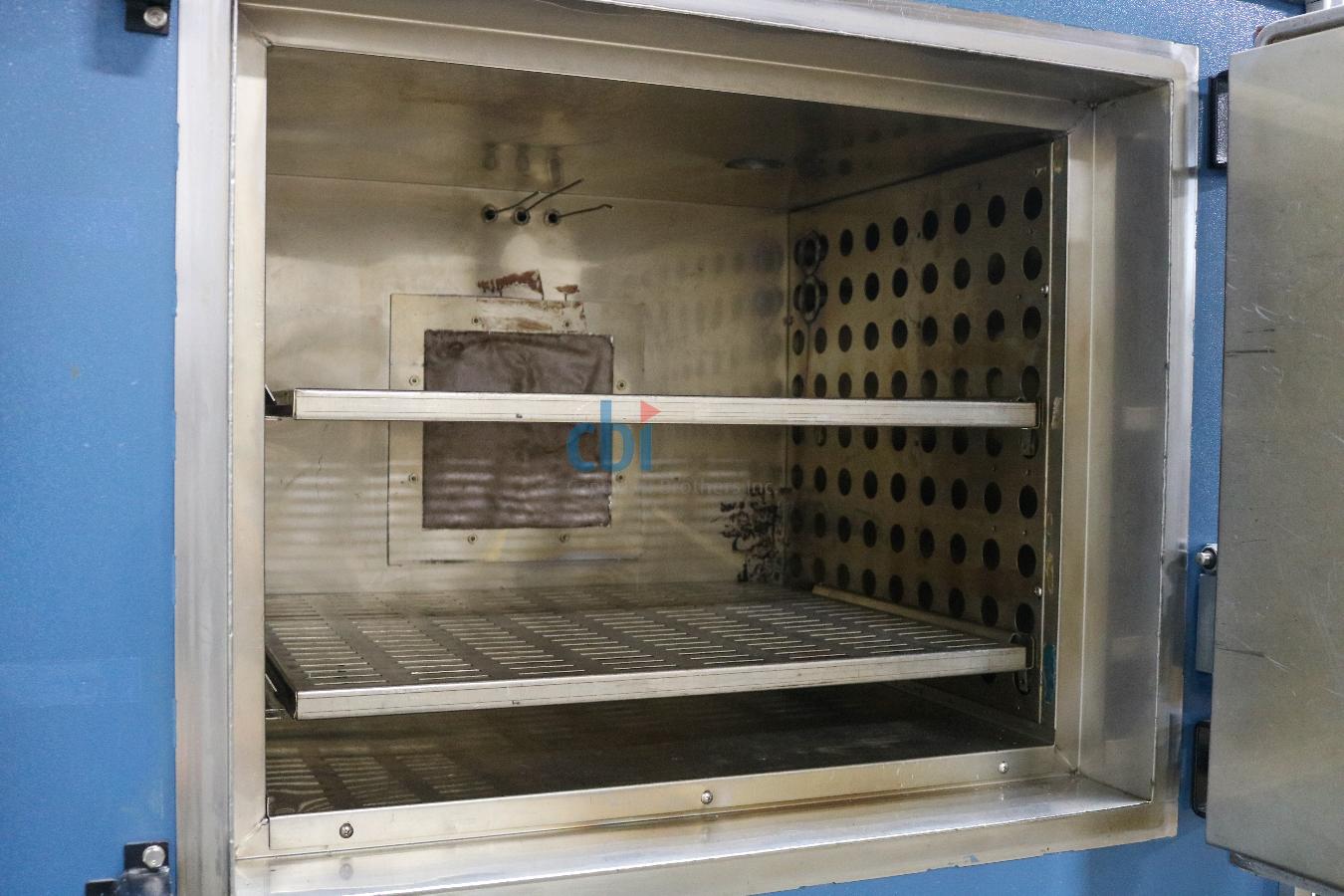

Chamber Characteristics

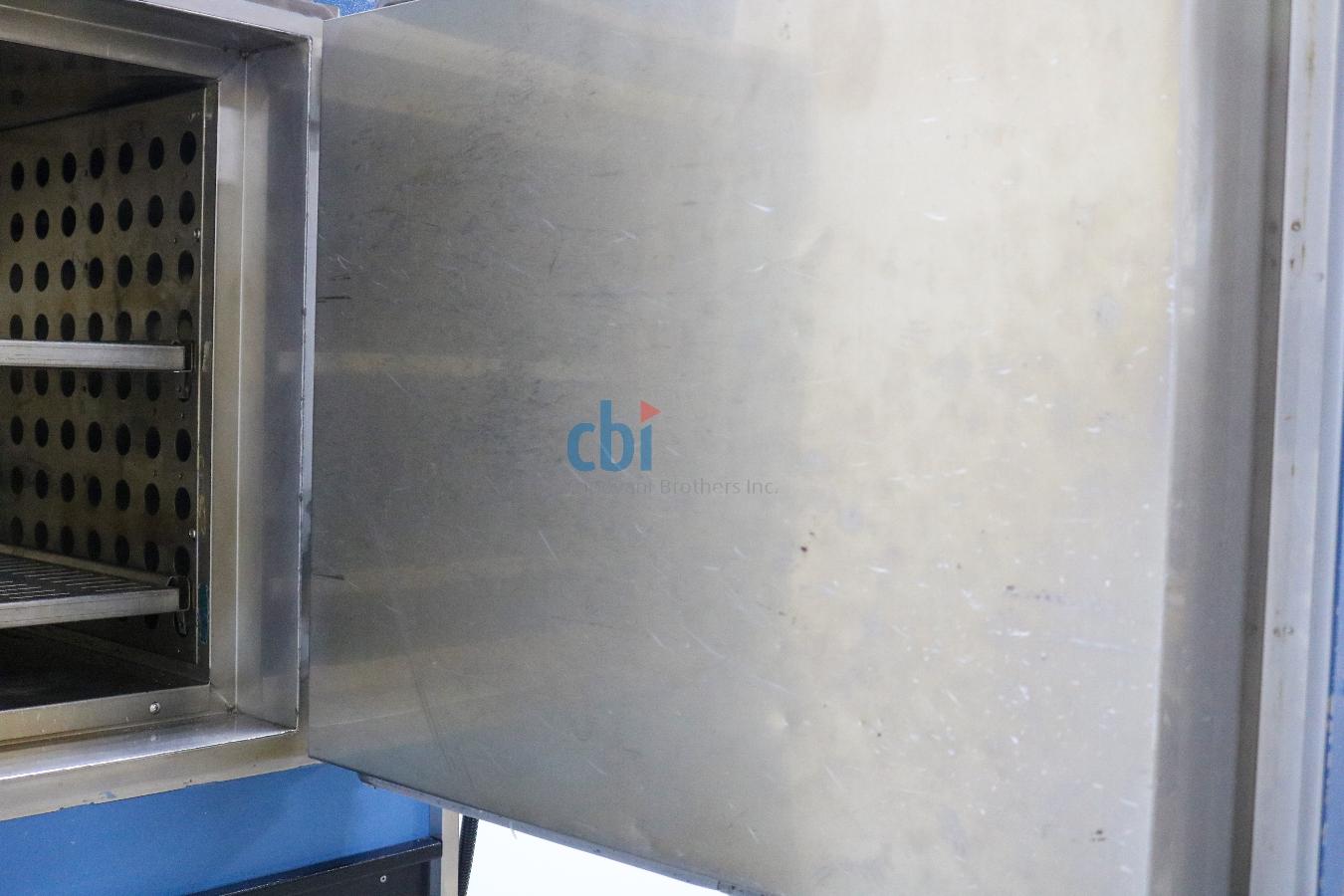

Chamber Construction	Stainless steel
Maximum Number of Shelves	2
Number of Shelves Provided	2

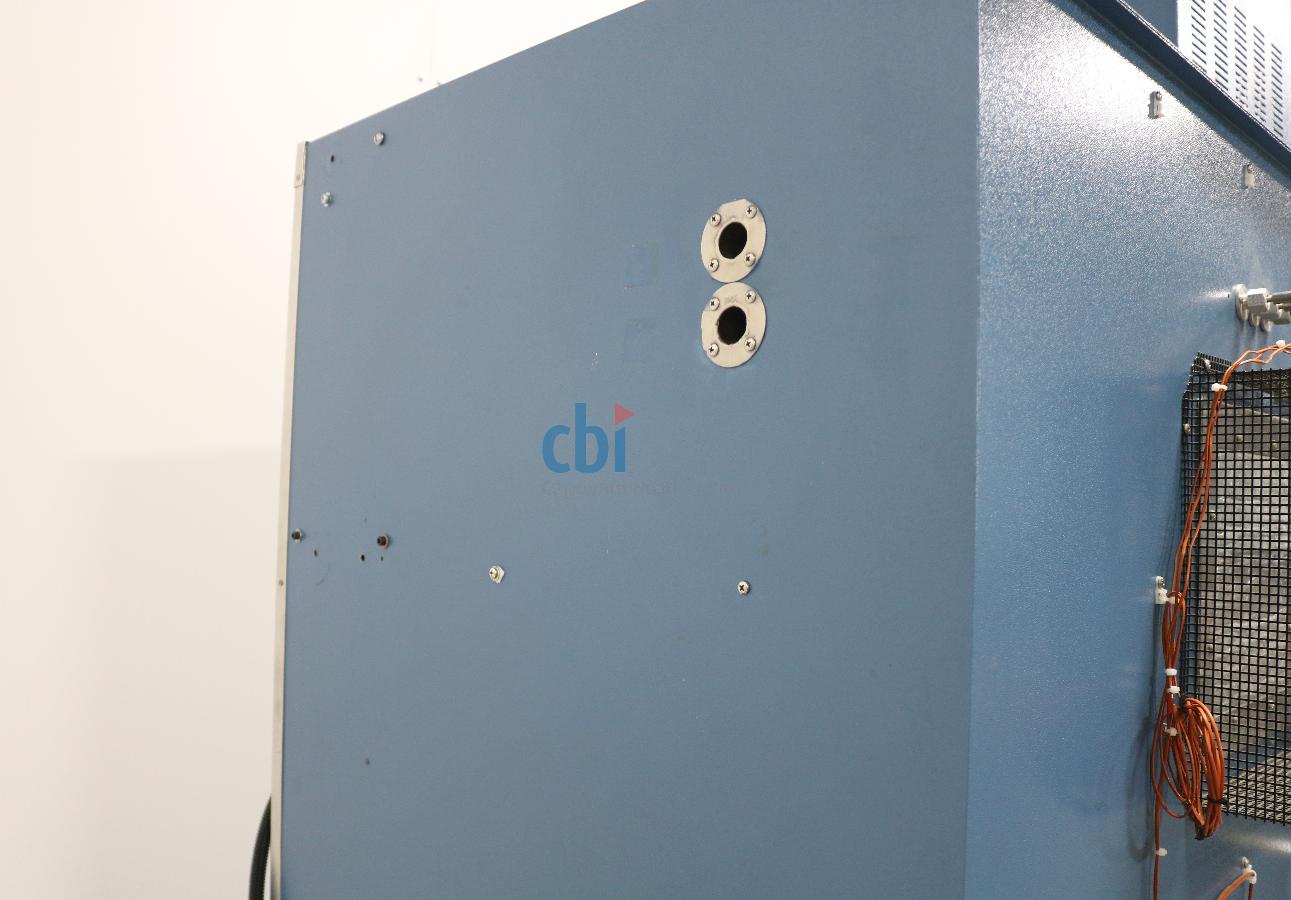

Number and Size of Access Ports	3-1" Access ports 2 on right and 1 on left side
Other Information	Watlow SD control for over temperature. Heating capacity 12-KW Minimum purge time required 1-min Exhaust duct 3" x 7" Type of solvent (Flammable liquid or gas} VM & P naptha or equal. Fire Extinguisher port 2" on top of unit. 25-Amp Main Breaker.
Power Requirements	480 V 16.0 A 60 Hz 3 Phase
Exterior Dimensions
Width	45.000 in (114.3 cm)
Depth	40.000 in (101.6 cm)
Height	83.000 in (210.8 cm)
Weight	675 lb (306 kg)
