Item ID: 190345

**1 Offered at Best Price**

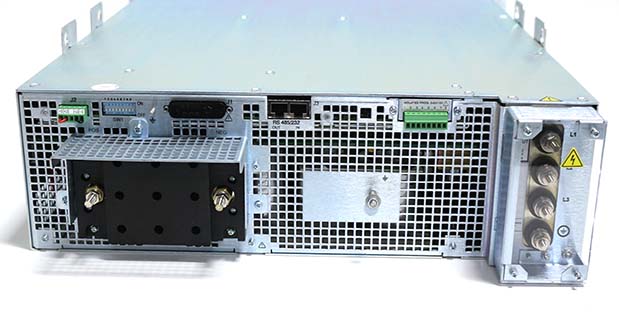

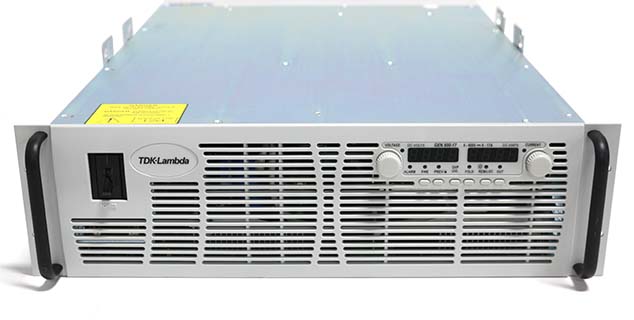

TDK LAMBDA GENESYS DC POWER SUPPLY 600 VOLT 17 AMP 10000 W

Programmable DC Power Supply

... other images

Location: Scotia, New York

Unit Price	Unstated
Number of Units	1
Manufacturer	TDK-Lambda
Model	GEN 600-17-IS510-3P208
Maximum Output Voltage	600.00 Volts
Maximum Output Current	17.00 Amps
Maximum Output Power	10.00 kW
Regulation Modes	Constant Current Constant Voltage

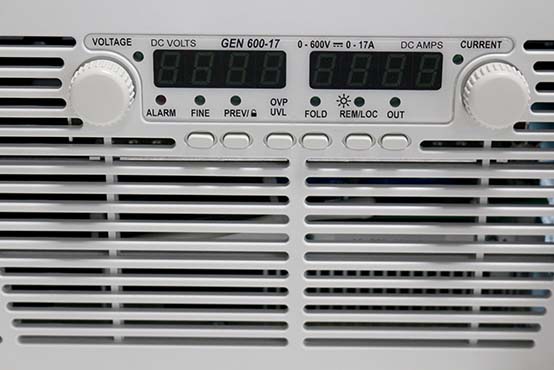

Panel Meters	Digital
Interface	RS 232
Interface 2	RS 485
Control Type	Programmable
External Cooling	Air Cooled

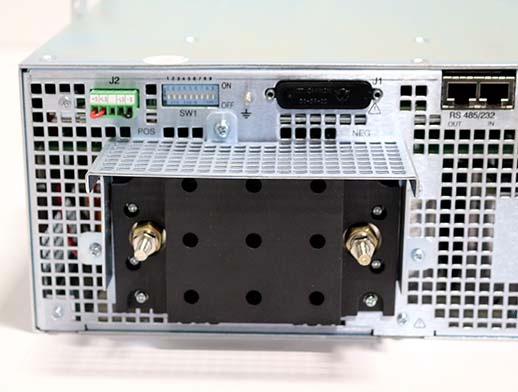

Other Information	P/N: 005301732 Has ISOLATED ANALOG PROGRAMMING OPTION IS510, can be removed, REQUEST removal when ordering if you need to use all J1 pins! When the Isolated Analog Option is installed, do not apply any signals to the non-isolated VPGM and IPGM (J1-9 and J1-10) pins. All other J1 features may be used normally. Refer to Section 4.4 for a description of J1 features. Manual is here: https://product.tdk.com/info/en/products/power/tec_data/ps_system_genesys.html
Extended Description	Details at TDK Lambda Genesys 10kW Specifications.pdf

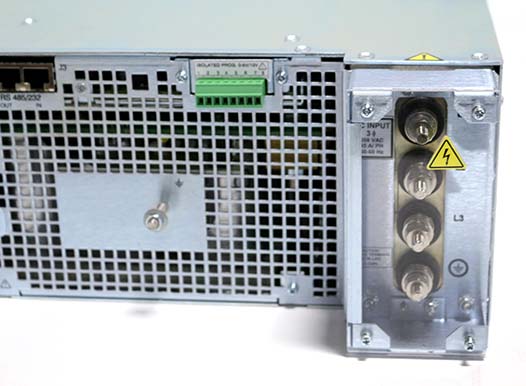

Power Requirements	208 V 45.0 A 47-63 Hz 3 Phase
CE Marked	YES
Exterior Dimensions
Width	19.000 in (48.3 cm)
Depth	25.500 in (64.8 cm)
Height	5.250 in (13.3 cm)
Weight	97 lb (44 kg)
