Item ID: 61966

**1 Offered at Best Price**

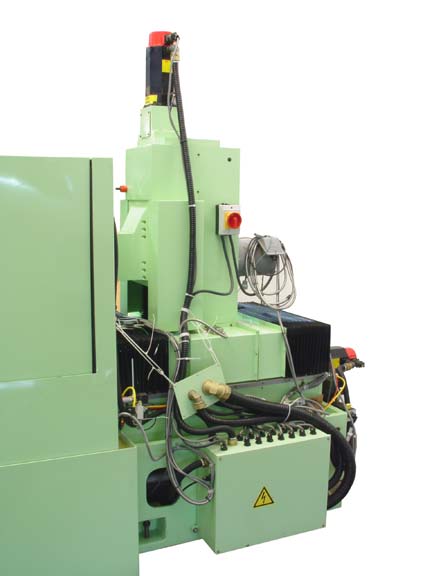

KURODA ASPHERICAL GRINDING SYSTEM

Aspherical Grinding System

Simultaneous Control of the X,Y and Z axis.

... other images

Location: Scotia, New York

Unit Price	Unstated
Number of Units	1
Manufacturer	Kuroda Precisio
Model	SPG-30
Description	Aspherical Grinding System
Plate Speed	16 RPM
Plate Drive	2.50 HP
Wafer Size Range
Maximum	75 mm
Slurry Tank Capacity	2.35 L (0.62 gal, 0.52 Br gal)
Accessories	Optional equipment not included with system Noritake Diamond Wheels Size: 180mm Dia x 20mm T x 50mm H P/N: 247623, 247622, 247624, 282133, 2821991, 995106, 282133 Fanuc A6 Series AC Motors--NEW P/N: A06B-0127-B077/02320--Qty 1 P/N: A06B-0127-B177--Qty 1

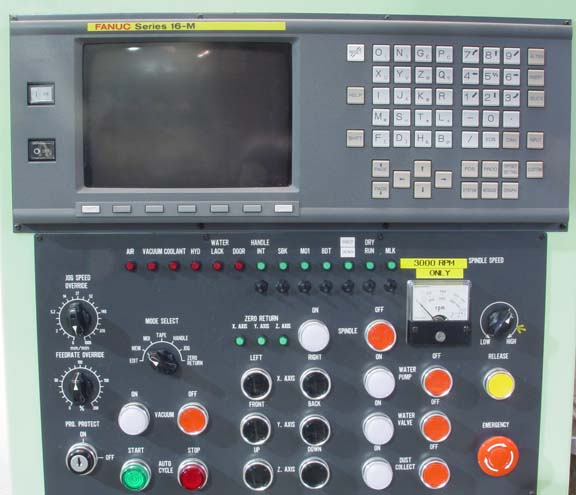

Other Information	Specifications: Workpiece material: Glass Max substrate: 300mm X Axis Specifications: Stroke: 300mm Straightness: 4µm/300mm Feed rate: 1-1000mm/min Least input increment: 0.1µm Control: Totally closed loop by linear scale Y Axis Specifications: Stroke: 300mm Straightness: 4µm/300mm Feed rate: 1-1000mm/min Least input increment: 0.1µm Control: Totally closed loop by linear scale Z Axis Specifications: Stroke: 120mm Straightness: 4µm/120mm Feed rate: 1-1000mm/min Least input increment: 0.1µm Control: Totally closed loop by linear scale Spindle Specifications: Speed: 500-3600rpm, infinitely variable. Spindle motor: 1.5kW, AC200V Grinding wheel: Metal bonded diamond Gridnding wheel size: ø180mm x ø50.8mm x t20mm Control Specifications FANUC 16M NC control unit Automatic operation is performed by PC data NB: For more detailed information please open the "extended description" link above.
Extended Description	Details at Kuroda SPG-30.pdf
Power Requirements	200-208 V 60.0 A 50/60 Hz 3 Phase
Year of Manufacture	2000
Exterior Dimensions
Width	98.425 in (250.0 cm)
Depth	98.425 in (250.0 cm)
Height	92.520 in (235.0 cm)
Weight	8,818 lb (4,000 kg)
