Item ID: 171583

**1 Offered at Best Price**

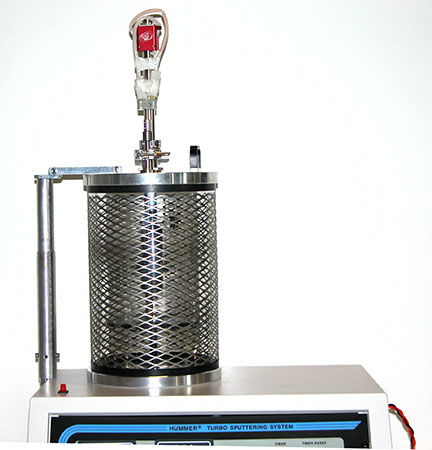

ANATECH HUMMER 6.6T SPUTTER SYSTEM

Sputter System

... other images

Location: Scotia, New York

Unit Price	Unstated
Number of Units	1
Manufacturer	Anatech Ltd
Model	Hummer 6.6T
Coating Method	Sputtering Only
Planar Magnetron Sputter Head	YES
Chamber Size - Cylindrical
Diameter	7.75 in (19.69 cm)
Height	12.00 in (30.48 cm)
Specimen Capacity	12 SEM Samp
Gas Flow Control	Automatic
Vacuum Metering	Yes
Other Information	Intergal Varian Turbo V70 9699359 turbo pump Varian 969507S002 turbo pump controller Motorized stage rotation Target material previously used: Gold,Palladium,Silver (targets not included) Target size: 1.3" (Meivac MAK sputtering source) Power supply:Advanced Energy MDX 500 Stage: 100 mm Dia. Electrode: Water cooled Gas: Argon 5 PSI
Power Requirements	115 V 10.0 A 50/60 Hz 1 Phase
Year of Manufacture	2005
Exterior Dimensions
Width	21.500 in (54.6 cm)
Depth	20.500 in (52.1 cm)
Height	41.000 in (104.1 cm)

Shipping & Handling:

Unless otherwise stated, all items will be fully tested and sold with our standard ninety day warranty, which is described in our terms and conditions.
Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.
Domestic and International shipments: Ex Works, Scotia, NY. All freight cost estimates are for dock to dock service only.
Any additional services, i.e. lift-gate, inside or residential delivery, must be requested at the time of sale and will be billed accordingly.
CBI is not responsible for any damage incurred during shipment. It is the buyer's responsibility to inspect packages for damage and to note any damage on bill of lading.
Please feel free to call us with any questions. (Phone: 518.346.8347, 844-833-8347, Fax: 518.381.9578).

Payment:

Minimum order of $50 required.
We offer terms of net 30 days to all companies that have established credit with Capovani Brothers Inc. and have paid within terms.
All federal, state, local governments and their agencies, as well as institutions of higher learning automatically receive terms.
All other sales, including foreign sales, are prepayment only.
MasterCard, VISA, Discover and AMEX are accepted at sellers discretion.

Domestic Terms and Conditions

International Terms and Conditions

FULL DESCRIPTION of Item 171583

1 Offered at Best Price

ANATECH HUMMER 6.6T SPUTTER SYSTEM

**1 Offered at Best Price**
