Item ID: 147905

**1 Offered at Best Price**

CHA SEC 1000 RAP ELECTRON BEAM EVAPORATOR

Six Pocket Ebeam Gun, (2)Resistance Sources, 6kW Heater Array, 25.5" Bell Jar, Cryo Pumped

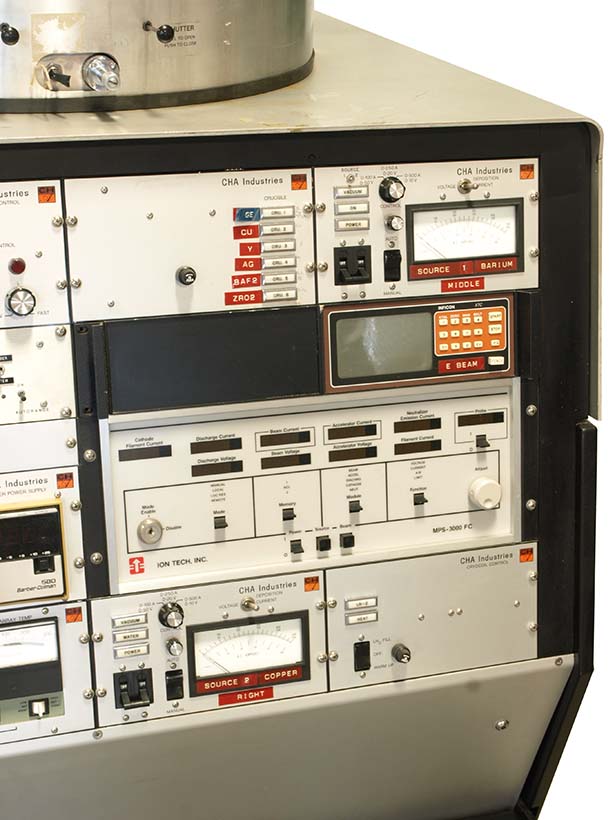

The CHA SEC-1000-RAP high-vacuum EBeam deposition system designed for use in production and research environments.

... other images

Location: Scotia, New York

Unit Price	Unstated
Number of Units	1
Manufacturer	CHA Industries
Model	SEC-1000-RAP
Description	Electron Beam Evaporator
Vacuum System	Cryo Pumped
Load Lock Included	No
E Beam Power Supply
High Voltage Maximum	8 kV
Number of Guns Controlled	1
Lateral/Longitudinal Beam Sweep	Temescal Sweep Control
Electron Source Type	Six Pocket
Crucible Size	15.00 cc (0.92 cu in)

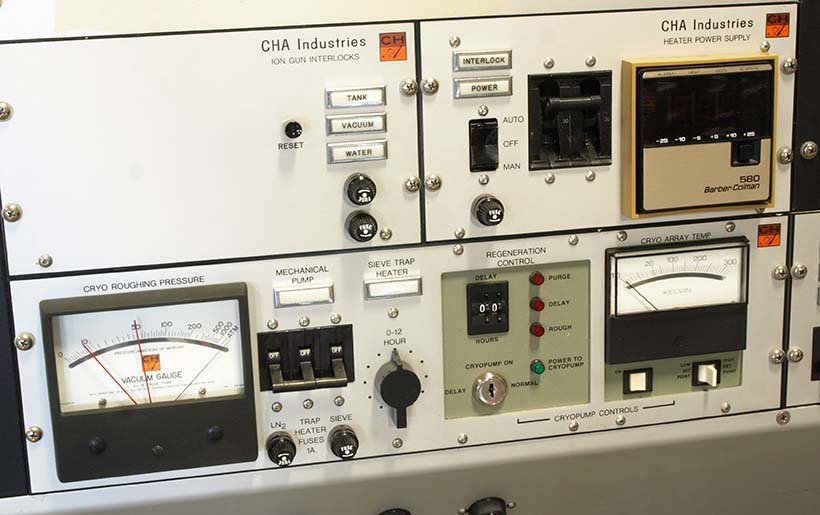

Vacuum System	CTI 10 Cryopump LN2 Cold Trap Model MPT-300 Molecular Sieve Mechanical Pump Trap (100 Watt) CTI 8500 Compressor Edwards E2M40 Mechanical Pump
Gas Inputs	One
Gas Input Control	Other
Substrate Heaters	Yes
Film Thickness Monitor	Yes

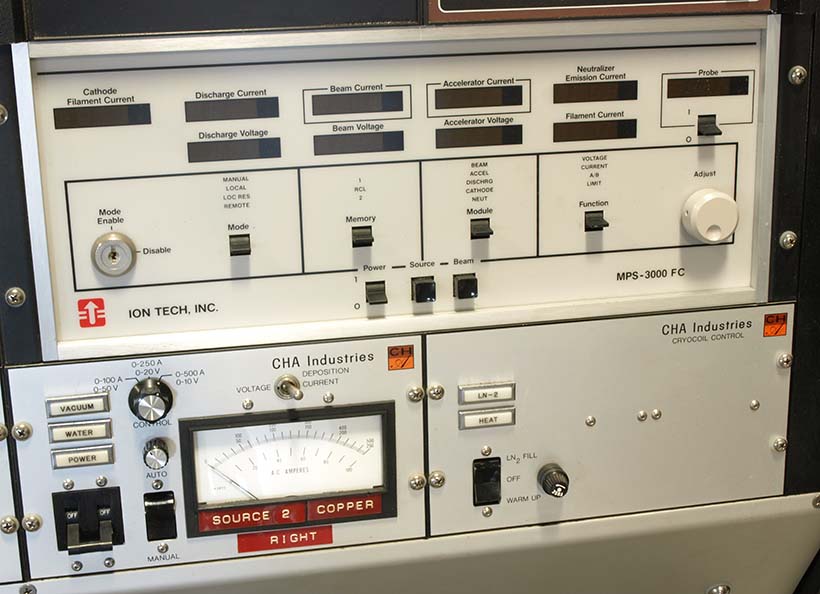

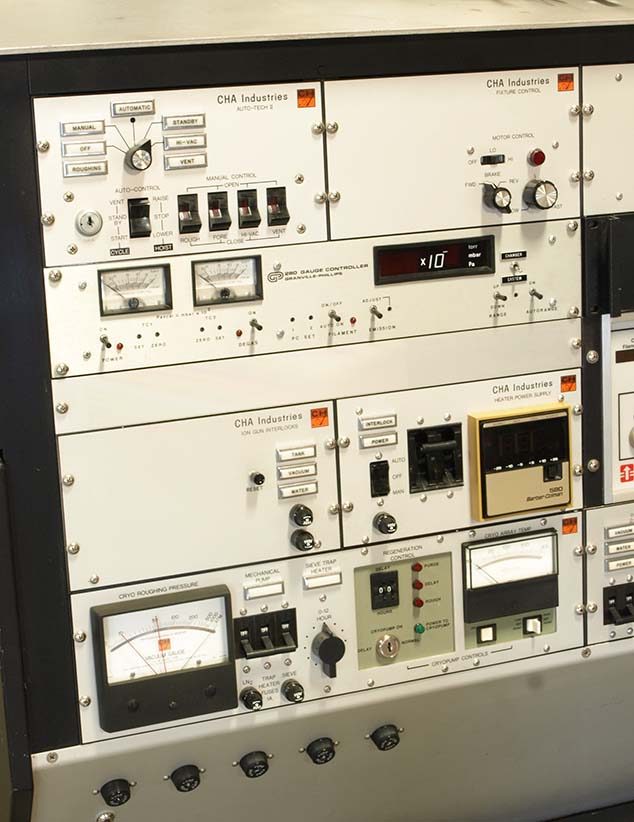

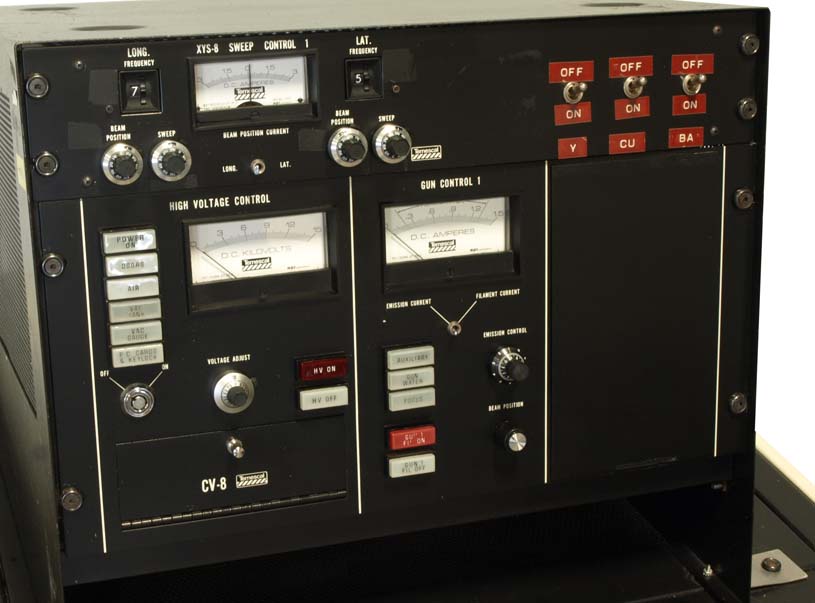

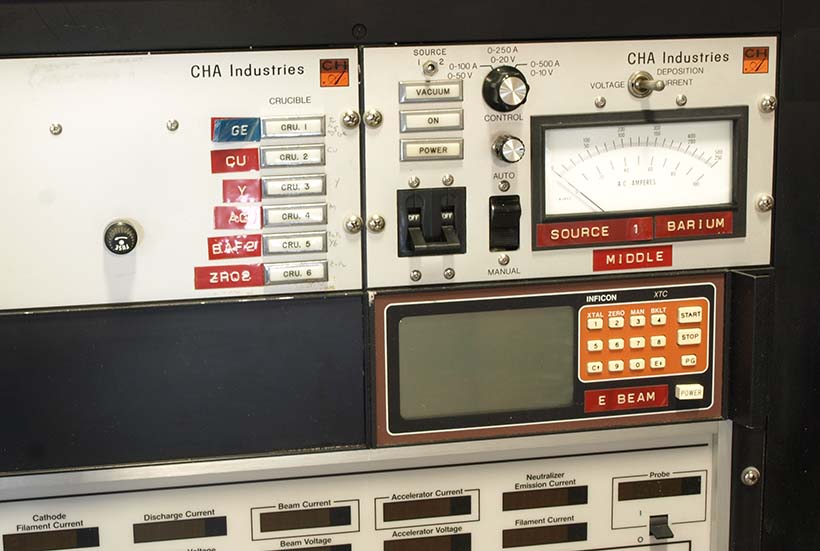

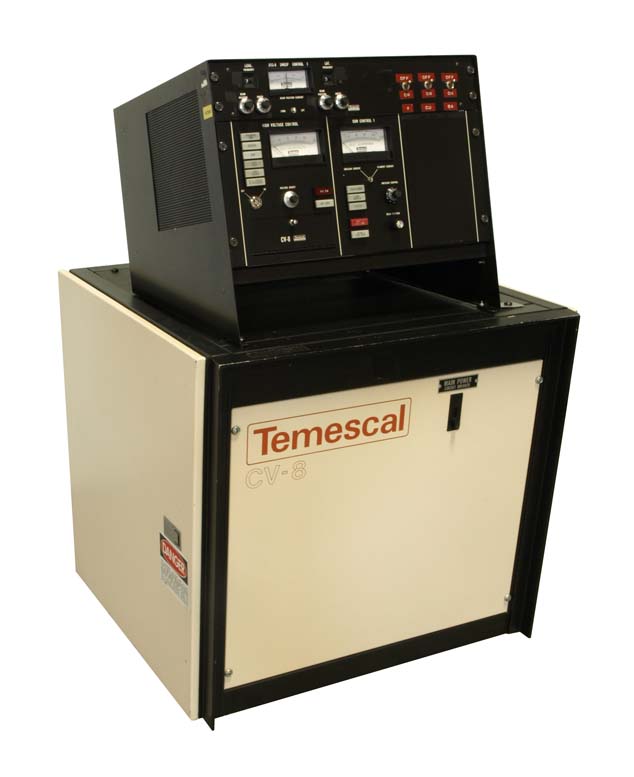

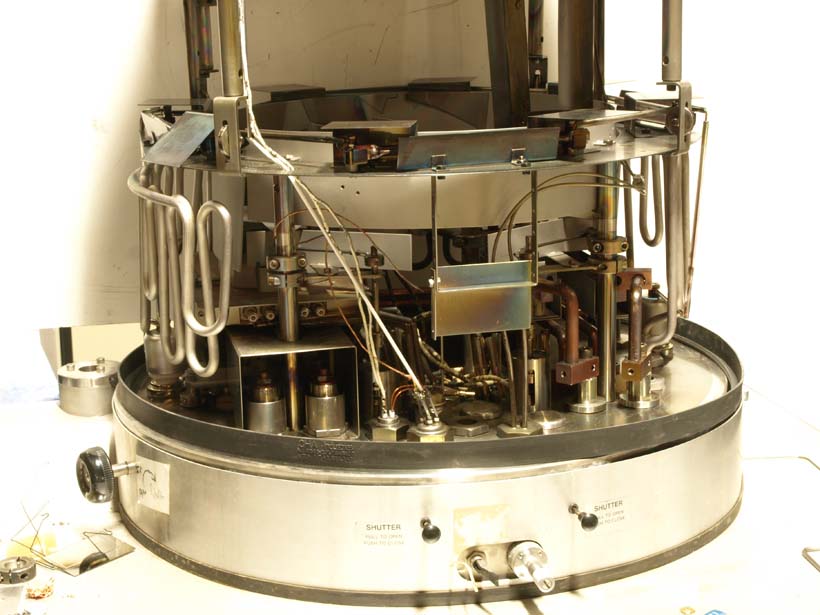

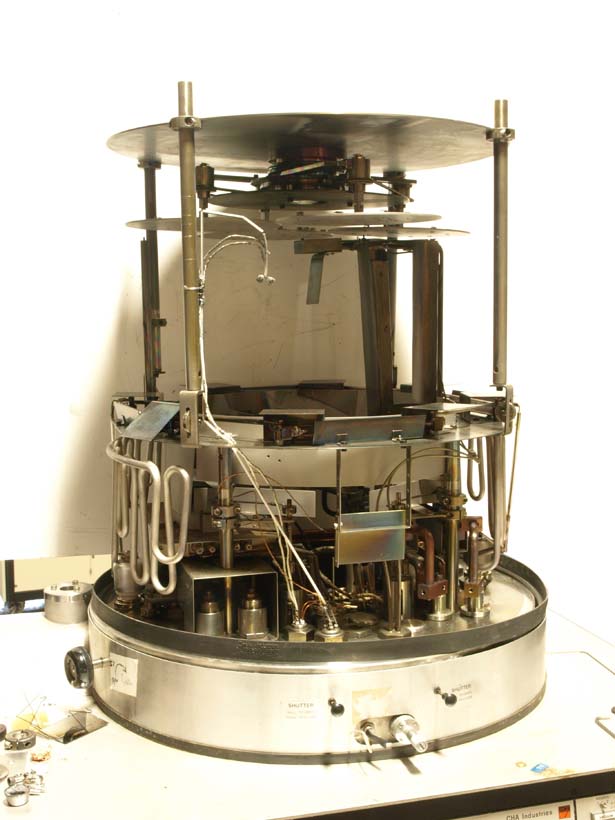

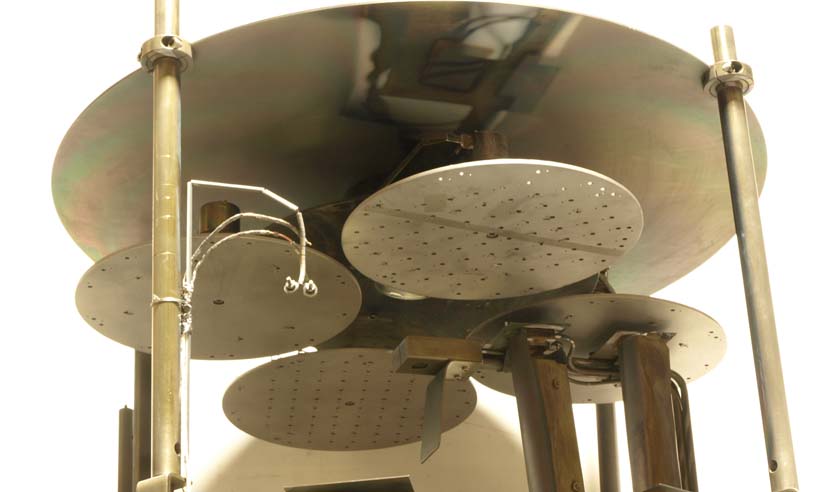

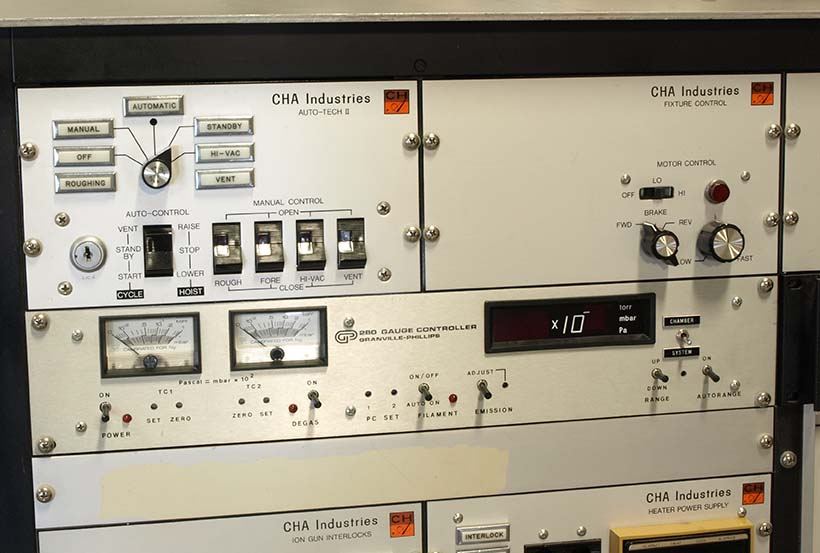

Other Information	Auto-Tech II Valve Sequence Control Motorized Hoist Assembly, 1/2HP Six Pocket Ebeam Source--Temescal STIH-270-2MB6 Inficon XTC Deposition Process Controller, Two Crystals Installed Temescal CV 8 Ebeam Power Supply, 8kV output 6kW Substrate Heater Supply w/ 6kW Heater Array (2) Single Resistance Sources w/ 2kW Power Supply 8.5" Dia. Flat Plate Planetary Fixturing With Spring Clip Specimen Retainers--Temescal Series TP-2 25.5" Stainless Steel Bell Jar , Water Cooled, (1) Viewport, (2) 2-3/4" CF Flanges Manual Shutter Assembly Manual Pocket Rotation Serpentine Cryocoil Assembly NB: The ION Tech power supply shown in photos is NOT included.
Power Requirements	120/208 V 110.0 A 60 Hz 3 Phase
Exterior Dimensions
Width	43.000 in (109.2 cm)
Depth	48.000 in (121.9 cm)
Height	96.000 in (243.8 cm)
Weight	1,684 lb (764 kg)

Shipping & Handling:

Unless otherwise stated, all items will be fully tested and sold with our standard ninety day warranty, which is described in our terms and conditions.
Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.
Domestic and International shipments: Ex Works, Scotia, NY. All freight cost estimates are for dock to dock service only.
Any additional services, i.e. lift-gate, inside or residential delivery, must be requested at the time of sale and will be billed accordingly.
CBI is not responsible for any damage incurred during shipment. It is the buyer's responsibility to inspect packages for damage and to note any damage on bill of lading.
Please feel free to call us with any questions. (Phone: 518.346.8347, 844-833-8347, Fax: 518.381.9578).

Payment:

Minimum order of $50 required.
We offer terms of net 30 days to all companies that have established credit with Capovani Brothers Inc. and have paid within terms.
All federal, state, local governments and their agencies, as well as institutions of higher learning automatically receive terms.
All other sales, including foreign sales, are prepayment only.
MasterCard, VISA, Discover and AMEX are accepted at sellers discretion.
