Item ID: 140403

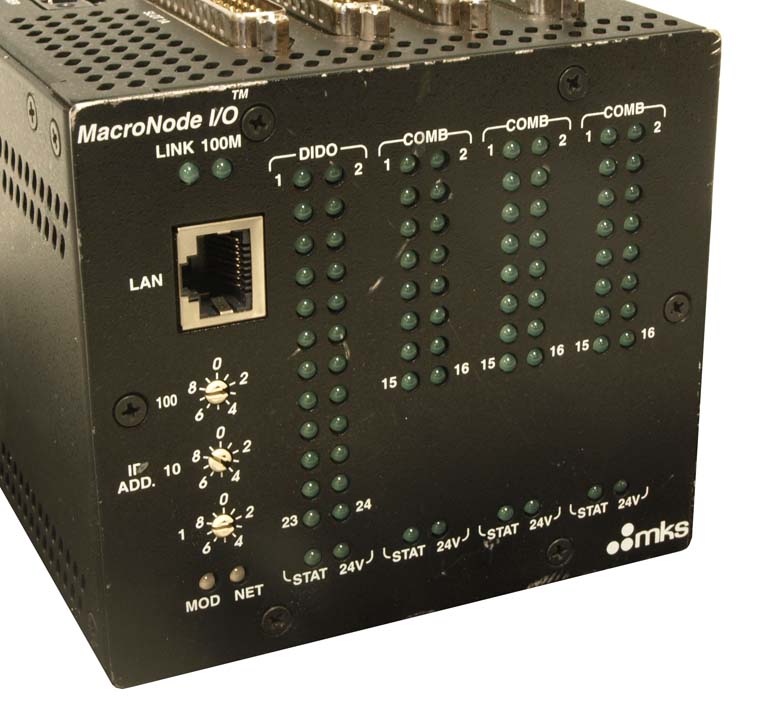

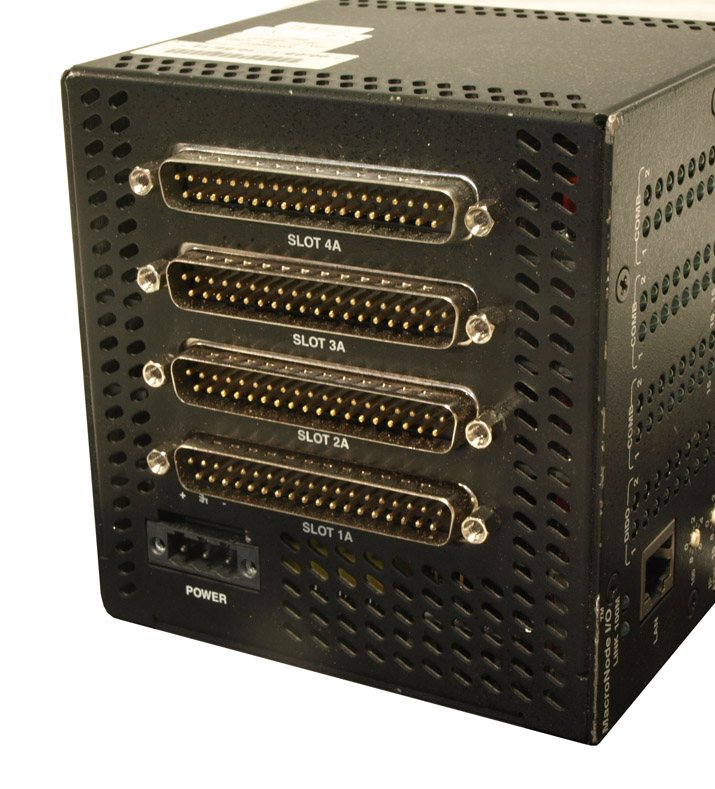

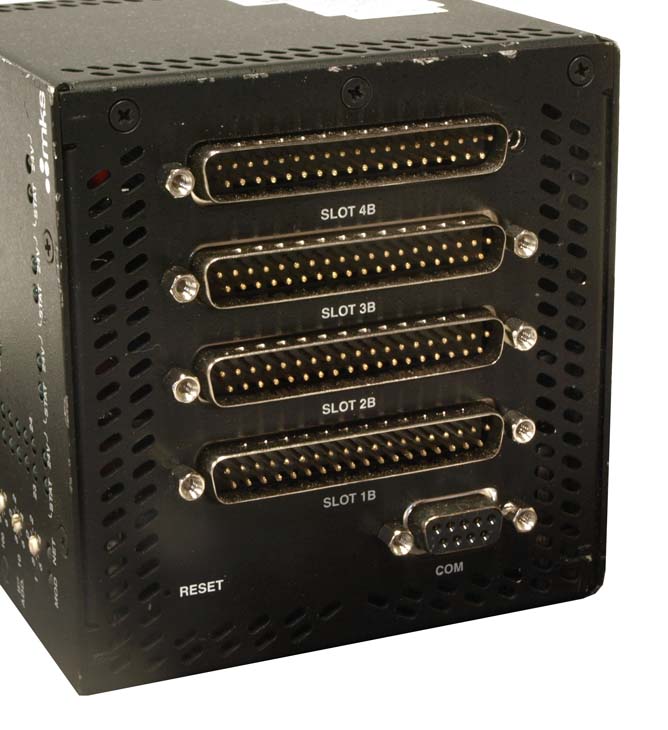

1 Offered at Best Price MKS INSTRUMENTS, INC. COMPACT NETWORK I/O Compact Network I/O   ... other images

Location: Scotia, New York

Unit Price	Unstated
Number of Units	1
Manufacturer	MKS Instruments
Model	Macronode I/O
Description	Compact Network I/O
Other Information	Ethernet,RJ45 with Modbus/TCP Four slot: #1: DIDO #2: COMBO #3: COMBO #4: COMBO Model # AS00969-01 MacroNode™ Dimensions 4"H x 4"W x 1.5"D plus 0.7" per I/O slot I/O Connector 37-pin male D-sub Ethernet Connector 100 BaseT, RJ45 with EMI filter or Fiberoptic connector RS-232 Connector TXD, RXD; DB9 connector Weight 600g (1.32 lb) Operating Temperature 0 to +55C Storage -40 to +85C Humidity 5 to 95% non-condensing BUS Interface Ethernet - Modbus/TCP or Ethernet/IP; EtherCAT; DeviceNet Front Panel Indicators Network Status, Module Status, LINK, 100MB Rotary Switches IP address, operating mode (MacID and Rate for DeviceNet models) Input Powered from I/O connector +24VDC@120 mA Isolation Choke Filtering Card Specifications DIDO Card Number of Digital I/O 24 points (input or output) Digital Input Current Sinking: Active low - 1.5 mA min Current Sourcing: Active high - 1.5 mA min Digital Output Current Sinking: Active low, 200 mA max/channel Current Sourcing: Active high, 200 mA max/channel Current Max: 750 mA per 6 DO AIAO Card Analog Input 16 single-ended points (8 in differential mode) 14 bit Range (-10 to +10V) Analog Output 8 single-ended points 12 bit Range (-10 to +10V) 5mA/channel into a 2 KO load COMBO Card Number of Digital I/O 16 points (input or output) Digital Input Current Sinking: Active low - 1.5 mA min Current Sourcing: Active high - 1.5 mA min Digital Output Current Sinking: Active low, 200 mA max/channel Current Sourcing: Active high, 200 mA max/channel Current Max: 750 mA per 6 DO Analog Input 8 single-ended points (4 in differential mode) 14 bit Range (-10 to +10V) Analog Output 2 differential points 12 bit Range (-10 to +10V) 5mA/channel into a 2 KO load
Exterior Dimensions
Width	4.250  in  (10.8 cm)
Depth	4.000  in  (10.2 cm)
Height	4.250  in  (10.8 cm)
Weight	3  lb  (1 kg)

OFFERED BY:

(click name below to visit its website directly)
Capovani Brothers Inc.
Scotia , New York
1.518.346.8347



Shipping & Handling:

Unless otherwise stated, all items will be fully tested and sold with our standard ninety day warranty, which is described in our terms and conditions.
Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.
Domestic and International shipments: Ex Works, Scotia, NY. All freight cost estimates are for dock to dock service only.
Any additional services, i.e. lift-gate, inside or residential delivery, must be requested at the time of sale and will be billed accordingly.
CBI is not responsible for any damage incurred during shipment. It is the buyer's responsibility to inspect packages for damage and to note any damage on bill of lading.
Please feel free to call us with any questions. (Phone: 518.346.8347, 844-833-8347, Fax: 518.381.9578).



Payment:

Minimum order of $50 required.
We offer terms of net 30 days to all companies that have established credit with Capovani Brothers Inc. and have paid within terms.
All federal, state, local governments and their agencies, as well as institutions of higher learning automatically receive terms.
All other sales, including foreign sales, are prepayment only.
MasterCard, VISA, Discover and AMEX are accepted at sellers discretion.

Domestic Terms and Conditions

International Terms and Conditions



Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York   Make OFFERSend an INQUIRY
